Claas LEXION 540 C Repair Manual Supplement

00 0290 380 0 - ERG RHB LEXION 600-510 - 01/09 19
4 Drives
4.1 Drive belts / drive chains
82707
91460

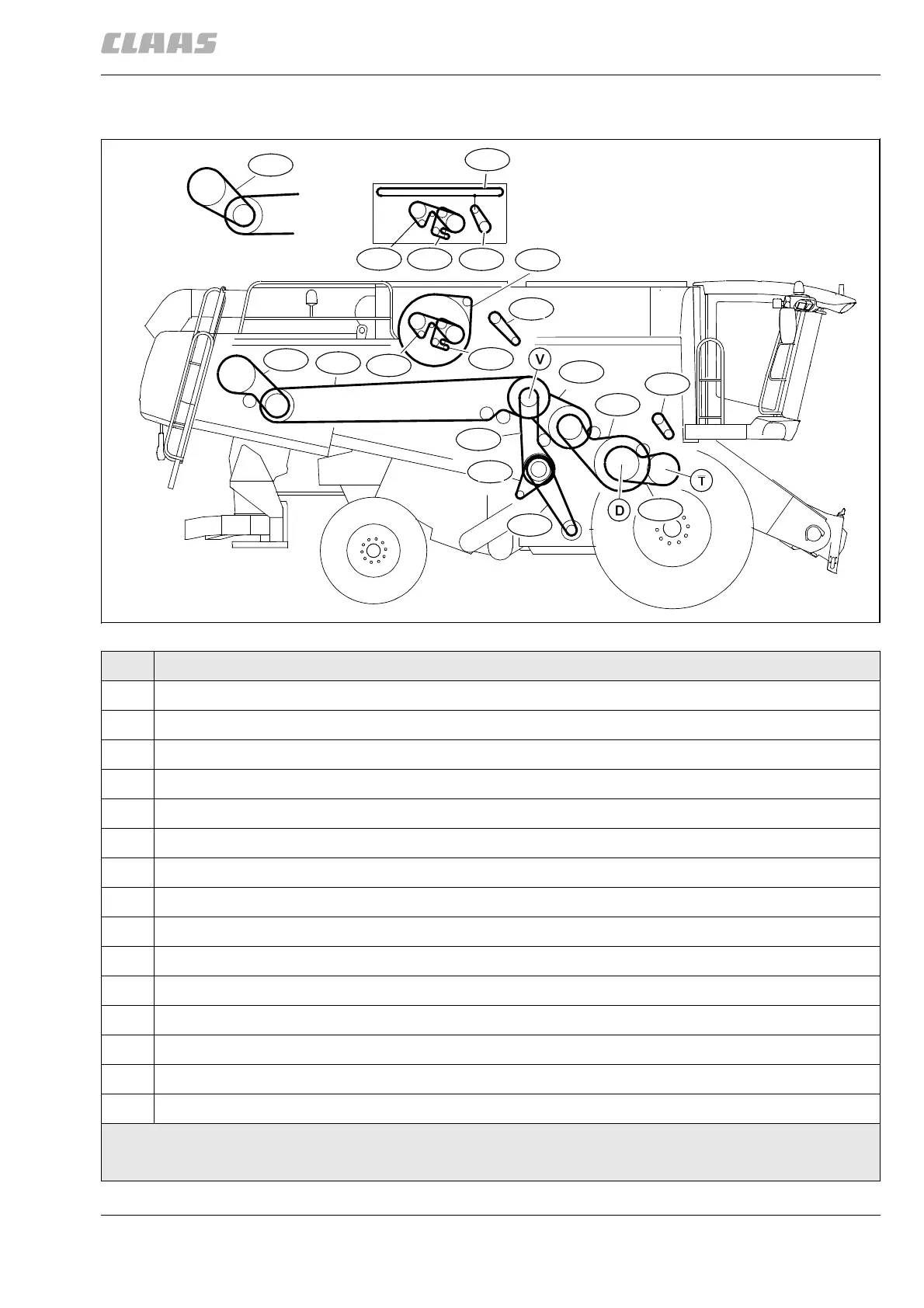

4.1.4 Drive diagram, right side (LEXION 580 with standard cleaning system)
10306
4
R40
R41
R42
R46
R52
R53
R48
K55
R54
K56
R51
R60
R61
R60R61
K62
R57
R63
Designation
R40 Axial rotor step drive, step 2
R41 Axial rotor variable-speed drive, step 2
R42 Axial rotor drive, step 1
R46 Fan drive, step 1
R48 Fan variable-speed drive, step 2
R51 Rotary chaff screen suction blower drive
R52 Threshing mechanism variable-speed drive
R53 Threshing drum drive
R54 Accelerator drive
K55 Returns auger drive
K56 Grain tank filler auger drive
R57 Rotary chaff screen drive
R60 A/C compressor drive and water pump drive
R61 Three-phase alternator drive, fan drive
K62 Planar rotary chaff screen suctioning system nozzle
D = Threshing drum, V = main intermediate drive shaft, T = Accelerator,
R = Drive belts, K = Drive chains
