Claas LEXION 540 C Repair Manual Supplement

14 00 0290 380 0 - ERG RHB LEXION 600-510 - 01/09
4 Drives
4.1 Drive belts / drive chains
82707
4 Drives
4.1 Drive belts / drive chains
15176

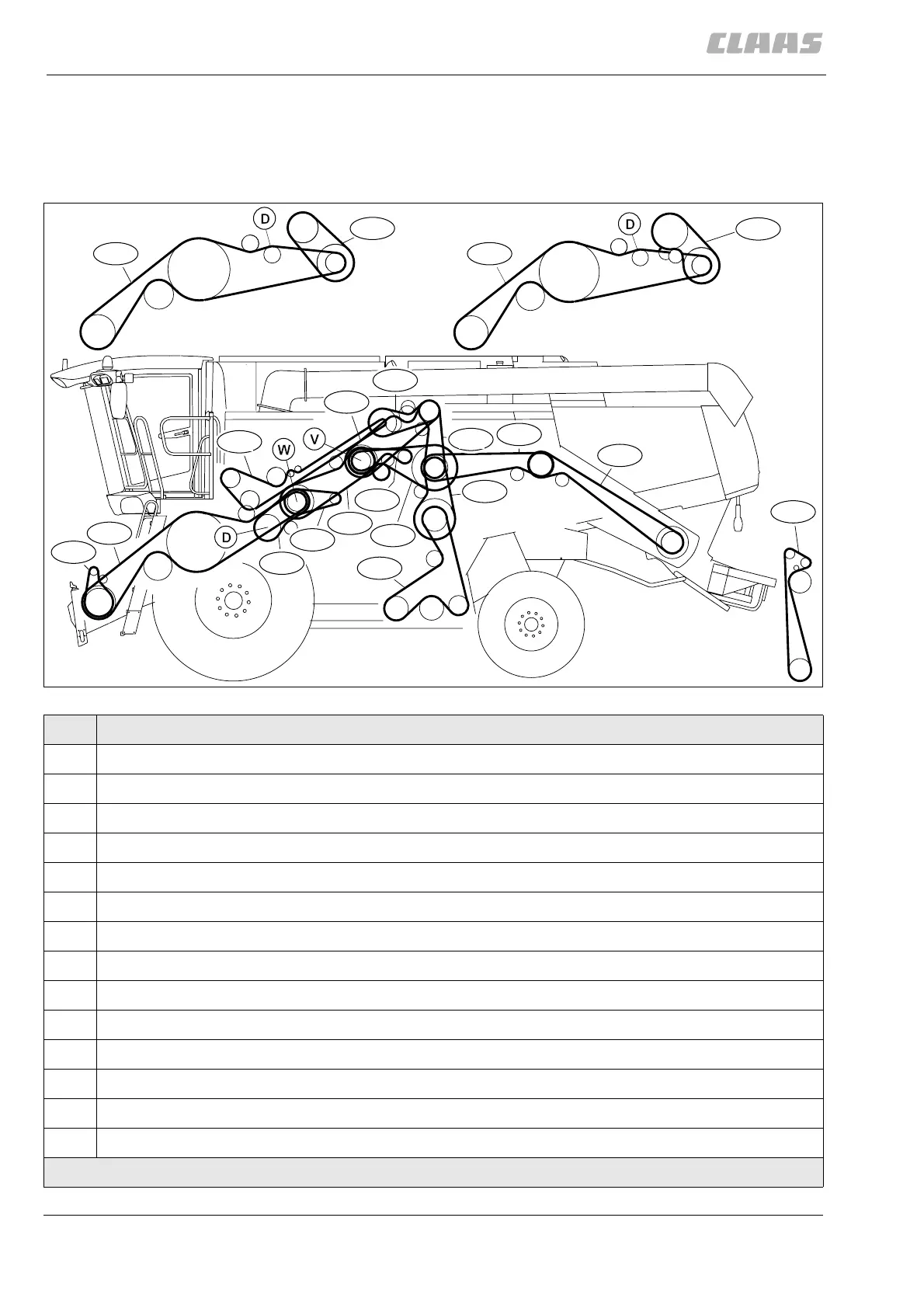

4.1.1 Drive diagram, left side (LEXION 600 with JET STREAM cleaning system)
6200
1
R1
R2
R3
R4
R6
R7
R8
R10
R12
R13
R14
R17
R18
R21
R25
K11
R9
R5
R26
R3
Designation
R1 Feed rake conveyor suction blower drive
R2 Front attachment drive, 2nd step (without variable-speed drive)
R3 Front attachment drive, 3rd step (with variable-speed drive or step drive)
R4 Front attachment variable-speed drive, 2nd step
R5 Impeller drive
R6 Reel hydraulic pump drive
R7 Front attachment drive, 1st step
R8 Straw spreader, chaff spreader and radial spreader hydraulic pump drive
R9 Threshing mechanism drive
R10 Grain tank unloading drive, 1st step
K11 Grain tank unloading drive, 2nd step
R12 Straw chopper drive, 1st step
R13 Straw chopper drive, 2nd step
R14 Straw chopper drive, 3rd step
D = Threshing drum, V = Accelerator, W = Impeller, R = Drive belts, K = Drive chains

Claas LEXION 540 C Specifications

General

Brand	Claas
Model	LEXION 540 C
Category	Farm Equipment
Language	English
