00 0290 380 0 - ERG RHB LEXION 600-510 - 01/09 7
2 Feed rake conveyor
2.1 Feed rake conveyor
82705
2 Feed rake conveyor
2.1 Feed rake conveyor
91711
2.1.1 Replacing the HP feed rake conveyor anti-slip strips
– Replace the anti-slip strips.
- Loosen the anti-slip strips (1) with a hot-air gun.
- Clean the base and ensure it is free of grease
and rust.
- Apply new anti-slip strips (1) to suit the dimen-
sions and in parallel with one another.
31735
1
Mass X für: -8° : 428 mm
+11° : 593 mm
0° : 496 mm
Mass X für: -8° : 428 mm
0° : 496 mm
+11° : 593 mm
A
B
X
W
V
V
X
W
Y
Y
U
U

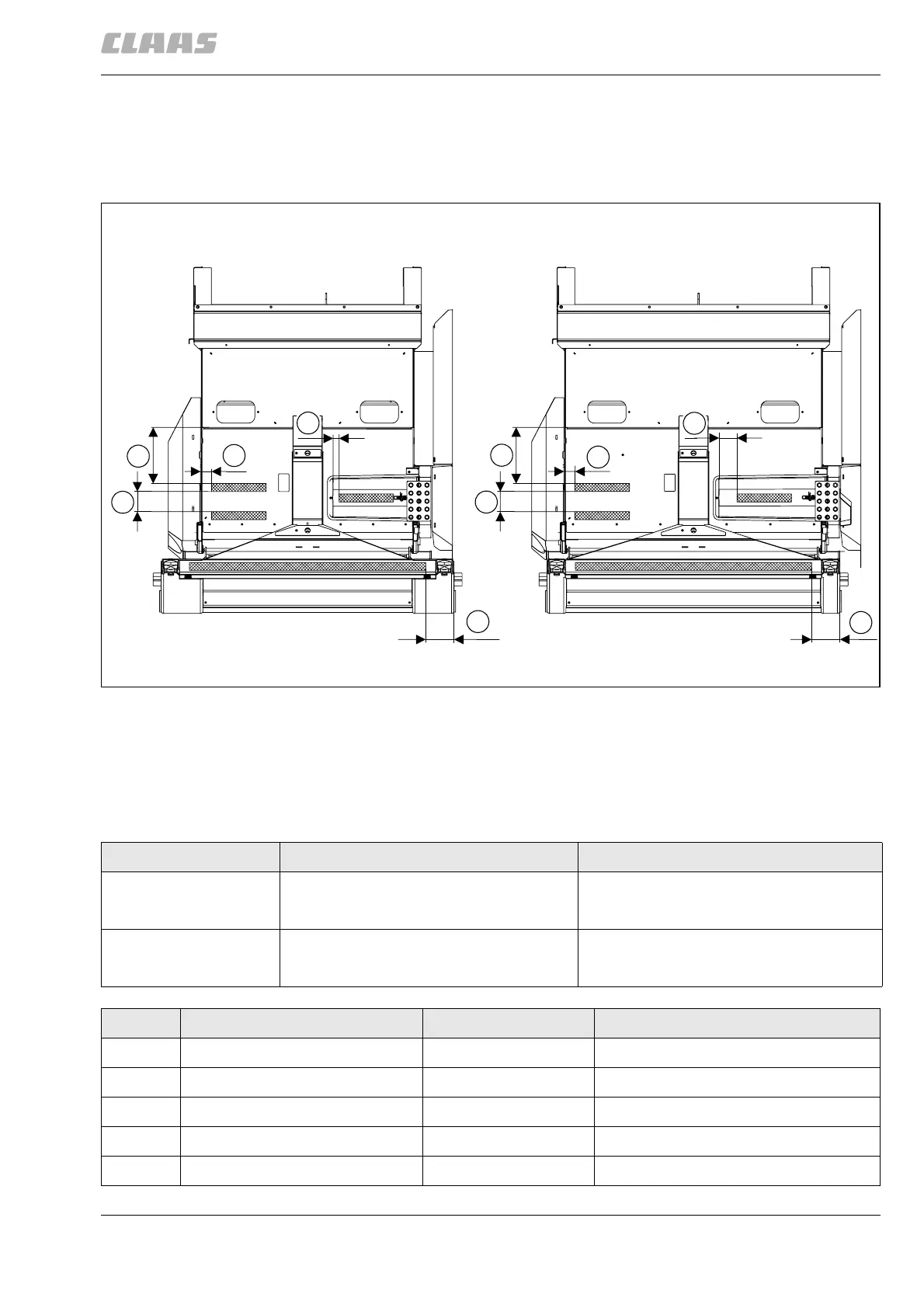

Figure Designation Dimensions of anti-slip strips
A HP feed rake conveyor (1420 mm wide) 50 mm x 340 mm (3 pcs.)
50 mm x 1470 mm (1 pc.)
B HP feed rake conveyor (1700 mm wide) 50 mm x 340 mm (3 pcs.)
50 mm x 1470 mm (1 pc.)
Pos. Designation Dimensions Remarks
U Spacing dimension 64 mm
V Spacing dimension 177 mm
W Spacing dimension 350 mm
X Spacing dimension 125 mm
Y Spacing dimension 40 mm
