Claas LEXION 780 - EASY: Steering System; LASER PILOT Activation and Setup

53
EASY: Steering
1
2
TIP. If the LASER PILOT is not steering straight ahead, check the
adjustments in the HOTKEY first.
TIP. Check the back of the LASER PILOT.
• 5 - adjust up or down and left or right, or clean glass.
• 6 - no crop edge, adjust left or right.

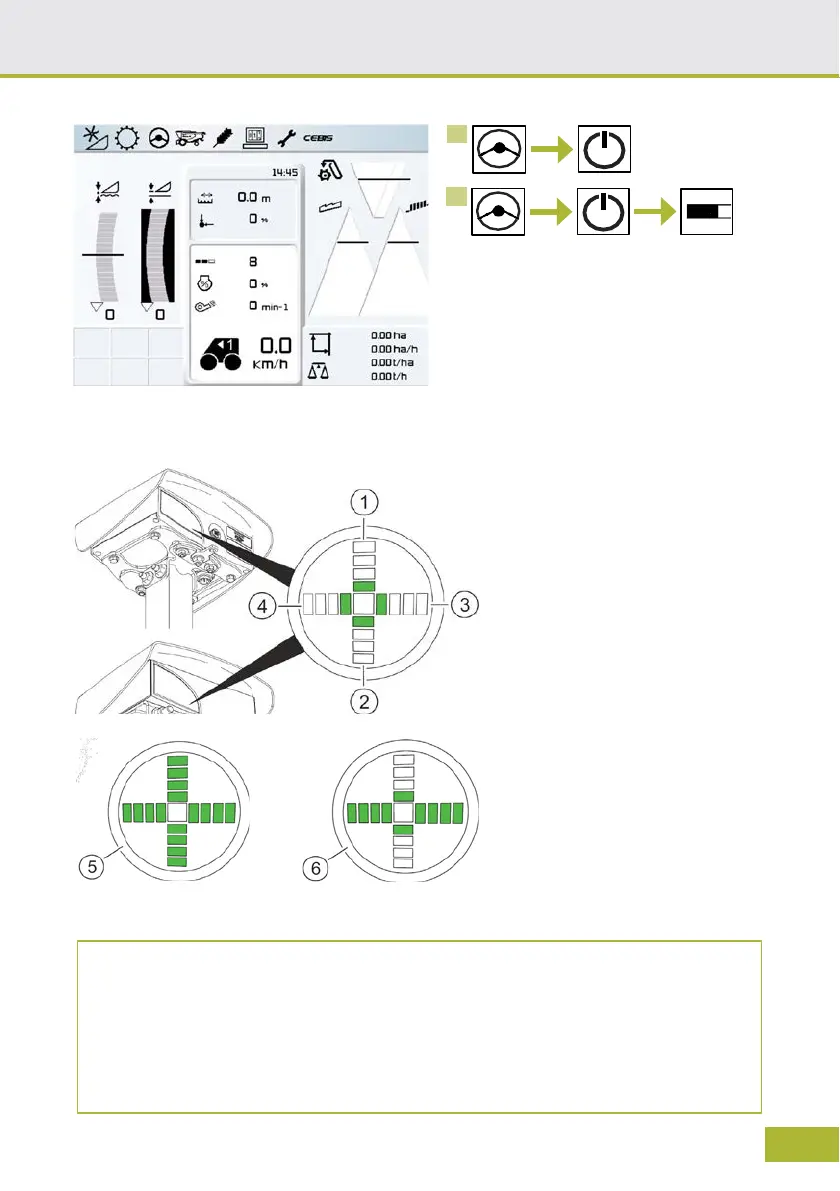

To activate LASER PILOT make
sure it is turned on in CEBIS (1) and
that LASER PILOT is selected (2).
Line up with the crop edge before
pressing the AUTOPILOT buttonon
the joystick.
To set up the LASER PILOT,
make sure the combine has a
straight edge and is lined up
with the crop.
With the engine running,
threshing engaged theLEDs
on the back of the LASER
PILOT should all be in the
middle.
If the LEDs are up to
1 - too high
2- too low
3- too far right
4 - too far left
To adjust the LASER PILOT
you only need the panel
spanner.
