Claas LEXION 780 - Combine Dimensions: Front Wheel Configuration

6

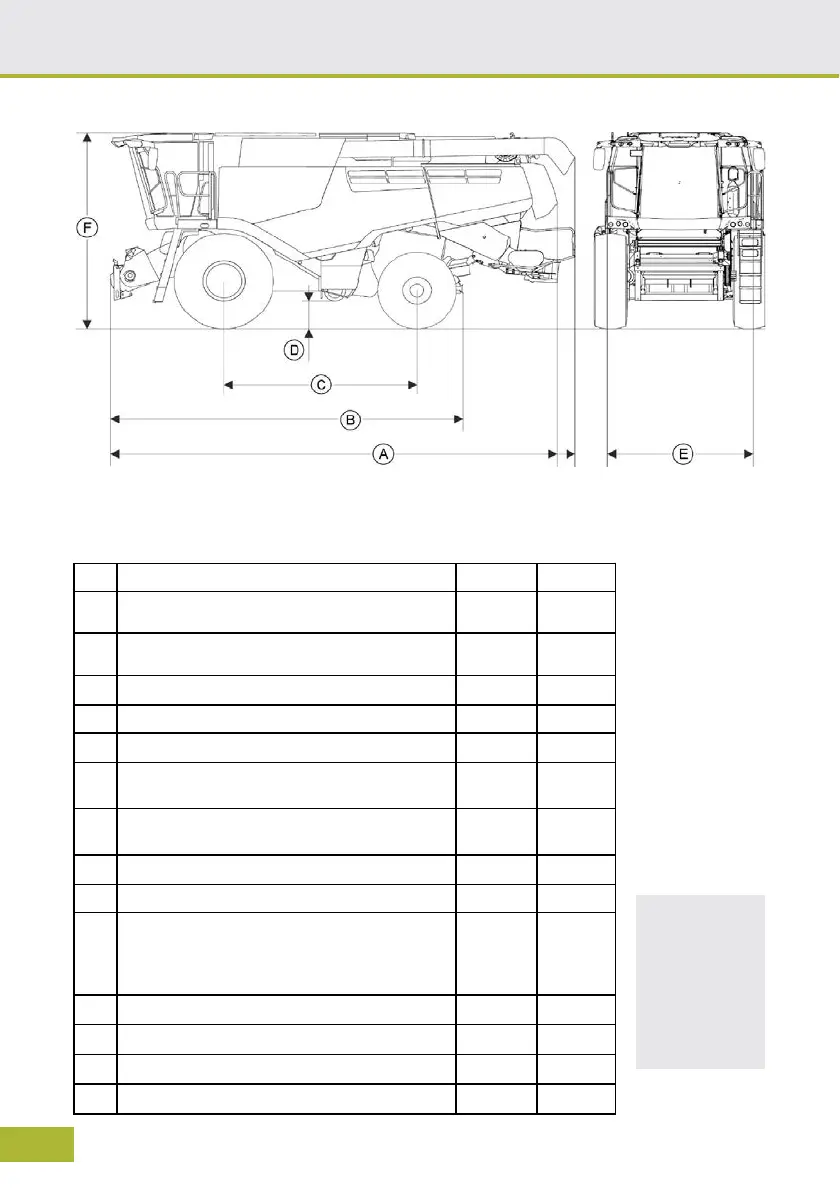

Overview: Safety - Dimensions with front wheels
A Length up to tailgate 8990 mm
A Length up to safety frame of radial spreader 9330 mm
A Length, with XL grain tank unloading tube 9270 mm
A Length, with XXL grain tank unloading tube 9850 mm
A Length, with 3XL grain tank unloading tube 10450 mm
A Length, with 4XL grain tank unloading tube 10850 mm
A
Length, with 7XL grain tank unloading tube
folded in
10450 mm
A
Length, with 7XL grain tank unloading tube
folded out
12900 mm
B Length up to trailer hitch 6890 mm
C Wheel base 3840 mm
D
Ground clearance up to elevator boot
Applies to:
LEXION 780
LEXION 770
450 mm
D Ground clearance up to elevator boot 430 mm
E Width over body without tyres 3000 mm
F Height, with grain tank closed 3950 mm
F Height, with grain tank open 4880 mm
Measurements
made with the
necessary tyre
inflation pressure.
On solid ground.
With 680/85R32
and 500/85 R24
tyres.
