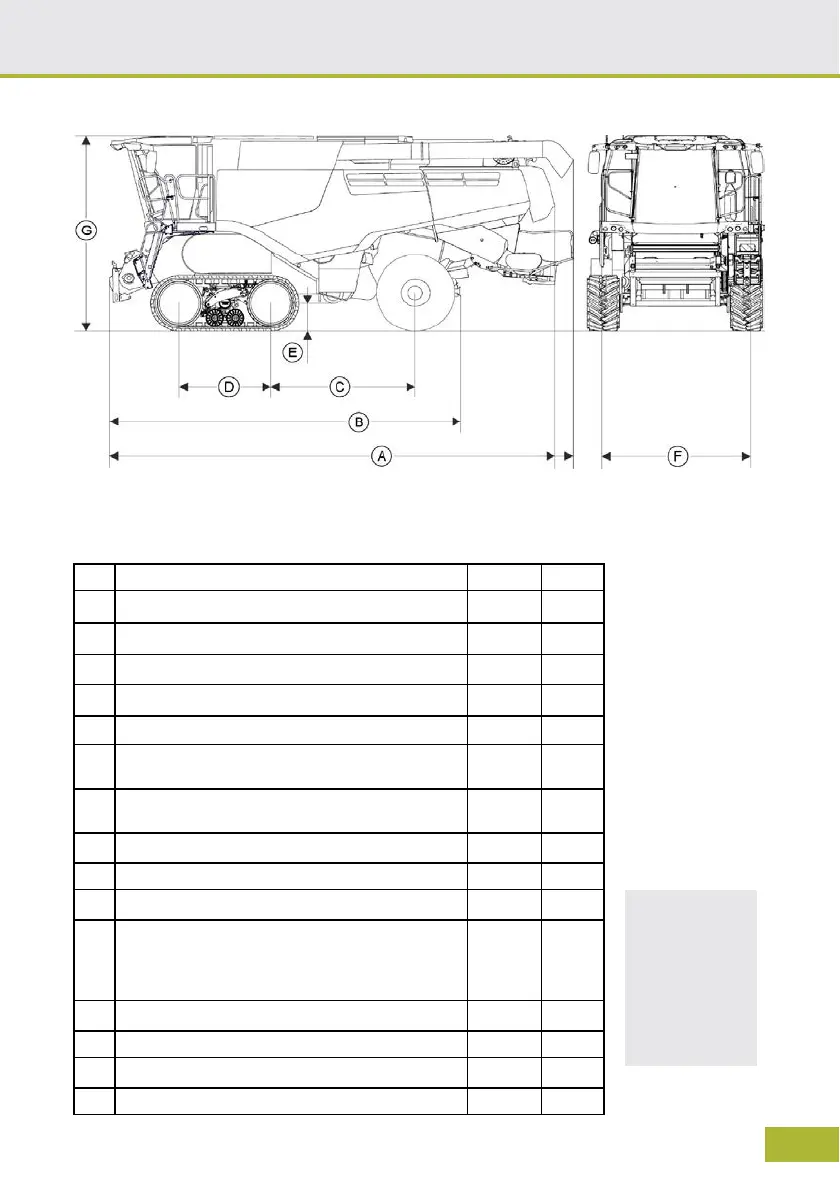

Overview: Safety - Dimensions with TERRATRAC
A Length up to tailgate 8990 mm
A Length up to safety frame of radial spreader 9330 mm
A Length, with XL grain tank unloading tube 9270 mm
A Length, with XXL grain tank unloading tube 9850 mm
A Length, with 3XL grain tank unloading tube 10450 mm
A Length, with 4XL grain tank unloading tube 10850 mm
A
Length, with 7XL grain tank unloading tube folded
in
10450 mm
A
Length, with 7XL grain tank unloading tube folded
out
12900 mm
B Length up to trailer hitch 6975 mm
C Wheel base 2890 mm
D TERRA TRAC ground contact length 1825 mm
D
Ground clearance up to elevator boot
Applies to:
LEXION 780 TERRA TRAC
LEXION 770 TERRA TRAC
450 mm
E Ground clearance up to elevator boot 430 mm
F Width over body withouttyres 3000 mm
G Height, with grain tank closed 3950 mm
G Height, with grain tank open 4880 mm
The height was
measuredwith
the necessary
tyre inflation
pressure.
On solid ground.
With 500/85 R24
tyres.
