Cab

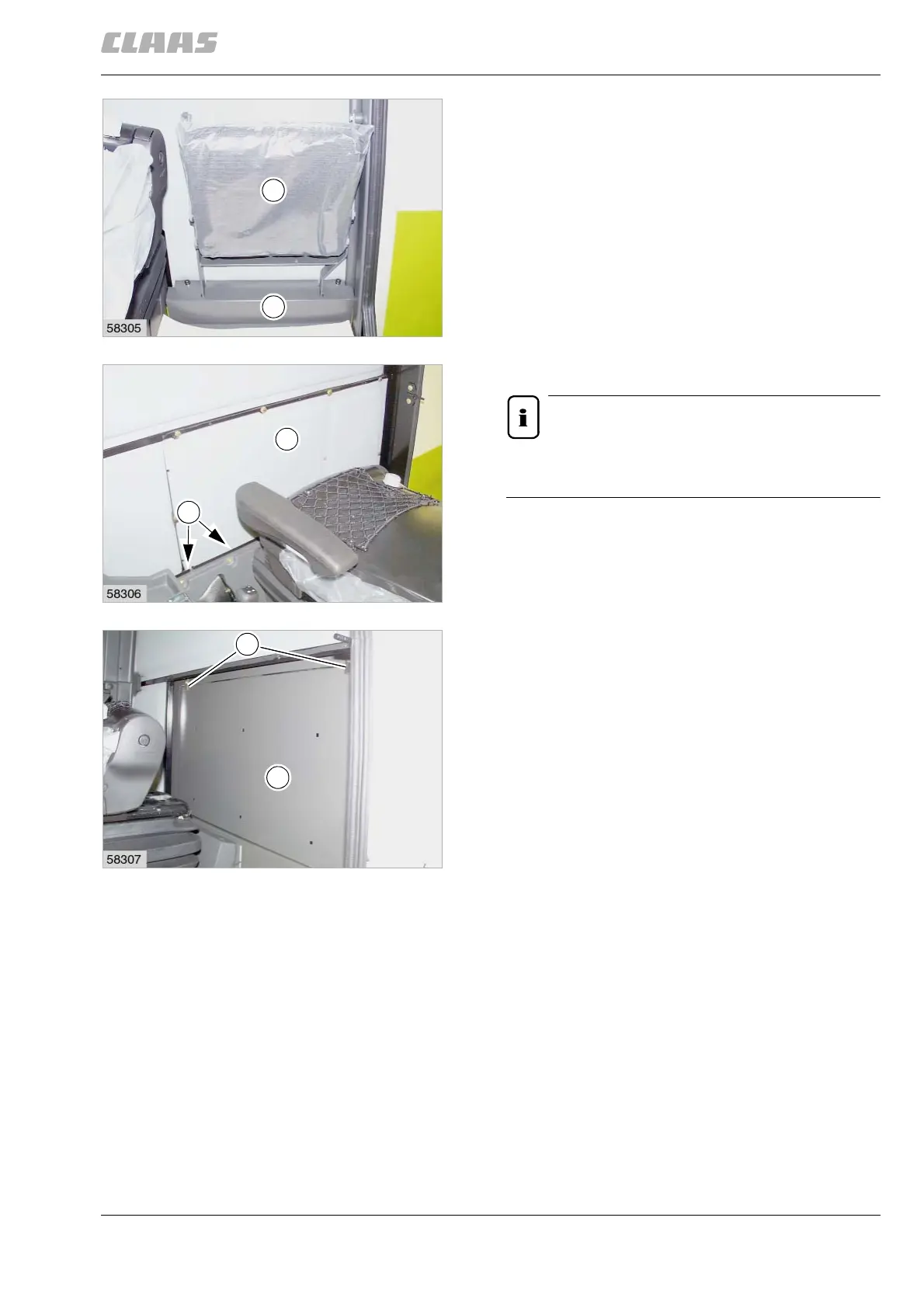

With passenger seat fitted:
–Unscrew covering(D).
– Remove the passenger seat (E).
(Fig. 23)
Unscrew and remove covering (F).
Note!
Two hex. bolts can be found at (G) beneath the
insulation.
(Fig. 24)
Loosen locks (H) and rotate by 90°.
Move flap (K) a little bit forward and then remove it.
(Fig. 25)
D
E
23
F
G
24
K
H
25
