Claas QUADRANT 3400 - Torque Settings - Thread Clamps and Wheel; Screw Thread Clamps and Wheel Tightening Torques

00 0294 514 0 - RHB QUADRANT 3400 - 03/10 25
Introduction
Torque settings
81213
43087

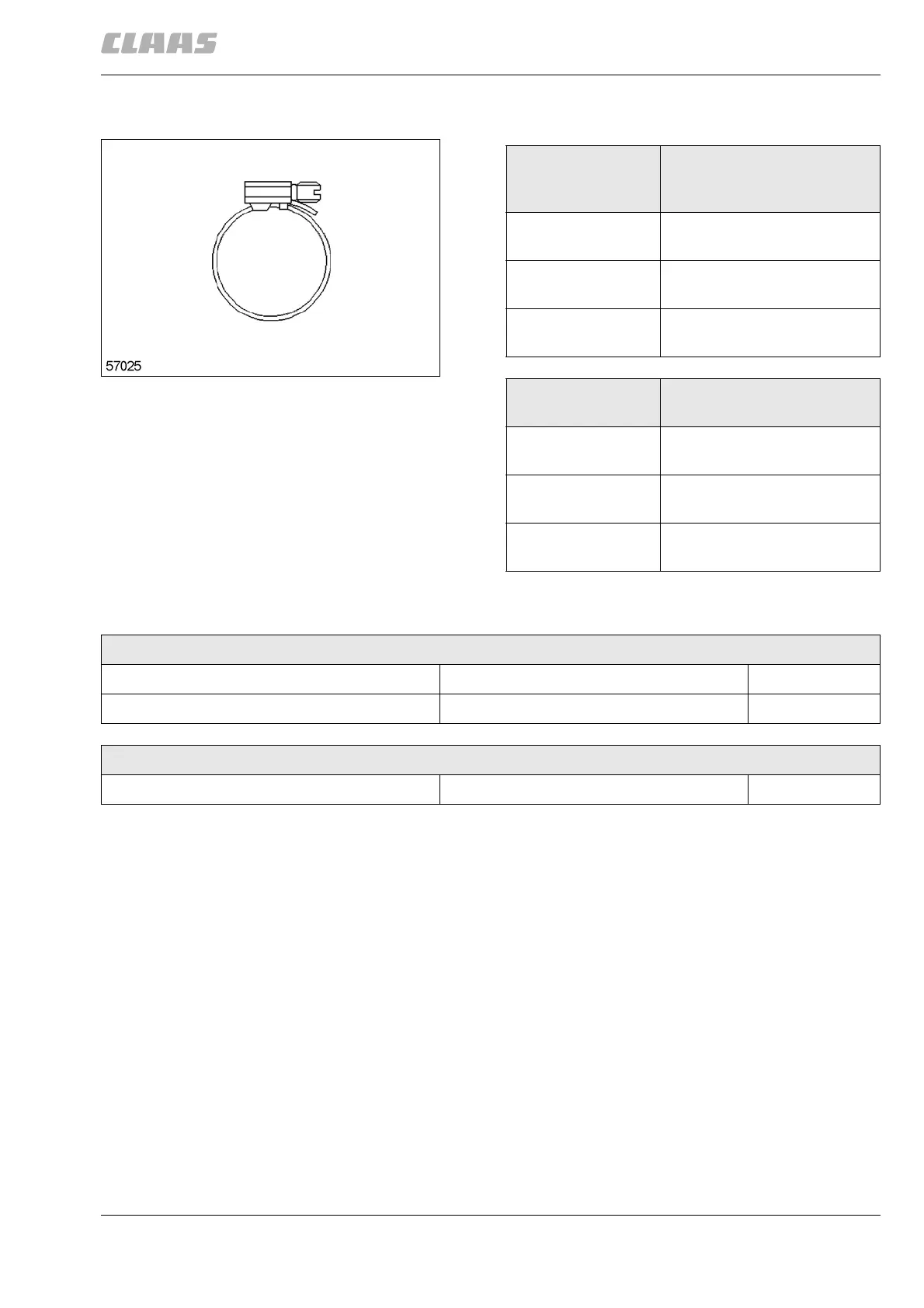

Tightening torques for screw thread clamps
116749
Wheel tightening torques
6
8515
Collar width Tightening torques for new
hoses during first
assembly
7.9 mm
(0.31 inches)
0.9 ± 0.2 Nm (8 ± 2 lb in -
pounds per inch)
13.5 mm
(0.53 inches)
4.5 ± 0.5 Nm (40 ± 4 lb in -
pounds per inch)
15.9 mm
(0.63 inches)
7.5 ± 0.5 Nm (65 ± 4 lb in -
pounds per inch)
Collar width Tightening torques for re-
tightening or reassembly
7.9 mm
(0.31 inches)
0.7 ± 0.2 Nm (6 ± 2 lb in -
pounds per inch)
13.5 mm
(0.53 inches)
3.0 ± 0.5 Nm (27 ± 4 lb in -
pounds per inch)
15.9 mm
(0.63 inches)
4.5 ± 0.5 Nm (40 ± 4 lb in -
pounds per inch)
Wheel tightening torques - Tandem axles, 20 inches and trailing tandem, 22.5 inches
Up to machine 74000179 M 18 x 1.5 - Grower nut and washer 270
+20
Nm
From machine 74000180 M 22 x 1.5 - Grower nut and washer 450
+60
Nm
Wheel tightening torques - Trailing tandem axles, 26.5 inches
From machine 74000016 M 22 x 1.5 - Grower nut and washer 450
+60
Nm
