Claas ROLLANT 250 Repair Manual

298 332.0 - RHB ROLLANT 250 / 250 RC
2.1.1
Drives
UNIVERSAL DRIVE SHAFT
Disassembling the universal drive shaft half
(tractor side)

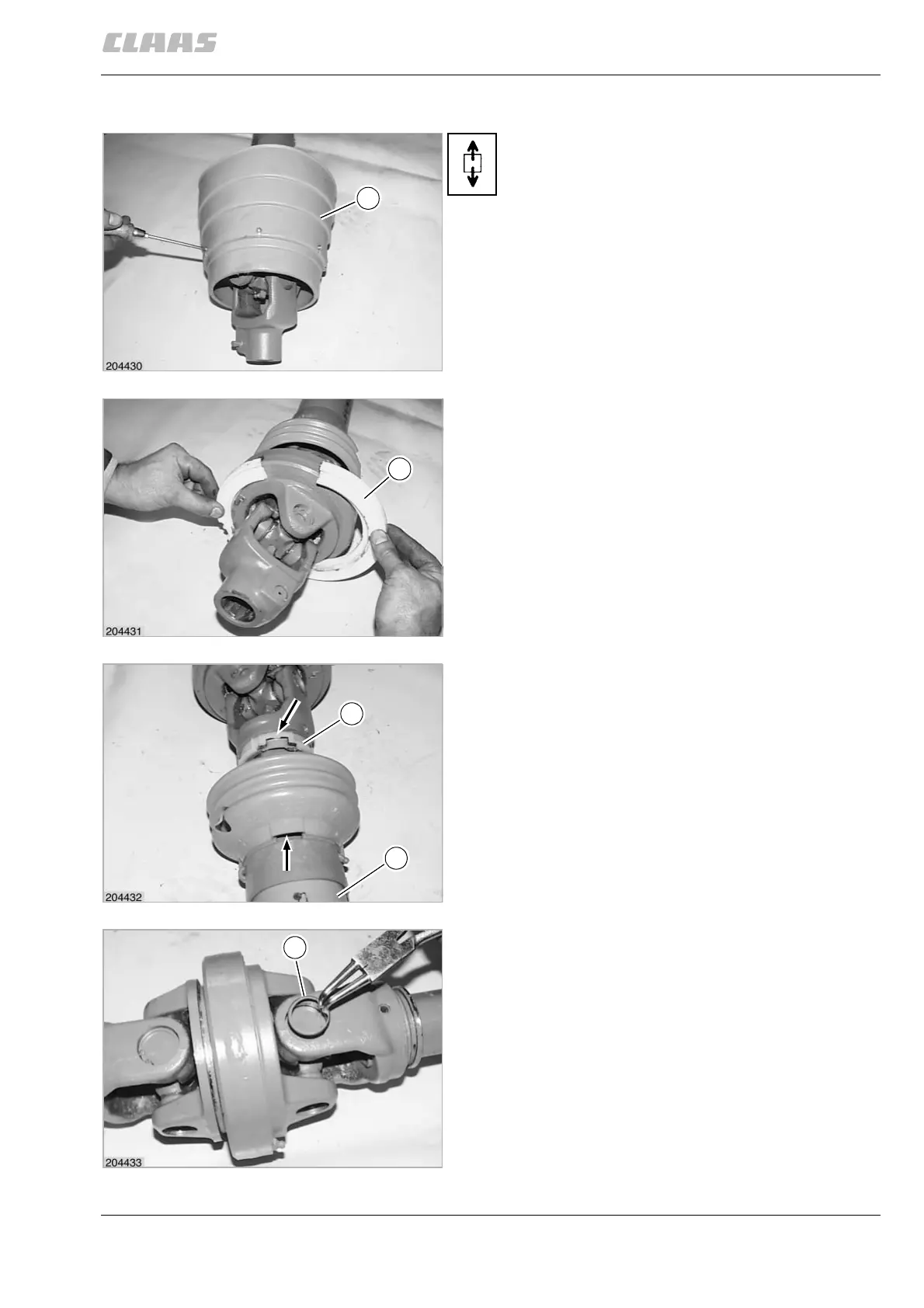

Unscrew all cheese-head sheet metal screws from the
universal drive shaft guard (A).
Remove universal drive shaft guard.
(Fig. 1)
Remove slide ring (B) from the double yoke.
(Fig. 2)
Unscrew the cheese-head sheet metal screw and
rotate guard half (D) until the relief is aligned with the
peg at the slide ring (C).
Remove guard half (D) from the lemon tube.
Remove slide ring (C).
(Fig. 3)
Clean the receivers in the grooved yoke and in the
double yoke from dirt and rust.
Remove the circlips (E) from the receivers of the
grooved yoke.
(Fig. 4)
A
1
B
2
C
D
3
E
4
