RHB ROLLANT 250 / 250 RC - 298 332.0
Drives

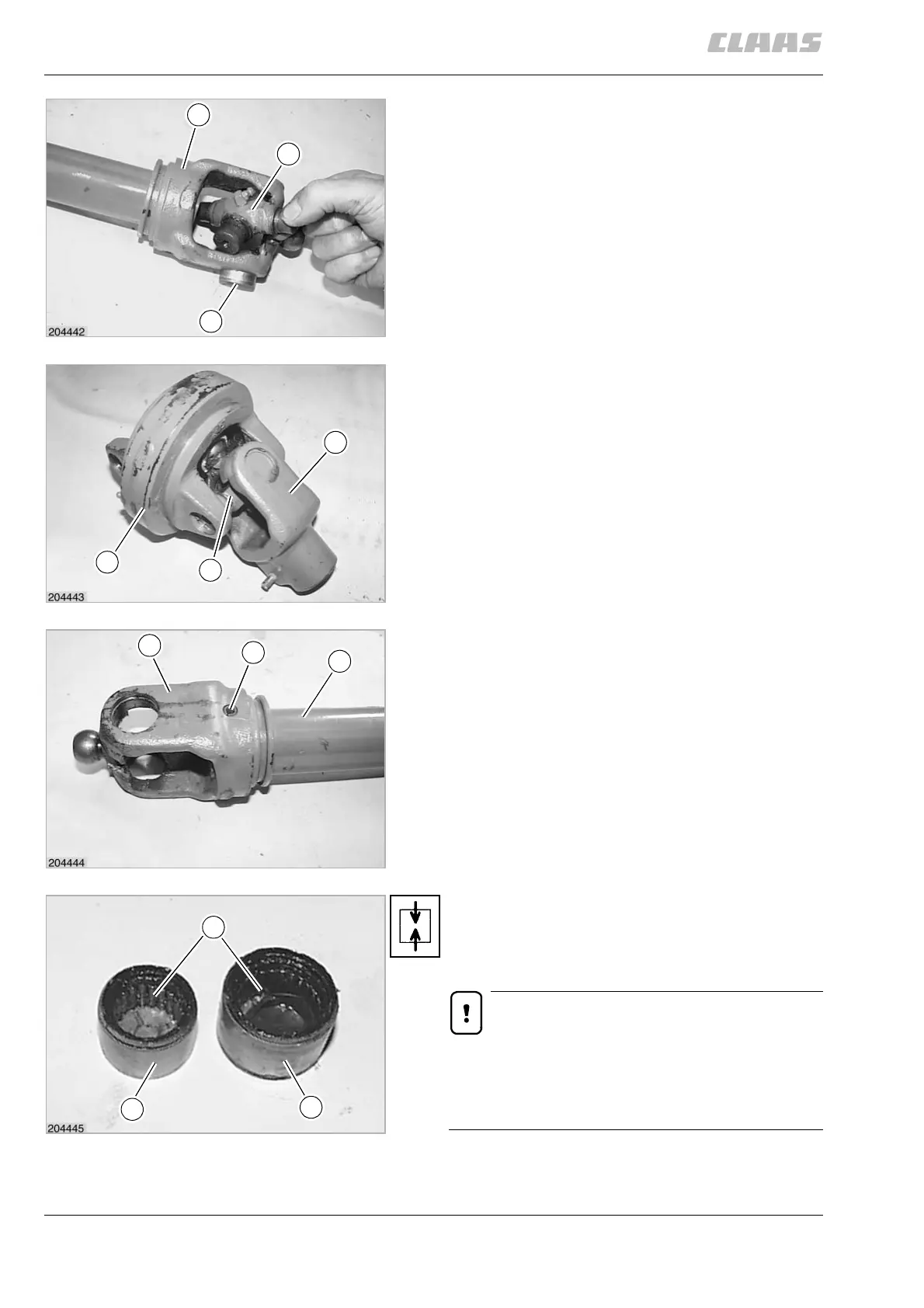

Remove the centre cross assembly (K) from the
bushing (M) and the grooved yoke (N).
(Fig. 13)
In the same way, remove the centre cross
assembly (P) from the double yoke (H) and the
slip-on yoke (O).
(Fig. 14)
To replace the grooved yoke (Z), drive out the
expansion pin (S) and pull grooved yoke off of
lemon tube (T).
(Fig. 15)
Assembling the universal drive shaft half
(tractor side)
Pull off the bushings (G) and (M) from the new centre
cross assembly.
Important!
The inside of the bushings must be fully covered
with needles (L). Grease needles if required.
The seals must be correctly inserted into the
bushings.
(Fig. 16)
M
K
N
13
P
O
H
14
S
T
Z
15
L
G
M
16
