Claas ROLLANT 250 Repair Manual

298 332.0 - RHB ROLLANT 250 / 250 RC
2.1.5
Drives

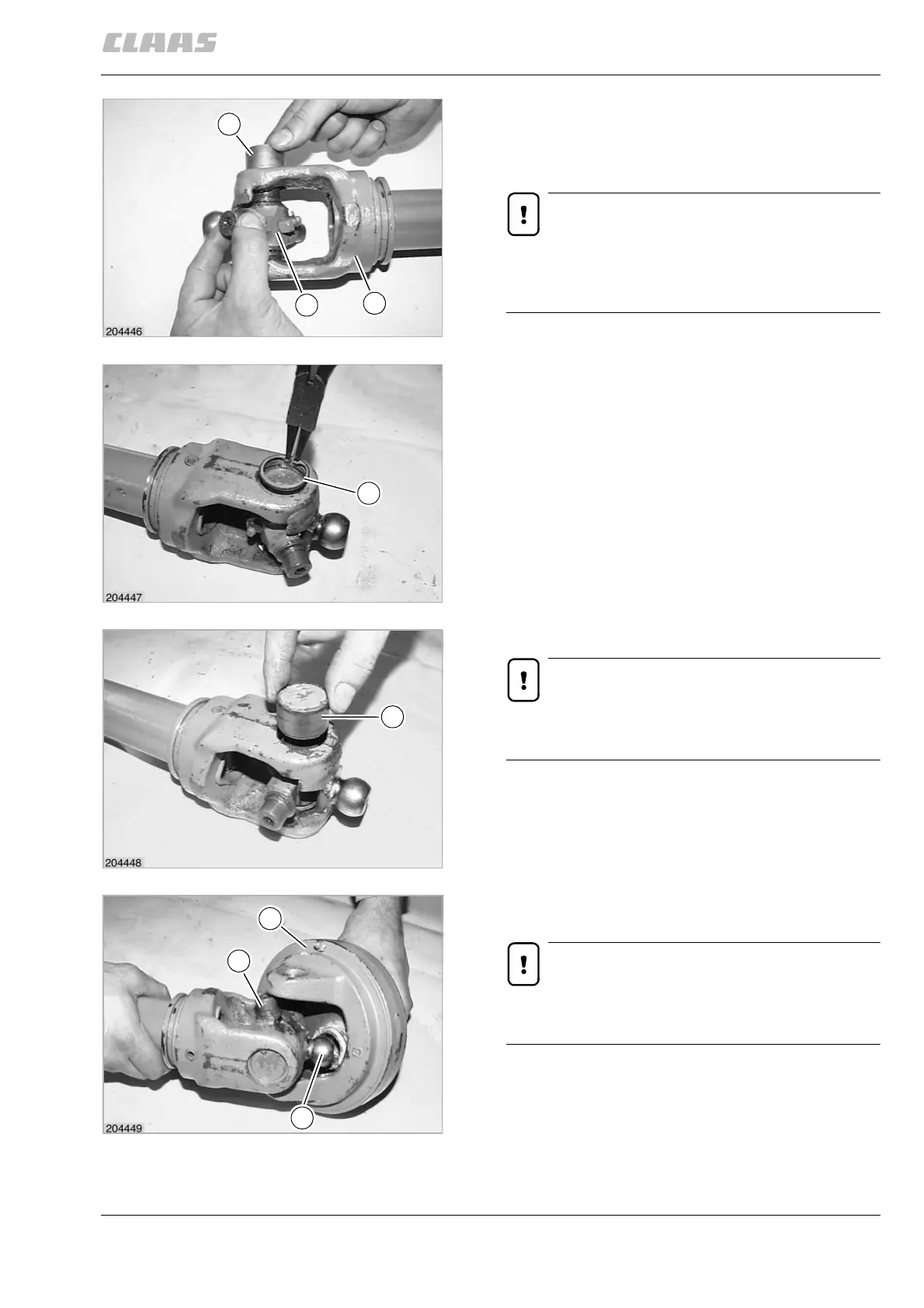

Insert centre cross assembly (K) into the grooved
yoke (N).
Place the bushing (M) in position on one side and push
it in far enough to allow the circlip to be installed.
Important!
To prevent the needles from falling out when
pushing the bushing in, lift centre cross assem-
bly into the bushing.
(Fig. 17)
Insert circlip (E).
(Fig. 18)
Push in bushing (M) from the other side. Insert circlip.
Important!
The entire circumference of the circlip must be
placed inside the groove.
(Fig. 19)
Insert the cog of the centre cross assembly (K) into the
receivers of the double yoke (M).
Important!
The ball head (U) on the grooved yoke must be
placed in the ball receiver at the double yoke.
(Fig. 20)
M
K
N
17
E
18
M
19
U
H
K
20
