Claas ROLLANT 250 Repair Manual

298 332.0 - RHB ROLLANT 250 / 250 RC
2.1.3
Drives
Drive bushing (G) out of the double yoke (H).

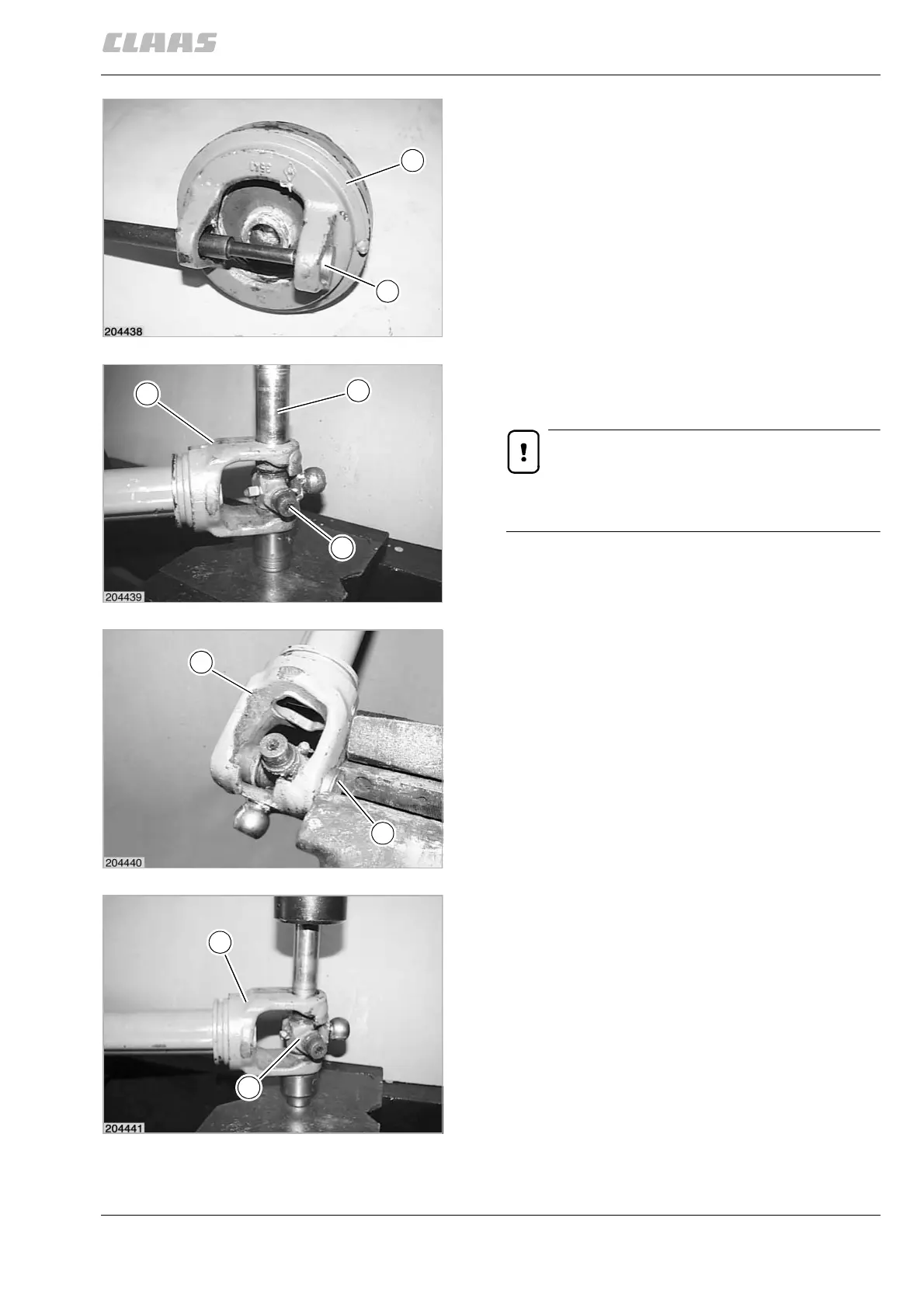

(Fig. 9)
Force a bushing (M) in the grooved yoke (N) through
far enough, using a tube (R), until the centre cross
assembly (K) makes contact.
Important!
The tube (R) must be 1 mm smaller than the
bushing diameter.
(Fig. 10, 11)
Clamp the forced-out bushing (M) in a vise and drive it
out by light blows against the grooved yoke (N).
(Fig. 11)
Push the centre cross assembly (K) downward to the
grooved yoke (N) until the stop is reached.
(Fig. 12)
H
G
9
K
R
N
10
N
M
11
K
N
12
