WS1 & 1.25 Man u al Page 9
OEM Softener System Setup Quick Reference
This is a quick reference setup procedure. See OEM Softener System Setup Detail for
more information on available settings.

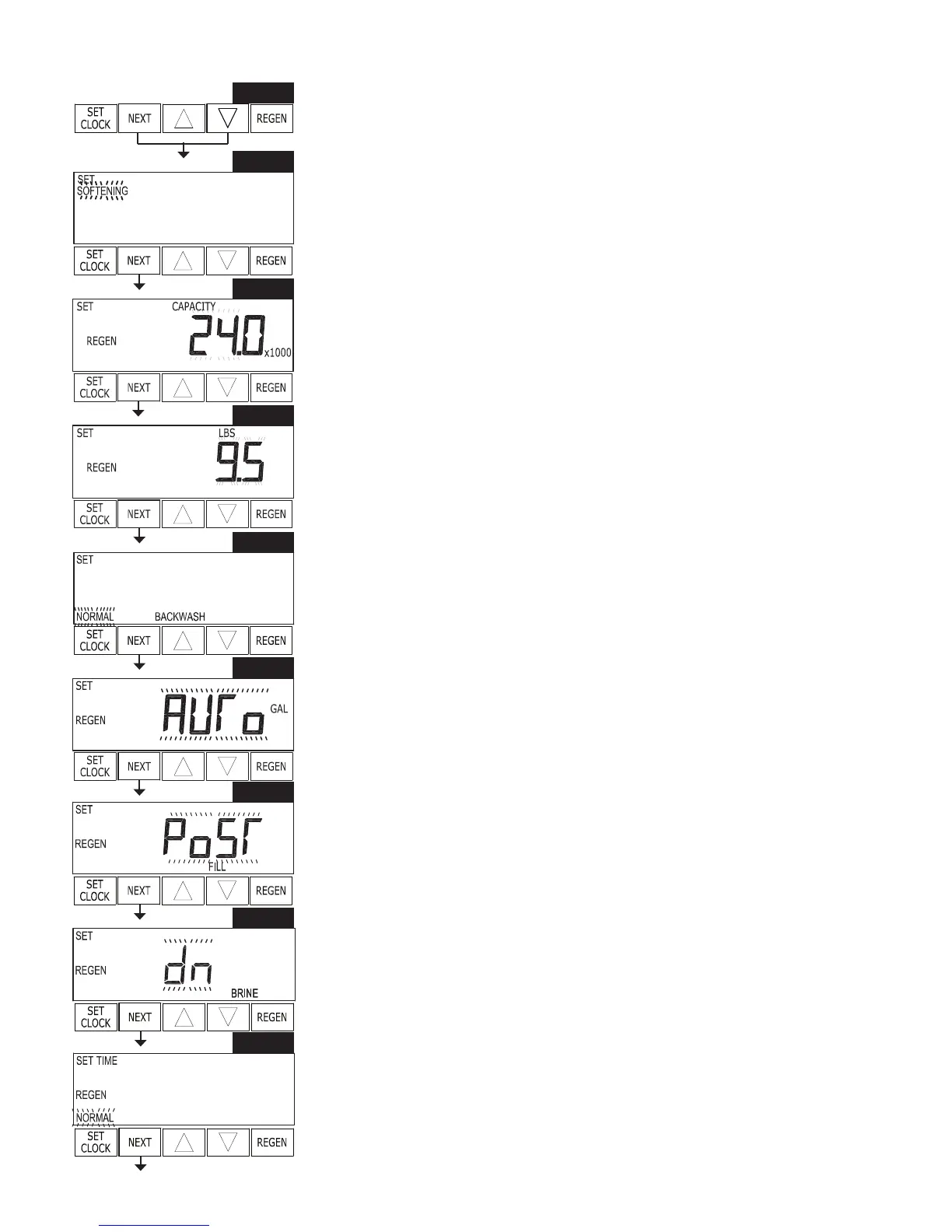

STEP 1S – Press NEXT and ▼ simultaneously for 3 seconds. If screen in step 2S does
not appear in 5 seconds the lock on the valve is activated. To unlock press ▼, NEXT,
▲, and SET CLOCK in se quence, then press NEXT and ▼ si mul ta neous ly for 3
seconds.
STEP 2S – Choose Softening using ▼ or ▲. Press NEXT to go to Step 3S. Press
REGEN to exit OEM Softener System Setup.
STEP 3S – Enter the ion exchange capacity in grains of hardness as
calcium carbonate for the system based on test data using ▼ or ▲.
Press NEXT to go to Step 4S. Press REGEN to return to previous
step.
STEP 4S – Enter the pounds of salt per regeneration using ▼ or ▲.
Press NEXT to go to Step 5S. Press REGEN to return to previous
step.
STEP 5S – Backwash: Select “NORMAL” or “LONGER” using ▼ or ▲. See Tables
2 or 3 for backwash times. Press NEXT to go to Step 6S. Press REGEN to return to
previous step.
STEP 6S – Set Gallons Capacity using ▼ or ▲:
• “AUTO” (reserve capacity automatically estimated and gallons capacity
au to mat i cal ly calculated from grains capacity and water hardness);
• “oFF” (regeneration based on day override); or
• number of gallons (20 to 50,000).
See Setting Options Table for more detail. Press NEXT to go to Step 7S. Press REGEN
to return to previous step.
STEP 7S – Set Re ll option using ▼ or ▲:
• “PoST” to re ll the brine tank after the nal rinse; or
• “PrE” to re ll the brine tank two hours before the regeneration time set.
Press NEXT to go to Step 8S. Press REGEN to return to previous step.
STEP 8S – Set regenerant down ow or up ow using ▼ or ▲:
• “dn” if the regenerant is to ow downward through the media; or
• “UP” if the regenerant is to ow upward through the media.
Prior to selecting a regenerant fl ow direction, verify the correct valve body, main piston,
regenerant piston, and stack are being used, and that the injector or injector plug(s) are in
the correct locations. See Valve Body Compliance Table in WS1 & WS1.25 Drawings and
Service Manual.
Press NEXT to go to Step 9S. Press REGEN to return to previous step.
STEP 9S – Set Regeneration Time Option using ▼ or ▲:
• “NORMAL” means regeneration will occur at the preset time;
• “on 0” means regeneration will occur immediately when the gallons capacity
reaches 0 (zero); or
• “NORMAL + on 0” means regeneration will occur at one of the following:
• the preset time when the gallons capacity falls below the reserve or the
spec i ed number of days between regenerations is reached which ev er comes
rst; or
• after 10 minutes of no water usage when the gallon capacity reaches 0 (zero).
See Setting Options Table for more detail. Press NEXT to exit OEM Softener System
Setup. Press REGEN to return to previous step.
RETURN TO
NORMAL MODE
STEP 3S
STEP 2S
STEP 1S
STEP 4S
STEP 5S
STEP 6S
STEP 7S
STEP 8S
STEP 9S
To Next Page
