ADB340MP
ADB341MP
- 10 -

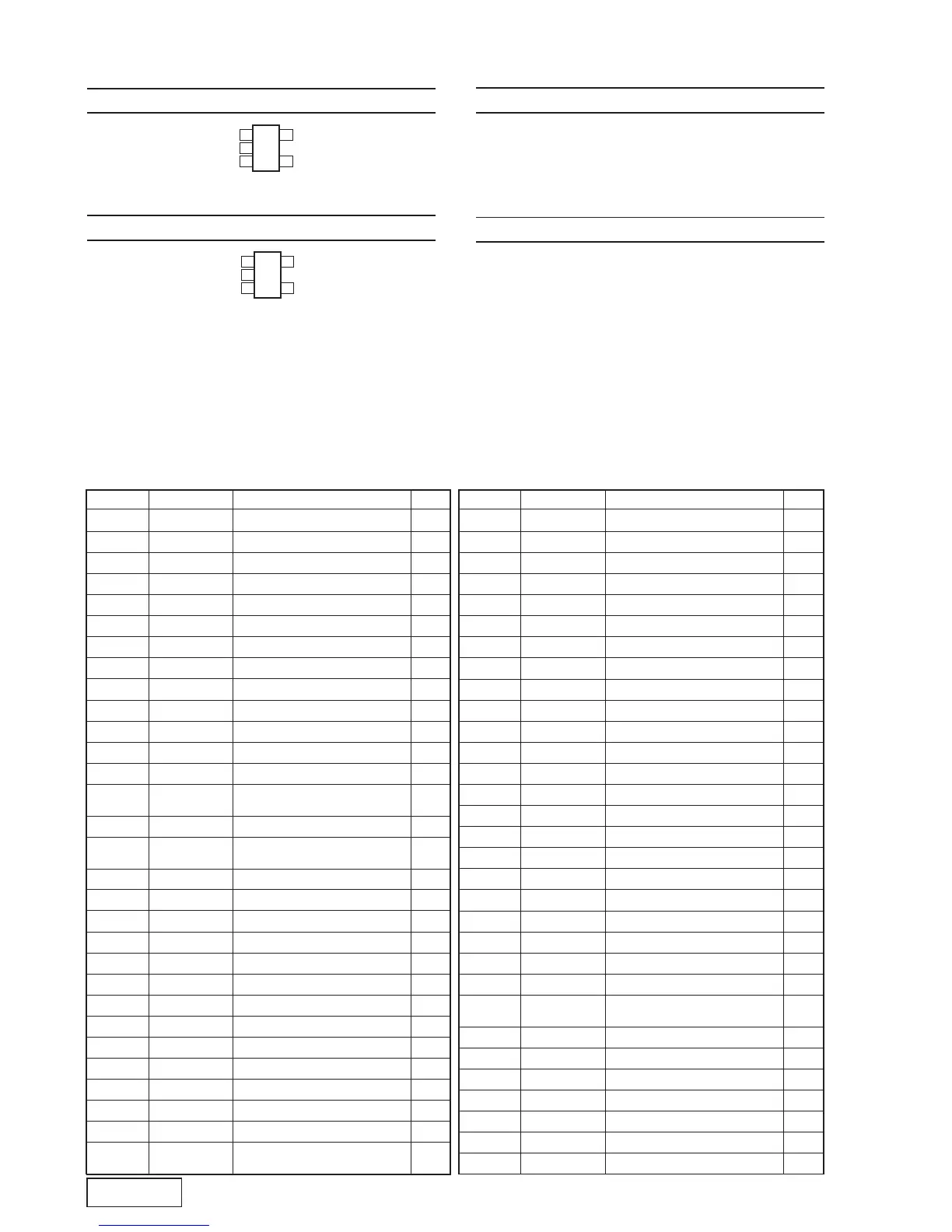

EXPLODED VIEW/PARTS LIST
Main section
NO. PART NO. DESCRIPTION Q'TYNO. PART NO. DESCRIPTION Q'TY
1 653-0428-01 FLEX PWB (DISP) 1
2 653-0428-02 CHASSIS ASSY 1
3 653-0428-03 BOTTOM COVER 1
4 653-0428-04 COVER (REAR) 1
5 653-0428-05 DECK BRACKET (FRONT) 1
6 653-0428-06 DECK BRACKET(REAR) 1
7 653-0428-07 HEATSINK (4P) 1
8 653-0428-08 BRACKET HOOK ASSY 1
9 653-0428-09 INDICATOR (CST) 1
10 653-0429-96 LCD 1
11 653-0428-10 CD MECH (CDC03TL1) 1
12 ----------- SERVO PWB 1
13 653-0428-11 SCREW (2X4) 3
14 653-0428-12 CASSETTE MECH 1
(CDS-802TL1)
15 ----------- MAIN PWB 1
16 653-0428-13 TUNER PACK (ADB340MP) 1
653-0434-01 TUNER PACK (ADB341MP
17 653-0428-14 SCREW (2.6X8) 1
18 653-0428-15 SCREW (2.6X6) 22
19 653-0428-16 SCREW (3X8) 1
20 653-0428-17 SCREW (2.6X12) 3
21 653-0428-18 SCREW (2X4X5) 4
22 653-0428-19 INSULATOR (PWB) 1
23 653-0428-20 SHIELD SHEET (DECK-L) 1
24 653-0428-21 SHIELD SHEET (DECK-R) 1
25 653-0428-22 INNER ES (FP ASSY-C) 1
26 653-0428-23 SCREW (2.6X3) 1
27 653-0428-24 SPACER (DECK BKT) 1
28 653-0428-25 SPACER (R) 1
29 653-0430-06 VOLUME (ENCODER) 2
30 653-0428-26 ESCUTCHEON (ADB340MP) 1
653-0434-02 ESCUTCHEON (ADB341MP)
31 653-0428-27 ESCUTCHEON COVER (B) 1
32 653-0428-28 COVER (B) 1
33 653-0428-29 KNOB 2
34 653-0428-30 SCREW (2X8) 4
35 653-0428-31 ES BRACKET ASSY (B) 1
36 653-0428-32 REFRECTION SHEET 2
37 ----------- DISPLAY PWB 1
38 653-0428-33 SCREW (2X2.5) 5
39 653-0428-34 BUTTON (OPEN) 1
40 653-0428-35 SPRING (BUTTON OPEN) 1
41 653-0428-36 SPRING (ES OPEN) 1
42 653-0428-37 SCREW (2X5) 2
43 653-0428-38 SCREW (2.6X5) 4
44 653-0428-39 PLATE SPRING (COVER) 2
45 653-0428-40 CUSHION (20X28) 1
46 653-0428-41 DAMPER (FRT-E2-300-G1) 1
47 653-0428-42 SCREW (2X6) 2
48 653-0428-43 CUSHION (B) 2
49 653-0428-44 SHIELD SHEET 1
50 653-0428-45 PLATE SPRING 1
51 653-0430-39 FLEX PWB(CD) 1
52 ----------- SUB PWB 1
53 653-0429-89 BRACKET (REG) 1
54 653-0429-90 IC BRACKET (ADB340MP) 1
653-0434-07 IC BRACKET (ADB341MP)
55 653-0429-91 BRACKET (CONN) 1
56 653-0430-10 BRACKET (LCD) 1
57 653-0430-11 HOLDER ASSY (LCD) 1
58 653-0430-12 HOLDER (LCD) 1
59 653-0430-13 CUSHION (30x18.5) 1
60 653-0430-14 INNER CONNECOR 2
61 653-0430-15 CLOR SHEET (LCD) 1
653-0429-21 KIA7806API 6V Voltage Regulator
Terminal Description
pin 1: Input
pin 2: Common
pin 3: Output
653-0430-34 BA033FP 3.3V Voltage Regulator
Terminal Description
pin 1 : V IN : Voltage input terminal.
pin 2 : GND : Ground terminal.
pin 3 : V OUT : Voltage output terminal.
653-0430-36 TAR5S33 Positive Voltage Regurator (3.3V)
1
2
3
5
4
OUTPUT
NOISE
INPUT
GND
Control(H=ON)
1
2
3
5
4
OUTPUT
NOISE
INPUT
GND
Control(H=ON)
653-0430-37 TAR5S25 Positive Voltage Regurator (2.5V)
To Next Page
