ADB340MP
ADB341MP
- 14 -
NO. PART NO. DESCRIPTION Q'TYNO. PART NO. DESCRIPTION Q'TY

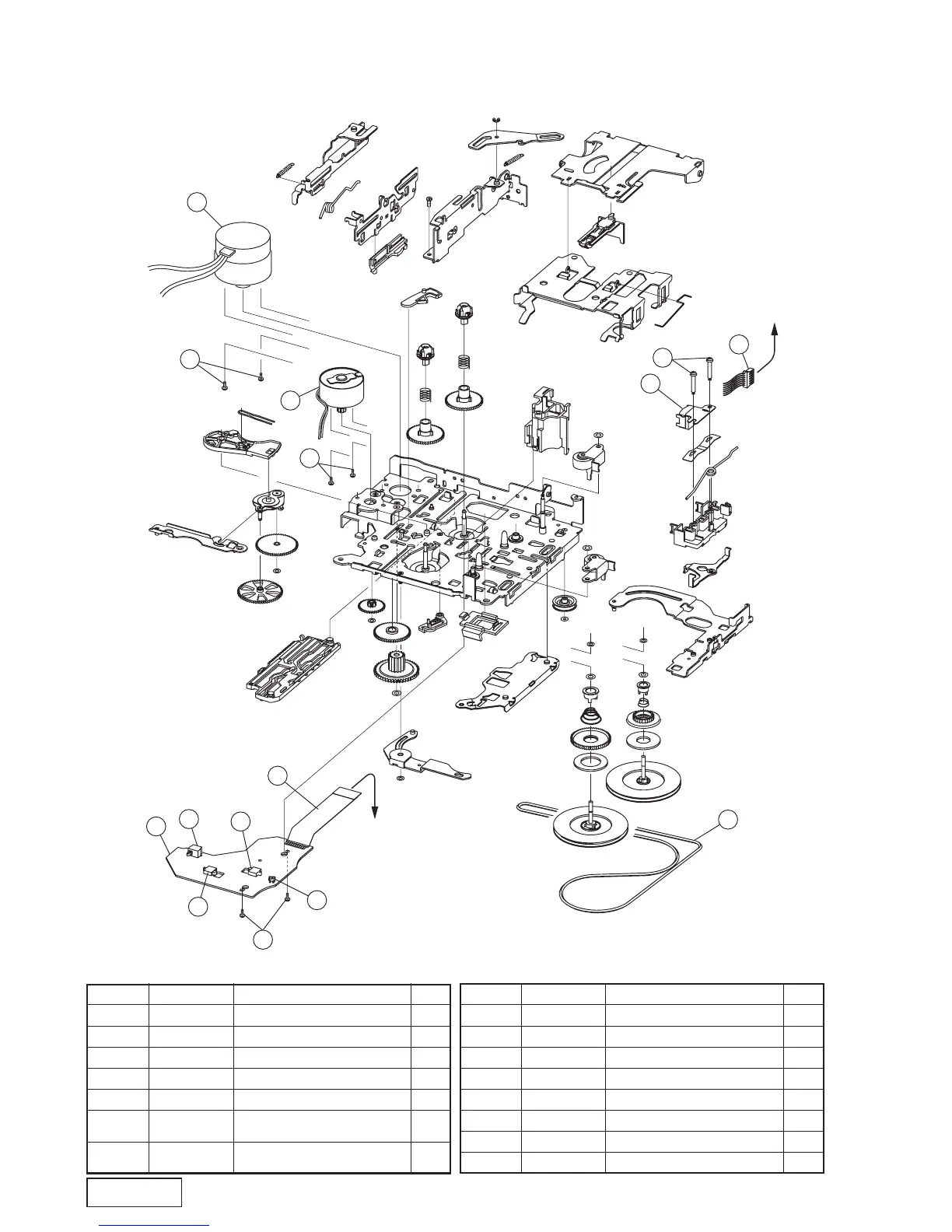

Cassette tape mechanism section
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
To P302 of Main PWB
To P303 of Main PWB
1 653-0431-33 SUB MOTOR ASSY 1
2 653-0431-34 MAIN MOTOR ASSY 1
3 653-0431-35 BELT 1
4 653-0431-36 AZIMUTH SCREW 2
5 ----------- REEL PWB 1
6 653-0431-40 SWITCH 1
(MODE)
7 653-0431-41 SWITCH 1
(CSST IN)
8 653-0431-42 FLAT CABLE 1
9 653-0431-43 PHOTP SENSOR 1
10 653-0431-44 SWITCH (STBY) 1
11 653-0431-37 HEAD 1
12 653-0431-47 EXTENSION LEAD 1
13 653-0431-27 SCREW (MAIN) 2
14 653-0431-45 SCREW (M2.0x2.5) 2
15 653-0431-38 SCREW (M1.7x3) 2
* Parts which are not mentioned in service manual are not supplied.
