Clarion ADB341MP - Main PWB(B1) Wiring Diagram (2;2); Sub PWB(B2) Wiring Diagram (2;2)

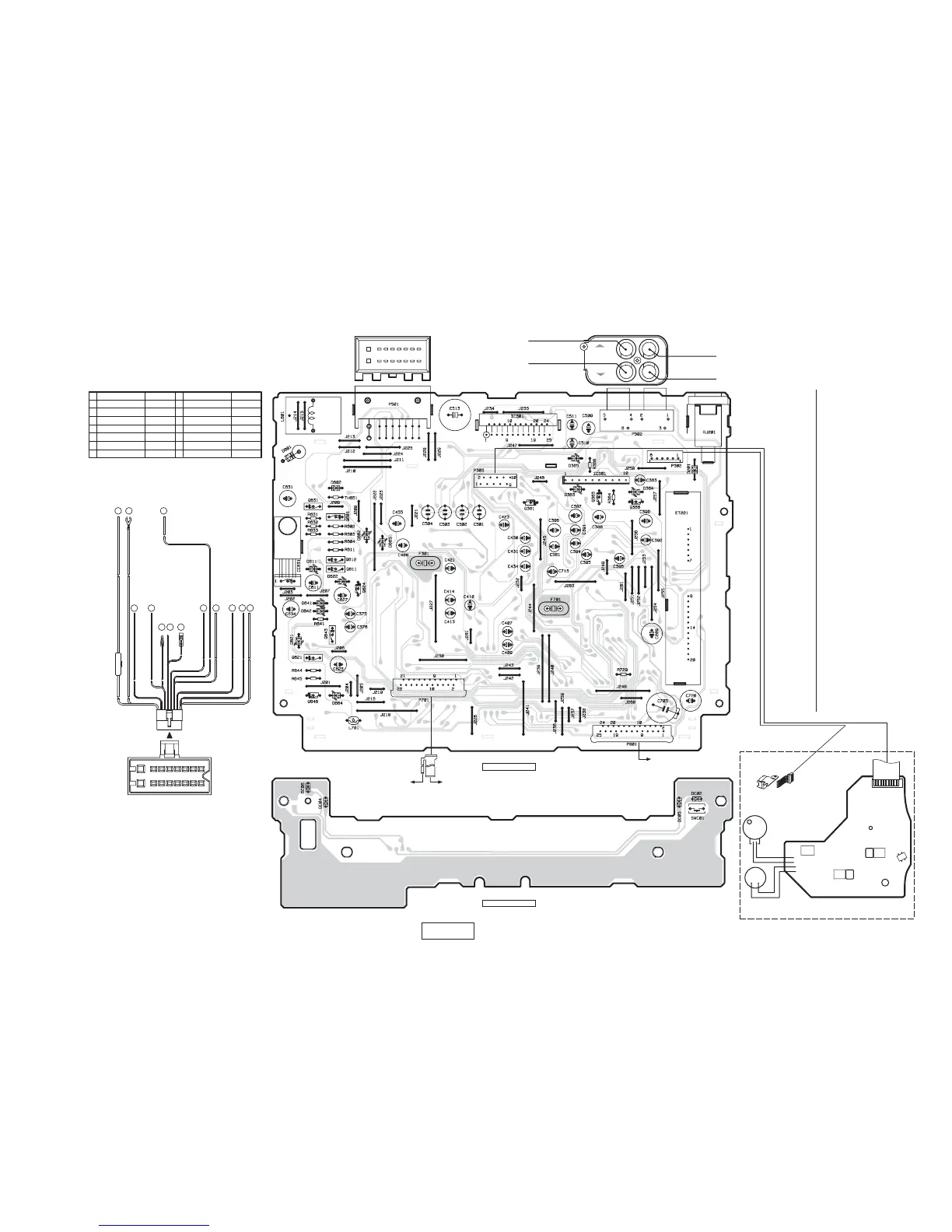

Main PWB(B1) section 2/2
- 23 -
ADB340MP
ADB341MP
Main PWB
(
B1
)
Sub PWB
(
B2
)
16P Socket
RCA terminal
Antenna recept.
Line OUT Rch(RED)
ABCDEFG
H
ABCDEFG
H
IJKLMNO
P
IJKLMNO
P
16P Socket (Extension lead)
I
J
K
L
M
N
O
P
REAR L-CH(-) GRN/BLK
NC ---
ACC RED
NC ---
REMOTE BLU/WHT
ILLUMI ORG/WHT
NC ---
GND BLK
A
B
C
D
E
F
G
H
REAR L-CH(+) GRN
FRONT L-CH(-) WHT/BLK
FRONT L-CH(+) WHT
FRONT R-CH(+) GRY
FRONT R-CH(-) GRY/BLK
REAR R-CH(+) PUR
REAR R-CH(-) PUR/BLK
BACK UP YEL
ABCDEFG
H
IJKLMNO
P
Extension lead
(653-0428-46)
FUSE(15A) 120-0150-00
BACK UP (YEL)H GND (BLK)
REAR R-CH(+) (PUR)
FRONT R-CH(+) (GRY) FRONT L-CH(+) (WHT) FRONT L-CH(-) (WHT/BLK) REAR L-CH(+) (GRN) REAR L-CH(-) (GRN/BLK)
FRONT R-CH(-) (GRY/BLK) REMOTE (BLU/WHT) ILLUMI (ORG/WHT)
REAR R-CH(-) (PUR/BLK)
ACC (RED)
To PC01 of Sub PWB
(page 22)
Flex PWB
(653-0428-01)
To P901 of Display PWB
(page 25)
To Servo PWB
(page 27)
Line OUT Lch(WHT)
AUX IN Rch(RED)
AUX IN Lch(WHT)
TOP SIDE
BOTTOM SIDE
COMPONENT SIDE
COMPONENT SIDE
IC501
IC361
Q363
Q631
Q361
Q366
Q601
Q612
Q611
Q624
IC631
Q643
Q621
Q646
(L-IN)(R-IN)(RL)(RR)
P K
G
F
N
E
M
D C
B
I
A
MODE
ST-BY
CA-IN
Q
1
S3
S2
S1
MAIN -
MAIN +
SUB -
SUB +
BLKRED
BLKRED
Flat cable
(653-0431-42)
Tape head
(653-0431-37)
Extension lead
(653-0431-47)
Main motor
(653-0431-34)
Sub motor
(653-0431-33)
CA-IN MAIN + SUB + MODE PHOTO MAIN - SUB - ST-BY D-GND ANODE
1
10
Cassette tape mechanism
Cassette tape mechanism
Reel PWB(B7)
Sub PWB(B2) section 2/2
Reel PWB(B7) section
