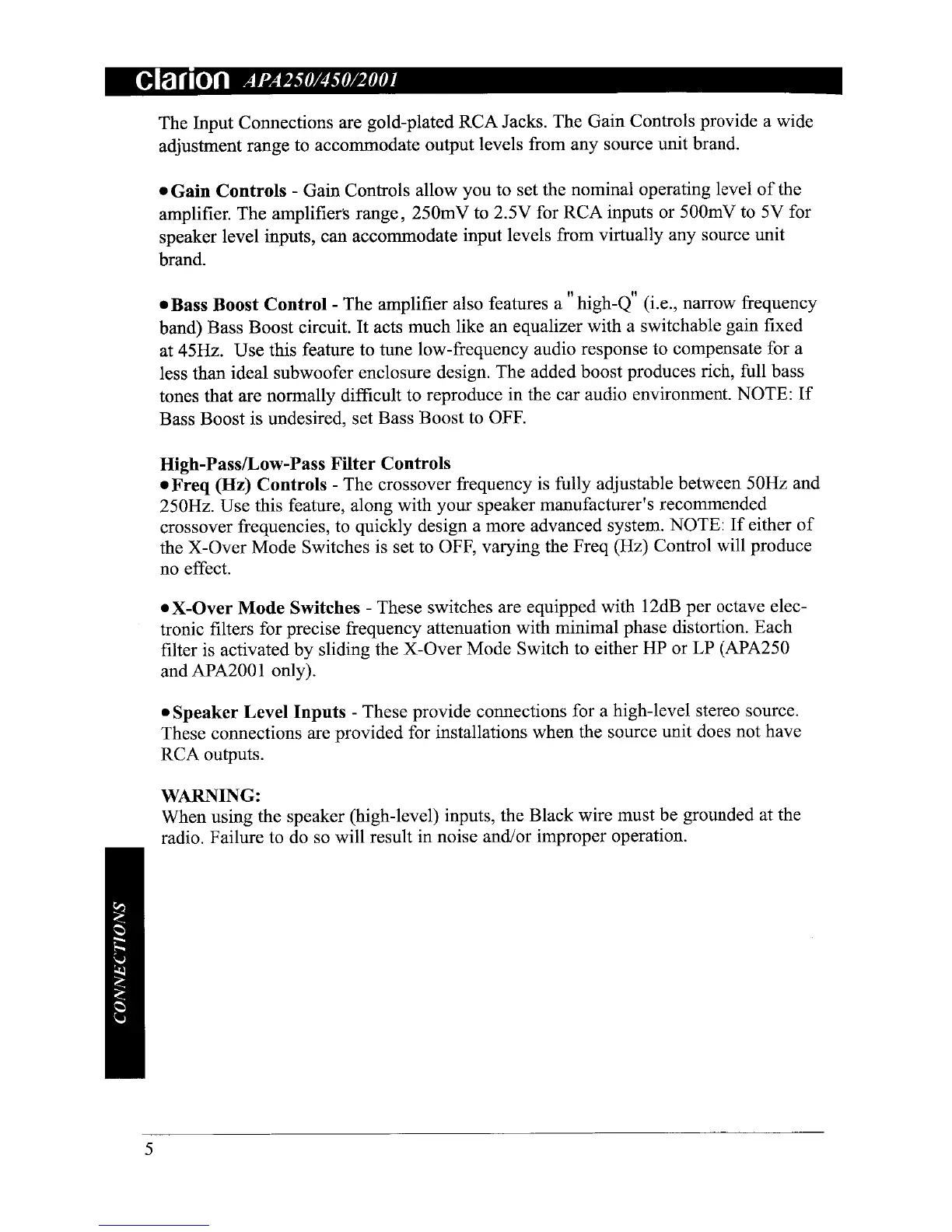

The Input Connections are gold-plated RCA Jacks. The Gain Controls provide a wide
adjustment range to accommodate output levels from any source unit brand.
•
Gain
Controls - Gain Controls allow you to set the nominal operating level
of
the
amplifier. The amplifiers range, 250mV to 2.5V for RCA inputs or 500mV to 5V for
speaker level inputs, can accommodate input levels from virtually any source unit
brand.
• Bass Boost
Control
- The amplifier also features a "high-Q" (i.e., narrow frequency
band) Bass Boost circuit.
It
acts much like an equalizer with a switchable gain fixed
at 45Hz. Use this feature to tune low-frequency audio response to compensate for a
less than ideal subwoofer enclosure design. The added boost produces rich, full bass
tones that are normally difficult to reproduce in the car audio environment. NOTE:
If
Bass Boost is undesired, set Bass Boost
to
OFF.
High-PassILow-Pass
Filter
Controls
•
Freq
(Hz) Controls - The crossover frequency
is
fully adjustable between 50Hz and
250Hz. Use this feature, along with your speaker manufacturer's recommended
crossover frequencies, to quickly design a more advanced system. NOTE:
If
either
of
the X-Over Mode Switches is set to
OFF,
varying the Freq (Hz) Control will produce
no effect.
• X-Over Mode Switches - These switches are equipped with 12dB per octave elec-
tronic filters for precise frequency attenuation with minimal phase distortion. Each
filter is activated by sliding the X-Over Mode Switch to either HP or LP (APA250
and APA2001 only).
•
Speaker
Level
Inputs
- These provide connections for a high-level stereo source.
These connections are provided for installations when the source unit does not have
RCA outputs.
WARNING:
When using the speaker (high-level) inputs, the Black wire must be grounded at the
radio. Failure to do
so
will result in noise and/or improper operation.
