INSTALLATION
Wiring Precautions (Continued)
Caution: Clarion's Antenna/Amp output is restricted to 500 mA (MAXIMUM).
Do not replace the 0.5 A fuse with a higher value or you will damage
the unit. If more current is required when installing multiple amplifiers,
use this relay circuit.

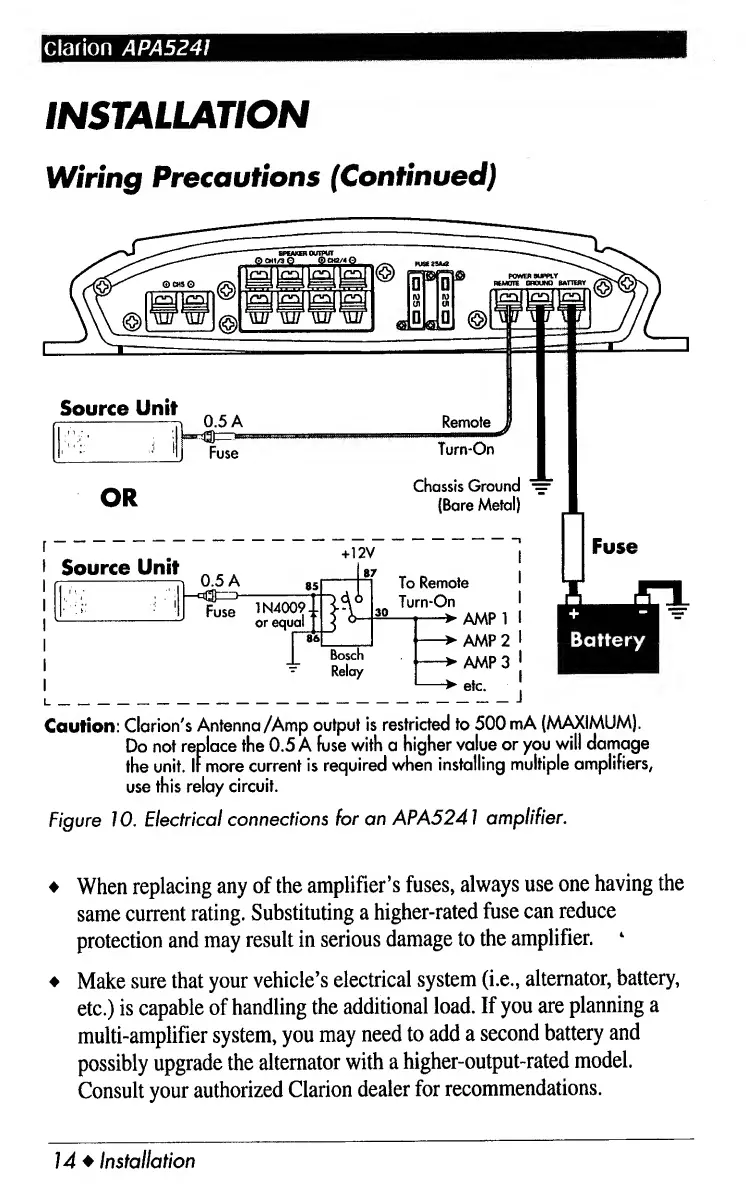

Figure 10. Electrical connections for an APA5241 amplifier.
♦ When replacing any of the amplifier’s fuses, always use one having the
same current rating. Substituting a higher-rated fuse can reduce
protection and may result in serious damage to the amplifier. 1
♦ Make sure that your vehicle’s electrical system (i.e., alternator, battery,
etc.) is capable of handling the additional load. If you are planning a
multi-amplifier system, you may need to add a second battery and
possibly upgrade the alternator with a higher-output-rated model.
Consult your authorized Clarion dealer for recommendations.
14 ♦ Installation

Clarion APA5241 Specifications

Power Specifications

maximum power output	550 watts
continuous average power output (channels 1-4)	35 watts x 4 into 4 ohms
continuous average power output (bridged)	90 watts x 2 into 4 ohms
continuous average power output (channel 5)	100 watts x 1 into 4 ohms

Performance Specifications

frequency response	10 Hz to 50 kHz
signal-to-noise ratio	100 dB or better
input sensitivity (low-level RCA)	200 mV to 5 V
input sensitivity (speaker-level)	400 mV to 10 V

Electrical Specifications

current use	< 45 amps
speaker load capacity (channels 1-4)	2 ohms stereo
speaker load capacity (channel 5)	4 ohms mono

Weight and Dimensions

dimensions	230 mm x 47.5 mm x 400 mm
