Clarion APA524I

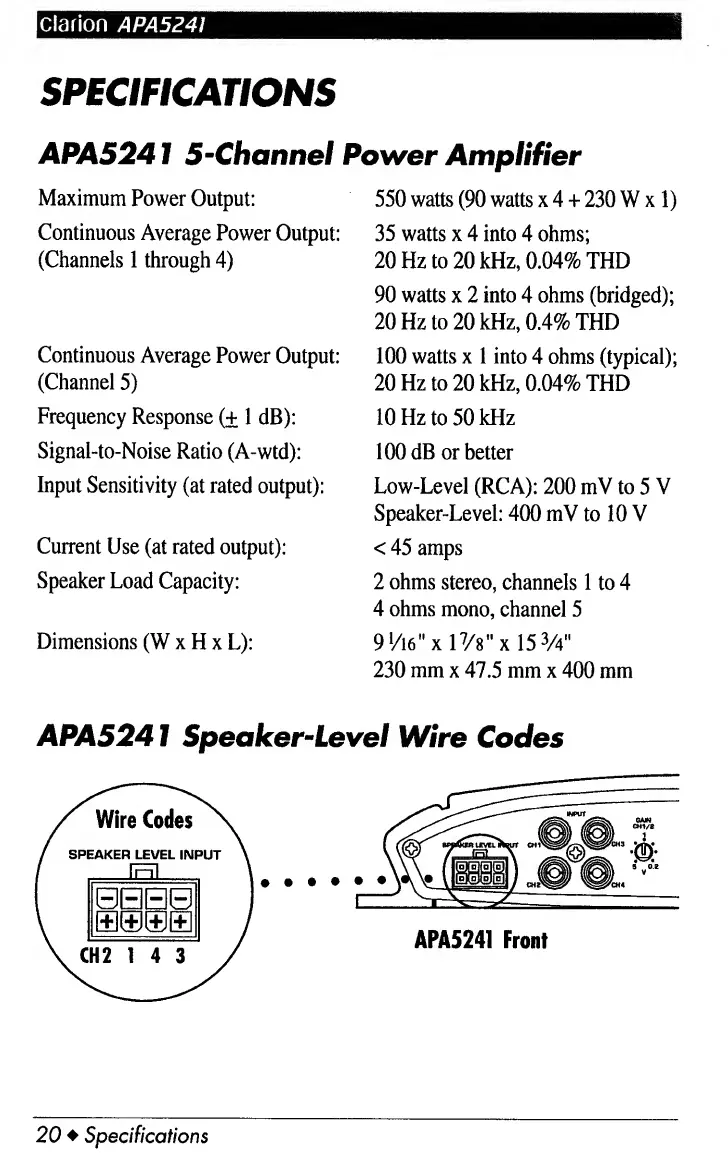

SPECIFICATIONS
APA5241 5-Channel Power Amplifier
550 watts (90 watts x 4 + 230 W x 1)
Maximum Power Output:
Continuous Average Power Output:
(Channels 1 through 4)
Continuous Average Power Output:
(Channel 5)
Frequency Response (+ 1 dB):
Signal-to-Noise Ratio (A-wtd):
Input Sensitivity (at rated output):
Current Use (at rated output):
Speaker Load Capacity:
Dimensions (W x H x L):
35 watts x 4 into 4 ohms;
20 Hz to 20 kHz, 0.04% THD
90 watts x 2 into 4 ohms (bridged);
20 Hz to 20 kHz, 0.4% THD
100 watts x 1 into 4 ohms (typical);
20 Hz to 20 kHz, 0.04% THD
10 Hz to 50 kHz
100 dB or better
Low-Level (RCA): 200 mV to 5 V
Speaker-Level: 400 mV to 10 V
< 45 amps
2 ohms stereo, channels 1 to 4
4 ohms mono, channel 5
91 /16"X 17/8" X 153/4"
230 mm x 47.5 mm x 400 mm
APA5241 Speaker-Level Wire Codes
20 ♦ Specifications

Clarion APA5241 Specifications

Power Specifications

maximum power output	550 watts
continuous average power output (channels 1-4)	35 watts x 4 into 4 ohms
continuous average power output (bridged)	90 watts x 2 into 4 ohms
continuous average power output (channel 5)	100 watts x 1 into 4 ohms

Performance Specifications

frequency response	10 Hz to 50 kHz
signal-to-noise ratio	100 dB or better
input sensitivity (low-level RCA)	200 mV to 5 V
input sensitivity (speaker-level)	400 mV to 10 V

Electrical Specifications

current use	< 45 amps
speaker load capacity (channels 1-4)	2 ohms stereo
speaker load capacity (channel 5)	4 ohms mono

Weight and Dimensions

dimensions	230 mm x 47.5 mm x 400 mm
