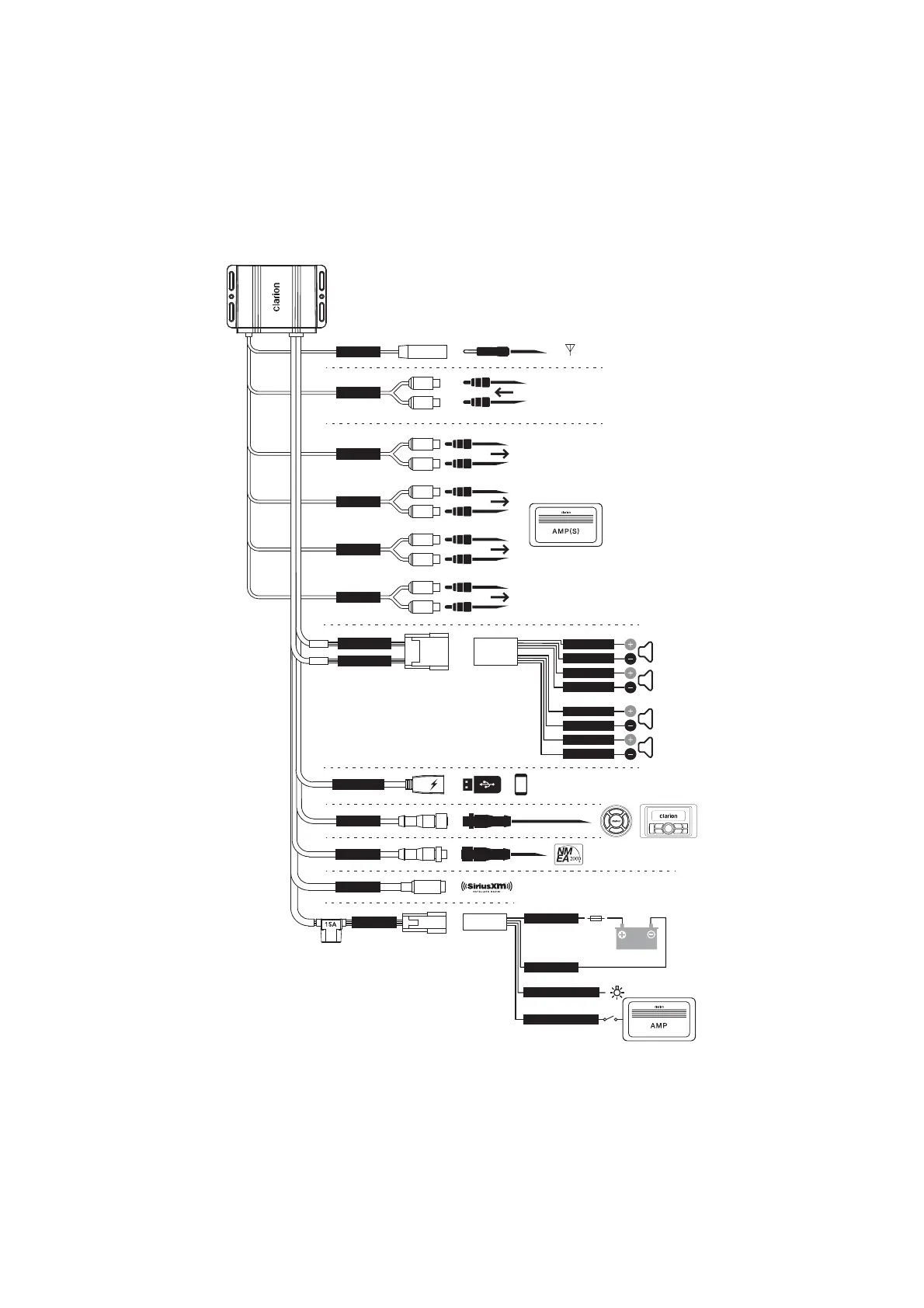

Clarion CMM-30BB - System Wiring Diagram

5
AM FM
AUX
2.1A
ILLUMINATION (OR) +
GROUND (BK) −
AMP TURN-ON (BL) +
+12 V
(10 - 16V DC)
15A
+12V DC (RD) +
(≥iPhone SE)
L (BK)
R (RD)
L (BK)
R (RD)
Z1 SPKR OUT
Z2 SPKR OUT
Z1 L+ (WH)
Z1 L− (WH/BK)
Z1 R+ (GY)
Z1 R− (GY/BK)
Z2 L+ (GN)
Z2 L− (GN/BK)
Z2 R+ (VI)
Z2 R− (VI/BK)
L (BK)
R (RD)
L (BK)
R (RD)
L (BK)
R (RD)
REMOTE
NMEA LEN 1
SIRIUSXM
POWER
USB
ANT
AUX IN
ZONE 4
ZONE 1
ZONE 2
ZONE 3
