Clarion CMS2 User Manual

English
Owner’s Manual
CMS2
20

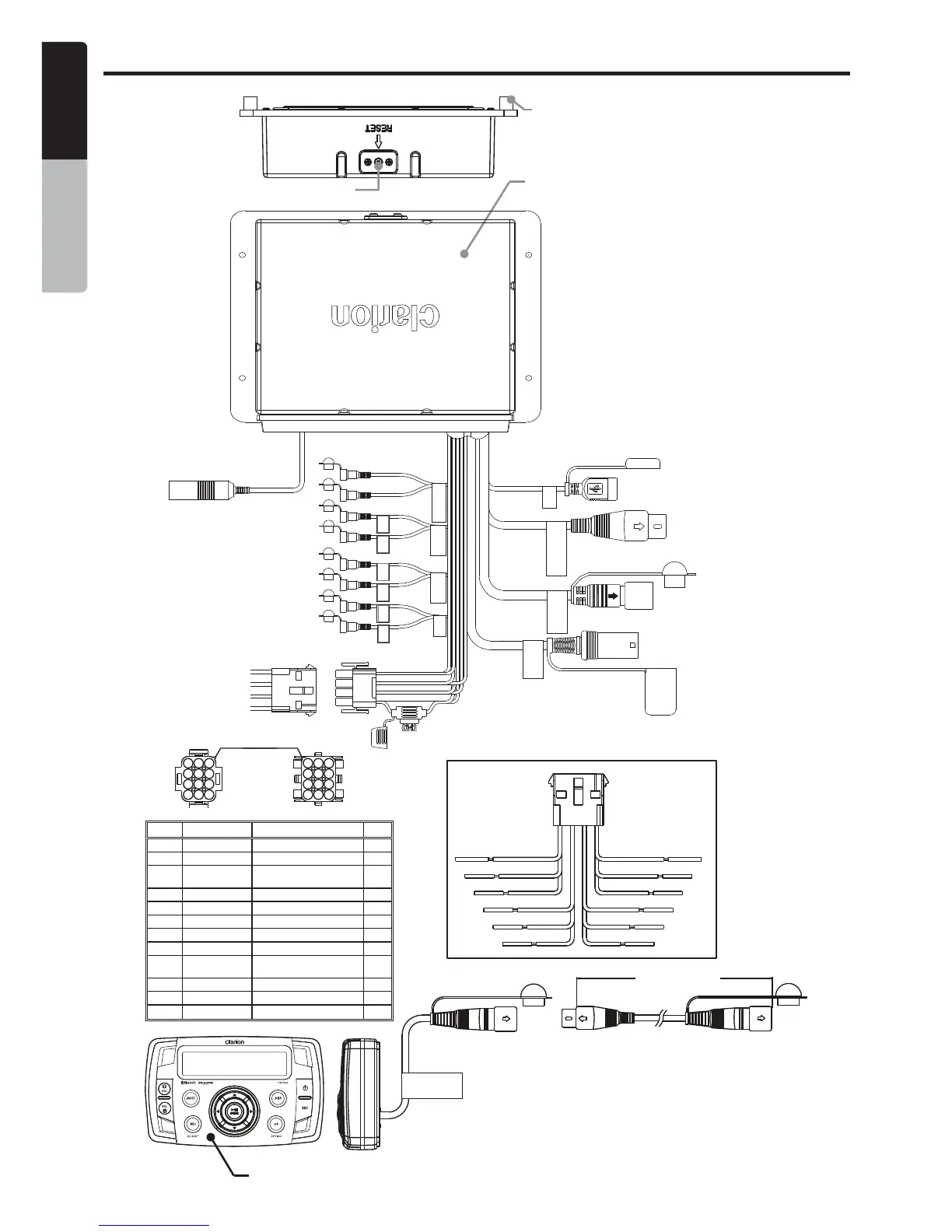

5. WIRE CONNECTION
RUBBER STOPPER
BLACK BOX
RESET BUTTON
BLACK
ANTENNA
WHITE
L-CH
LINE OUT
LEFT
LINE OUT
LEFT
LINE OUT
RIGHT
LINE OUT
RIGHT
AUX IN
LEFT
AUX IN
RIGHT
L-CHL-CH L-CHR-CH
SUBWOOFER
USB
DISPLAY
CONTROLLER
SIRIUS XM
WIRED
REMOTE
REAR
CHANNEL
FRONT
CHANNEL
AUX
R-CHR-CH R-CH
WHITE
BLACK
PURPLE
BLACK
BLACK
BLACK
BLACK
GREY
RED
WHITE
12 PIN MOLEX Connector
12 PIN MOLEX Connector
Wire Code
BLACK RED
GREEN/BLACK
GREEN
ORANGE/WHITE
WHITE/BLACK
WHITE
3048mm (10 feet)
Female
DISPLAY CONTROLLER
DISPLAY
CONTROLLER
Female
Male Big 8Din Cable
PURPLE/BLACK
PURPLE
BLUE/WHITE
GREY/BLACK
GREY
ORIENTATION
SECTION A-A SECTION B-B
RED
FUSE
15A
WHITE
RED
RED
RED
RED
PIN NO. WIRE COLOR WIRE DEFINTION AWG

GREEN SPEAKER REAR LEFT (+) 20

GREEN/BLACK SPEAKER REAR LEFT (-) 20

RED ACCESSORY/IGNITION
SWITCHED (+12V)
16

WHITE SPEAKER FRONT LEFT (+) 20

WHITE/BLACK SPEAKER FRONT LEFT (-) 20

ORANGE/WHITE ILLUMINATION 20

GREY SPEAKER FRONT RIGHT (+) 20

GREY/BLACK SPEAKER FRONT RIGHT (-) 20

BLUE/WHITE AMPLIFIER REMOTE
TURN ON (+)
20

PURPLE SPEAKER REAR RIGHT (+) 20

PURPLE/BLACK SPEAKER REAR RIGHT (-) 20

BLACK GROUND (-) 16

Clarion CMS2 Specifications

General

Tuner type	Digital
AM band range	530 - 1710 kHz
FM band range	87.9 - 107.9 MHz
Internet radio	No
Supported radio bands	AM, FM
Backlight	Yes
Product color	Black, Silver
Package depth	172.2 mm
Package width	147.5 mm
Package height	51.3 mm
