Clarion CZ205 Owner's Manual & Installation Manual

English
17
CZ205
Radio Antenna
(Red) Front Line out R
(Red) Rear Line out R /
Subwoofer output 2
Front Line out L (White)
Rear Line out L (White) /
Subwoofer output 1
SWI (Steering Wheel Interface)

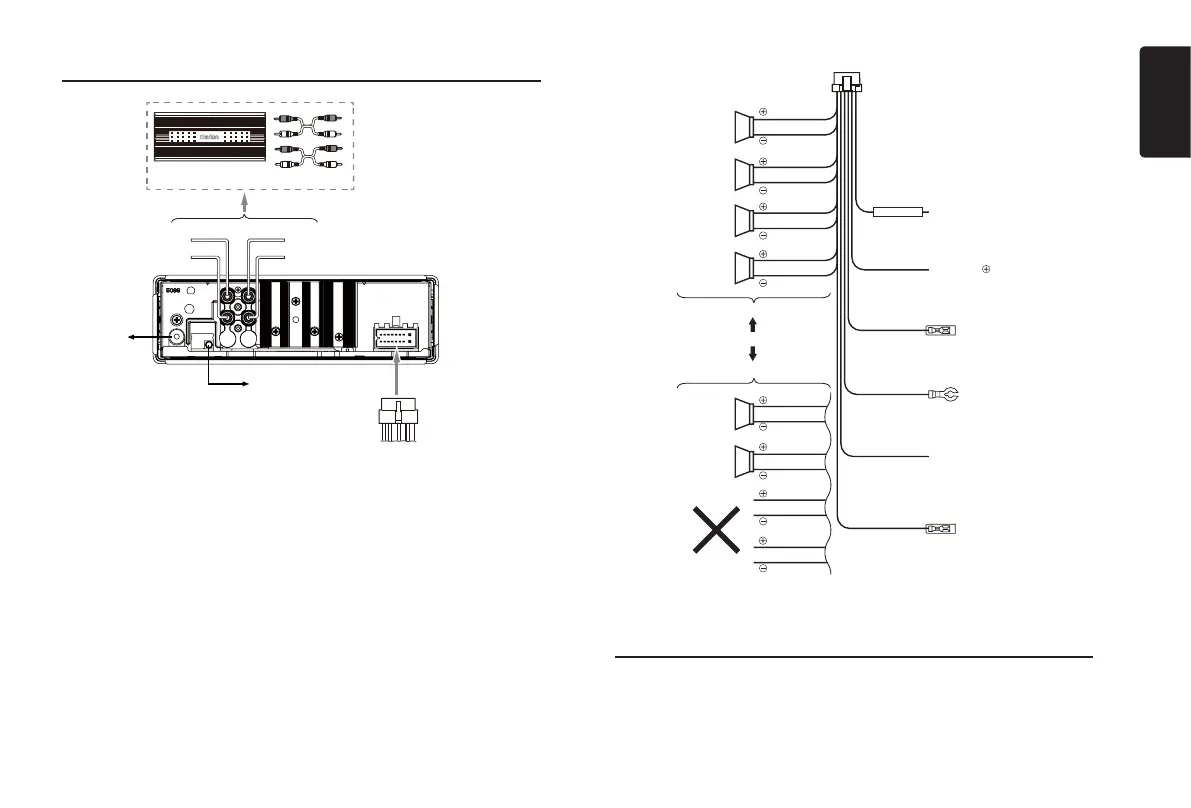

7) Wiring and Connections
• Connecting to the external amplifi er
External amplifi ers can be connected to the 4 channel RCA output connections.
Ensure that the connectors are not grounded or shorted to prevent damage to the
unit.
8) Connecting the accessories
16-Pin Connector Extension Lead
(attached to the source unit)
Yellow wire (Memory back-up lead)
Red wire (Power lead)
Blue/White wire (Amplifi er turn-on lead)
Black wire (Ground lead)
Orange/White wire (Illumination lead)
Connect to remote turn-on lead of amplifi er
Connect to chassis ground
Connect it to the power supply terminal
for illumination
Connect directly to battery
Accessory
12V
Front Right
Front Right
Gray
Gray
White
White
Purple
Purple
Green
Green
Gray/Black
Gray/Black
White/Black
White/Black
Purple/Black
Purple/Black
Green/Black
Green/Black
4-Speaker system
2-Speaker system
or
Rear Right
Rear Left
Not used.
Insulate each wire
Front Left
Front Left
FUSE 15A
4 Channel Amplifi er
Refer to the right
Blue wire (Auto antenna lead)
Connect it to the car power supply terminal
for antenna
