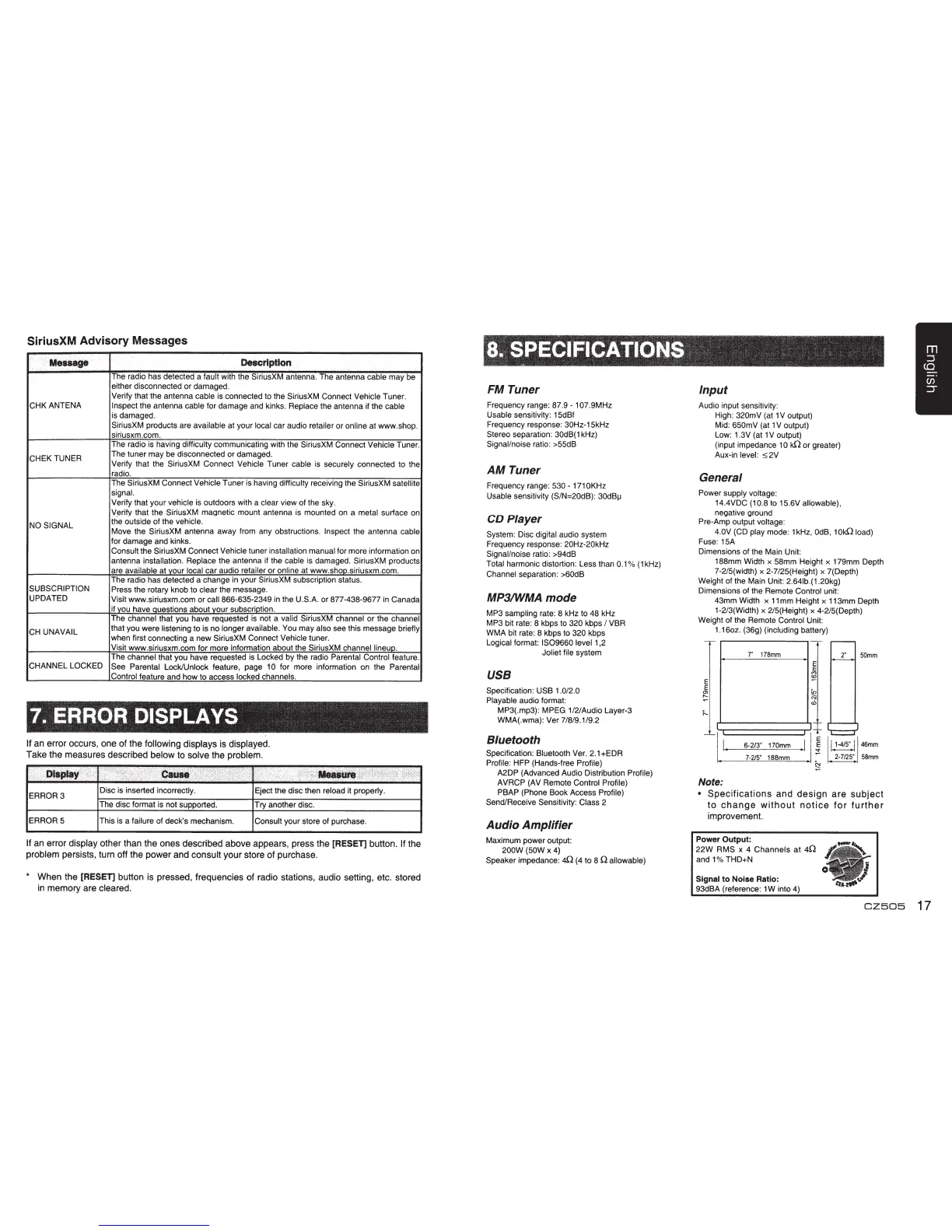

SiriusXM Advisory Messages
I
••••se
Detcrlptlon
...
The radio has detected a
fault
with the SiriusXM antenna. The antenna
cable
may be
either disconnected or damaged.
Verify that the antenna
cable is connected to the SiriusXM Connect
Vehicle
Tuner.
CHKANTENA
Inspect
the antenna
cable for damage and kinks. Replace
the antenna if the
cable
is damaged.
SiriusXM products are
available
at your local
car audio
retailer
or
online
at www.shop.
siriusxm.com.
The radio
is
having
difficulty
communicating with the SiriusXM Connect
Vehicle
Tuner.
CHEKTUNER
The tuner may be disconnected
or
damaged.
Verify that the SiriusXM Connect
Vehicle Tuner
cable
is
securely
connected to the
radio.
The SiriusXM Connect
Vehicle
Tuner is having
difficulty
receiving the SiriusXM
satellite
signal.
Verify that your
vehicle
is outdoors with a
clear
view of the sky.
Verify that the SiriusXM magnetic mount antenna
is
mounted on a
metal
surface on
NO SIGNAL
the
outside of the
vehicle.
Move the SiriusXM antenna away from any obstructions.
Inspect
the antenna
cable
for damage and kinks.
Consult
the SiriusXM Connect
Vehicle
tuner installation
manual
for more information on
antenna installation.
Replace
the antenna if the
cable
is
damaged. SiriusXM products
are
available
at your local
car audio
retailer
or
online
at www.shop.siriusxm.com.
The radio has detected a change
in
your SiriusXM subscription status.
SUBSCRIPTION
Press the rotary knob to
clear
the message.
UPDATED
Visit www.siriusxm.com or
call 866-635-2349
in
the
U.S.A.
or 877-438-9677
in
Canada
if you have auestions about your subscriotion.
The
channel that you have requested is not a
valid
SiriusXM
channel
or the
channel
CH
UNAVAIL
that you were
listening
to is no
longer available.
You may
also see this message
briefly
when first connecting a new SiriusXM Connect
Vehicle tuner.
Visit www.siriusxm.com for more information about the SiriusXM
channellineuo.
The
channel
that you have requested is Locked by the radio Parental Control
feature.
CHANNEL
LOCKED
See Parental Lock/Unlock feature, page
1 0
for more information on the
Parental
Control
feature and how to access
locked channels.
7.
ERROR
DISPLA
VS
If an error occurs, one of the following displays is
displayed.
Take the measures described
below to
solve
the
problem.
ERROR
5 This
is
a
failure of deck's mechanism.
Consult
your store of purchase.
If
an
error
display
other than the ones described above appears, press the
[RESET]
button.
If
the
problem
persists, turn off the power and
consult
your store of purchase.
*
When the
[RESET]
button is pressed, frequencies of radio stations, audio setting, etc. stored
in
memory are
cleared.
8.,
SPECIFICATIONS
FM Tuner
Frequency range: 87.
9-
107.9MHz
Usable
sensitivity: 15dBf
Frequency response: 30Hz-15kHz
Stereo
separation: 30dB(1 kHz)
Signal/noise
ratio: >55dB
AM
Tuner
Frequency range: 530 - 171OKHz
Usable
sensitivity (S/N=20dB):
30dB~
CD Player
System:
Disc
digital
audio system
Frequency response: 20Hz-20kHz
Signal/noise
ratio: >94dB
Total harmonic distortion: Less than 0.1% (1kHz)
Channel
separation: >60dB
MP3/WMA mode
MP3
sampling
rate:
8 kHz to 48 kHz
MP3 bit rate: 8 kbps to 320 kbps
I
VBR
WMA bit rate: 8 kbps to 320 kbps
Logical
format:
IS09660
level
1 ,2
Joliet file
system
USB
Specification: USB
1.0/2.0
Playable
audio format:
MP3(.mp3): MPEG 1/2/Audio Layer-3
WMA(.wma): Ver 7/8/9.1/9.2
Bluetooth
Specification:
Bluetooth
Ver.
2.1
+EDR
Profile: HFP (Hands-tree
Profile)
A2DP (Advanced Audio
Distribution
Profile)
AVRCP (AV Remote
Control Profile)
PBAP (Phone Book Access
Profile)
Send/Receive Sensitivity: Class
2
Audio Amplifier
Maximum power output:
200W
(SOW
X
4)
Speaker
impedance:
40
(4 to 8
Q
allowable)
Input
Audio input sensitivity:
High: 320mV (at 1
V
output)
Mid: 650mV (at 1
V
output)
Low: 1.3V (at 1
V
output)
(input impedance 1
0
kO
or
greater)
Aux-in level:
~2V
General
Power
supply voltage:
14.4VDC (10.8 to 15.6V
allowable),
negative ground
Pre-Amp output
voltage:
4.0V (CD play
mode: 1kHz,
OdB,
1
01<0
load)
Fuse: 15A
Dimensions of the Main Unit:
188mm Width x 58mm Height x 179mm Depth
7-2/S(width) x 2-7/25(Height) x ?(Depth)
Weight of the Main Unit: 2.641b.(1.20kg)
Dimensions of the Remote
Control
unit:
43mm Width x
11
mm Height x 113mm Depth
1-2/3(Width) x 2/S(Height) x 4-2/S(Depth)
Weight of the Remote
Control
Unit:
1.16oz. (36g)
(including
battery)
E
E
(])
,.._
II.
Note:
7"
178mm
6-2/3" 170mm
7-2/5"
188mm
E
E
C")
~
~
<h
.I
E
E
~
50mm
46mm
58mm
•
Specifications
and
design
are
subject
to
change
without
notice
for
further
improvement.
Power Output:
22W
RMS
x
4
Channels
at
4Q
and 1% THD+N
Signal
to Noise Ratio:
93dBA (reference: 1W into 4)
CZ505
