Clarion DB135 Service Manual

38 621-0621-20 THREAD GEAR B 1
39 621-0622-21 ROLLER SLEEVE 2
40 621-0623-22 LS-HOLDER 1
41 621-0624-22 GUIDE RAIL 1
42 816-2593-00 LEAD WIRE(PUR) 1
43 816-2542-01 FLAT WIRE(10P) 1
44 716-3473-00 SCREW 2
45 621-0709-20 SH-BASE 1
46 621-0629-20 LOADING ROLLER 2
47 345-8704-20 CUSHION RUBBER 1
48 622-1660-20 ROLLER SHAFT 1
49 624-0018-01 LEAD SCREW 1
50 629-0081-20 DAMPER F 2
51 629-0082-20 DAMPER R 1
52 714-2003-81 MACHINE SCREW 2
53 716-1507-00 SCREW 9
54 716-1733-00 SCREW 2
55 716-3469-00 SCREW 2
56 716-3446-00 SCREW 2
57 750-3465-21 ROLLER SPRING L 1
58 750-3466-20 ROLLER SPRING R 1
59 750-3467-21 SHIFT SPRING 1
60 750-3468-20 RACK SPRING 1
61 750-3469-20 CLAMPER SPRING 1
62 750-3470-20 ID-LOCK SPRING 1
63 816-2592-00 LEAD WIRE(BLU) 1
64 750-3472-21 DR-SPRING F 2
65 750-3473-20 DR-SPRING RA 1
66 750-3474-20 DR-SPRING RB 1
67 750-3475-21 DR-SPRING C 1
68 620-1023-23 CLAMPER PLATE 1
69 620-1024-23 SENSOR ARM 1
70 621-0708-20 CLAMPER RING 1
71 621-0626-21 STOPPER LINK 1
72 621-0627-21 DISC STOPPER 1
73 750-3471-20 SENSOR SPRING 1
1 966-0595-25 DRIVE PLATE ASSY 1
2 969-0060-30 PICK UP UNIT 1
3 039-1944-21 LED PWB(WITHOUT COMPONENT) 1
4 039-1945-20 CD PWB(WITHOUT COMPONENT) 1
5 SMA-182-100 MOTOR ASSY(SPINDLE) 1
6 SMA-183-100 MOTOR ASSY(SLED) 1
7 620-1022-25 CLAMPER LINK 1
8 803-4906-60 VINYL COAT WIRE(ORG) 1
9 816-2591-00 LEAD WIRE(YEL) 1
10 620-1025-22 ID-LOCK PLATE 1
11 620-1026-21 SPRING PLATE 1
12 620-1027-26 LOWER CHASSIS 1
13 620-1028-23 UPPER CHASSIS 1
14 966-0638-20 SH-RACK ASSY 1
15 621-0598-26 UPPER GUIDE 1
16 621-0718-20 ROLLER GUIDE 1
17 621-0600-26 SHIFT LEVER 1
18 621-0601-21 RACK 1
19 621-0602-22 LOCK ARM L 1
20 621-0603-25 LOCK ARM R 1
21 621-0724-20 GEAR BASE 1
22 621-0605-22 GEAR COVER 1
23 621-0606-21 IDLE CASE 1
24 816-2590-00 VINYL COAT WIRE(GRN) 1
25 621-0608-21 SECOND GEAR 1
26 621-0609-20 BASE GEAR 1
27 621-0610-20 IDLE GEAR A 1
28 621-0611-20 IDLE GEAR B 1
29 621-0612-21 ROLLER GEAR A 1
30 621-0613-20 ROLLER GEAR B 1
31 621-0614-20 ROLLER GEAR C 1
32 621-0615-21 ROLLER GEAR D 1
33 621-0616-20 POWER GEAR A 1
34 621-0617-20 POWER GEAR B 1
35 621-0618-20 POWER GEAR C 1
36 621-0619-20 POWER GEAR D 1
37 621-0620-20 THREAD GEAR A 1
- 9 -
- 10 -

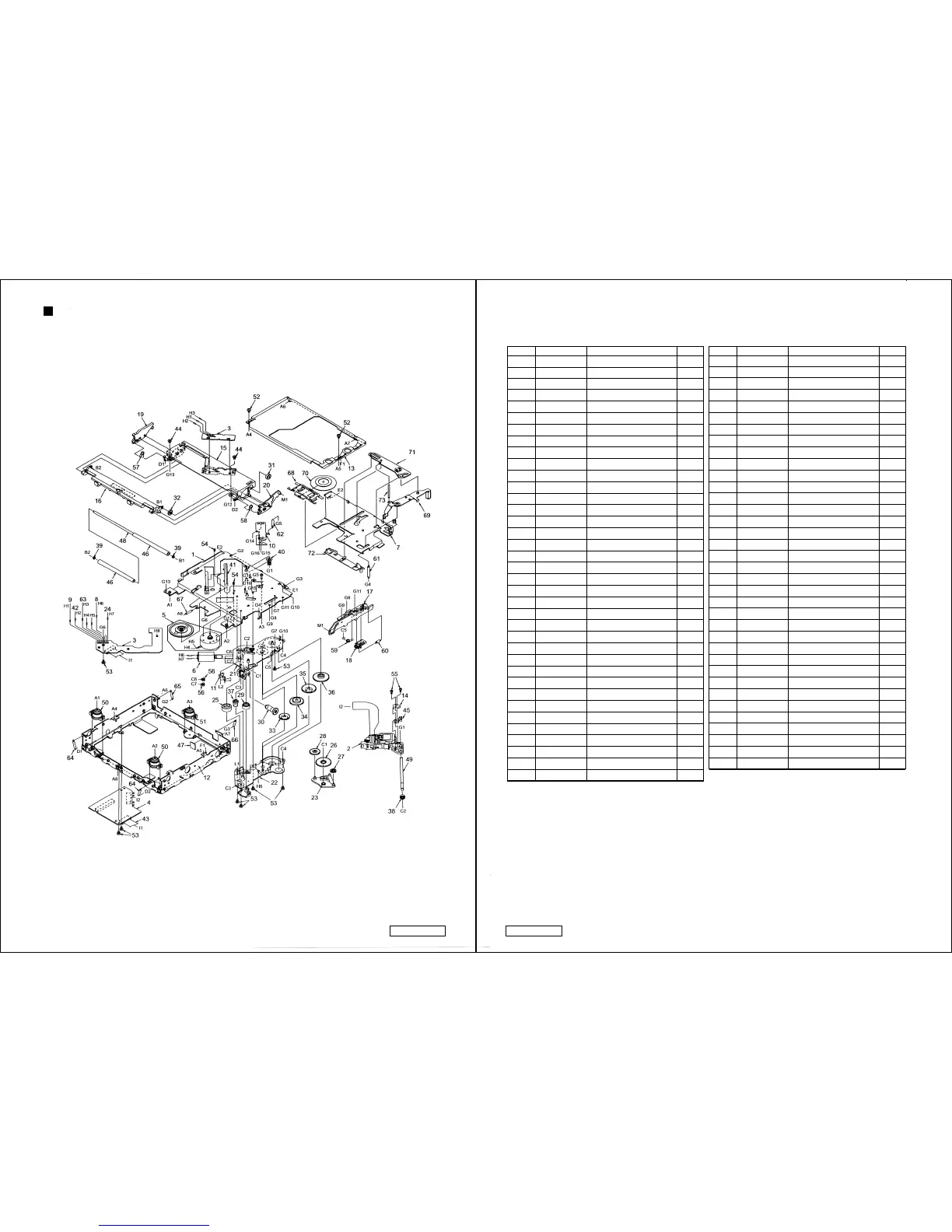

EXPLODED VIEW • PARTS LIST
CD mechanism section 929-0220-80
DB135 DB135
NO. PART NO. DESCRIPTION Q'TY NO. PART NO. DESCRIPTION Q'TY
