1
O.

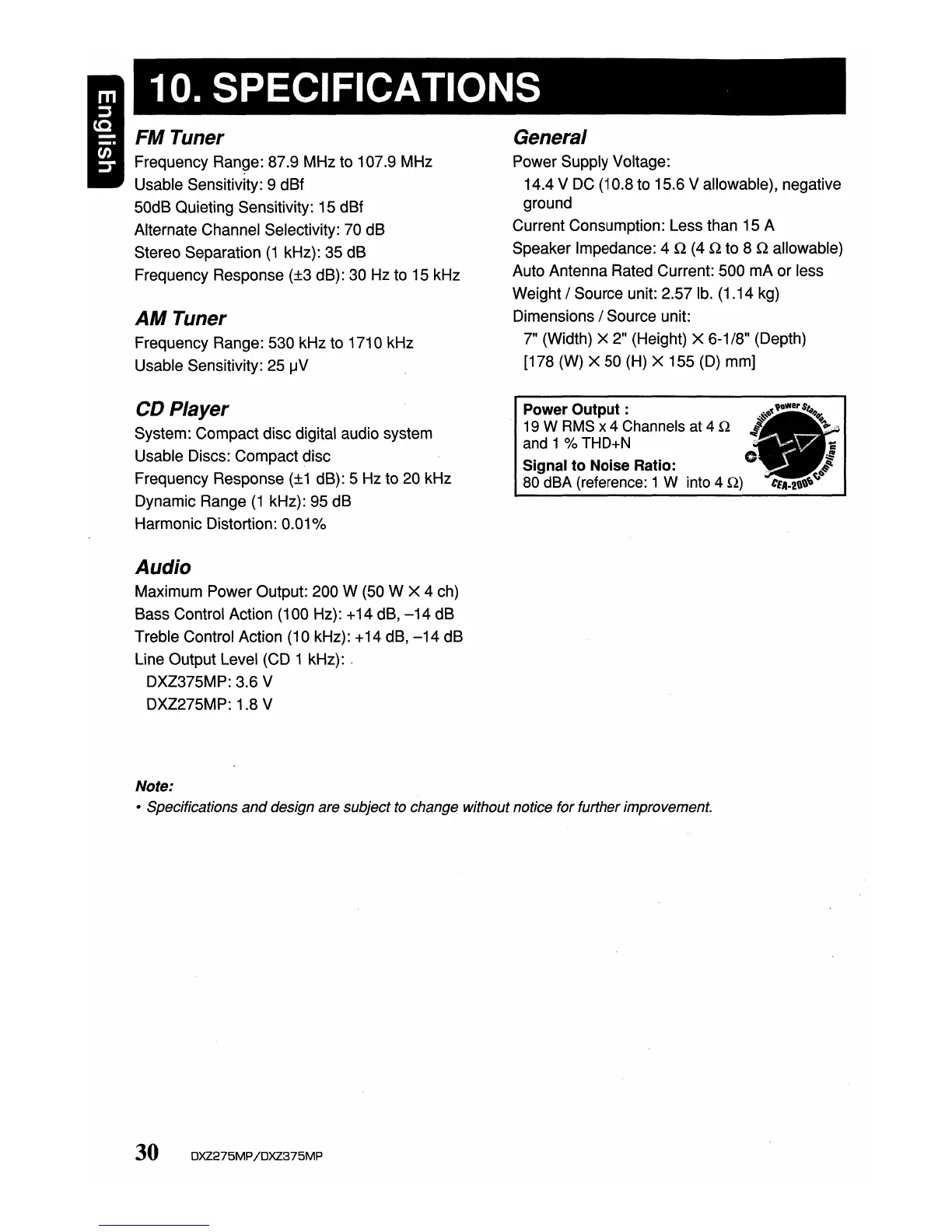

SPECIFICATIONS
FMTuner
Frequency
Ran~e:
87.9 MHz to 107.9 MHz
Usable Sensitivity: 9 dBf
50dB Quieting Sensitivity: 15 dBf
Alternate Channel Selectivity: 70 dB
Stereo Separation
(1
kHz): 35 dB
Frequency Response (±3 dB): 30 Hz to 15 kHz
AM
Tuner
Frequency Range: 530 kHz to
1710kHz
Usable Sensitivity: 25
~V
General
Power Supply Voltage:
14.4 V DC (10.8 to 15.6 V allowable), negative
ground
Current Consumption: Less than 15 A
Speaker Impedance: 4
Q (4 Q to 8 Q allowable)
Auto Antenna Rated Current: 500 mA or less
Weight / Source unit: 2.57 lb. (1.14 kg)
Dimensions / Source unit:
7" (Width)
X 2" (Height) X 6-1/8" (Depth)
[178 (W)
X 50 (H) X 155 (D) mm]
CO
Player
System: Compact disc digital audio system
Usable Discs: Compact disc
Frequency Response
(±1
dB): 5 Hz to 20 kHz
Dynamic Range
(1
kHz): 95 dB
Harmonic Distortion:
0.01
0
/0
Audio
Maximum Power Output: 200 W (50 W X 4 ch)
Bass Control Action (100 Hz): +14 dB,
-14
dB
Treble Control Action (10 kHz): +14 dB,
-14
dB
Line Output Level (CD 1 kHz): .
DXZ375MP: 3.6 V
DXZ275MP: 1.8 V
Power Output :
19 W RMS x4 Channels at 4 Q
and 1 % THD+N
Signal to Noise Ratio:
80 dBA (reference: 1 W into 4 Q)
Note:
• Specifications
and
design are subject to change without notice for further improvement.
30 DXZ275MP
/DXZ375MP
