Clarion M205 User Manual

'!~fils
i)(~~staJI~ti~n:
>
..
. ••
..
. ..
....
. . ·
··•
.. ·
..
·
···
·•··
··
··· ..
··.
.•
.
•.••
...•.•
~
:·.'::;
13.~@(eif}sfal/atiol1,please
make
sure
prope
connections
are
conducted
and
the unit operates
·
···
:niJrmally. :!mproperconnection
mayresultin
damage to. the unit.
•
(iJse
only
aecessories
designed
and
manufactured for this unit
and
other unauthorized
accessories
may.reslllt
in· damage
·
to
·the
unit.
> •
Before installation, please. fasten
all
power
cables.
•
DO
.
NOT
instal/the unit
in
the place where close to
hot
area to prevent damage to electrical
components
such
as
the
laser
head.
•• Install the
unit horizontally. Installing the unit more than
30
degree vertically
may
result in worse
performance.
·
··
. ·
• To prevent electric spark, connect the positive pole first
and
then the negative pole.

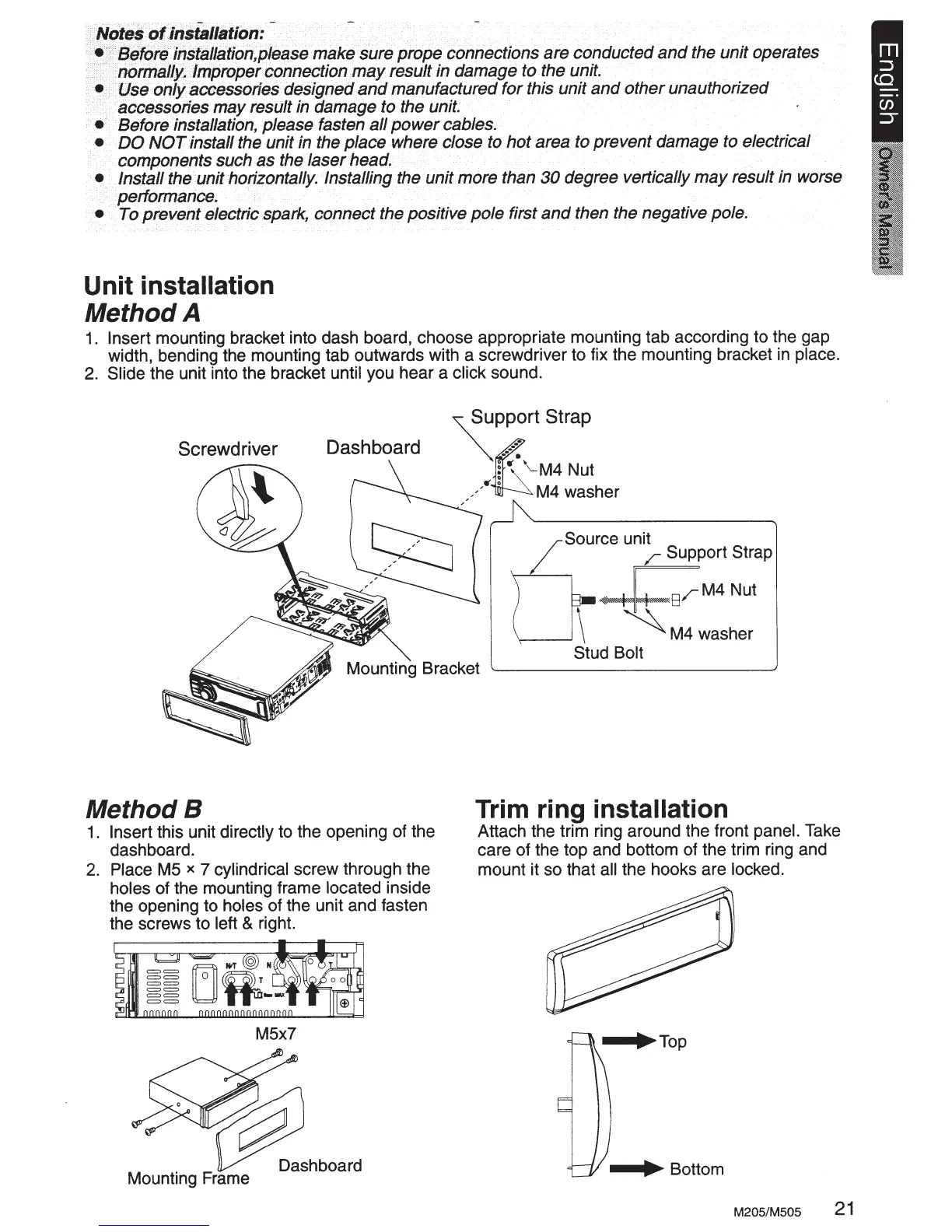

Unit installation
Method A
1.
Insert
mounting bracket
into dash board, choose appropriate mounting tab according to the gap
width, bending the mounting tab outwards with a screwdriver to fix the mounting bracket in
place.
2.
Slide
the unit into the bracket
until
you
hear
a
click
sound.
Screwdriver
Dashboard
Method B
1.
Insert
this unit
directly
to the opening of the
dashboard.
2.
Place
MS
x
7
cylindrical screw through the
holes
of the mounting frame
located
inside
the opening to
holes
of the unit and fasten
the screws to left & right.
M5x7
Source unit
,r
Support Strap
,
~+
~~ar
M4 Nut
'.,...-------1
\
~
M4 washer
Stud
Bolt
Trim ring
installation
Attach the trim ring around the front
panel.
Take
care
of
the top and bottom of the trim ring and
mount
it so that
all
the hooks are locked.
-~~-~Bottom
M205/M505
21

Clarion M205 Specifications

General

Brand	Clarion
Model	M205
Category	Car Receiver
Language	English
