Clarion M205 User Manual

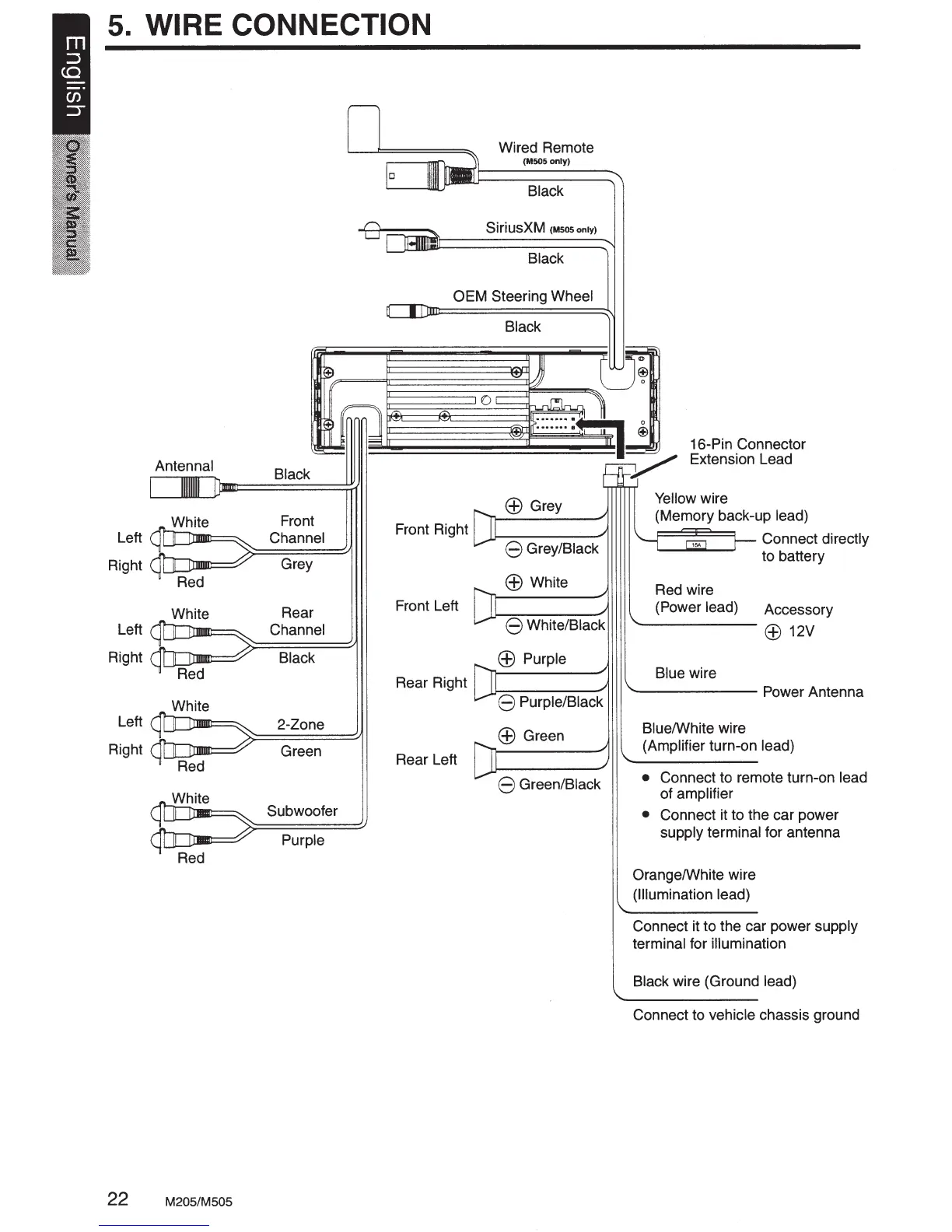

5. WIRE CONNECTION
Wired Remote
(M505only)
Black
SiriusXM
(M505 only)
Black
OEM Steering Wheel
Black
16-Pin Connector
Antenna!
Extension Lead
Black
(f) Grey
Yellow wire
Front
Front Right
(Memory back-up lead)
Left
Channel
Connect directly
8 Grey/Black
Grey
to battery
Right
(f) White
Red wire
Rear
Front Left
(Power lead)
Accessory
Left
Channel
8 White/Black
~ 12V
Right
Black
(f) Purple
Rear Right
Blue wire
8 Purple/Black
Power Antenna
Left
2-Zone
(f) Green
Blue/White wire
Right
Green
(Amplifier turn-on lead)
Rear Left
8 Green/Black
• Connect to remote turn-on lead
of amplifier
Subwoofer
• Connect it to the car power
Purple
supply terminal for antenna
Red
Orange/White wire
(Illumination lead)
Connect it to the car power supply
terminal for illumination
Black wire (Ground lead)
Connect to vehicle chassis ground
22 M205/M505
