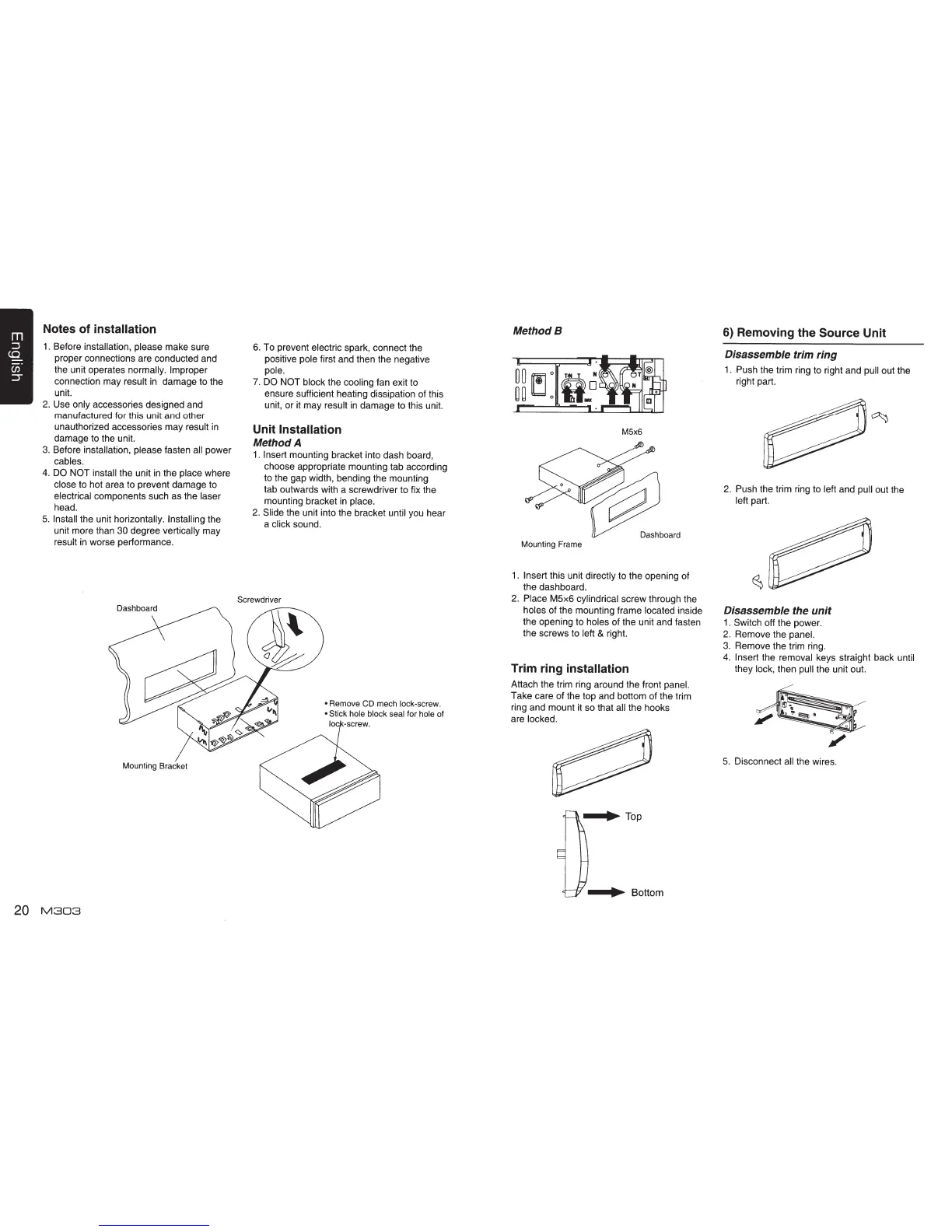

Clarion M303 User Manual

Notes of
installation
1.
Before installation, please
make sure
proper connections are
conducted and
the unit operates
normally. Improper
connection
may
result
in
damage
to
the
unit.
2.
Use
only
accessories designed and
manufactured for this unit
and
other
unauthorized accessories
may
result in
damage
to the unit.
3.
Before installation, please
fasten all
power
cables.
4.
DO
NOT
install
the unit in the
place where
close
to
hot area
to
prevent
damage
to
electrical
components such
as
the
laser
head.
5.
Install
the unit
horizontally. Installing
the
unit more than
30
degree
vertically
may
result in worse performance.
Mounting Bracket
20
M303
6.
To
prevent
electric spark, connect the
positive
pole
first and then the negative
pole.
7.
DO
NOT
block
the
cooling fan exit to
ensure
sufficient heating dissipation
of
this
unit,
or
it
may
result in
damage
to this unit.
Unit
Installation
Method A
1.
Insert
mounting bracket into dash board,
choose appropriate mounting tab according
to the gap width, bending the mounting
tab outwards with a screwdriver
to
fix the
mounting bracket in
place.
2.
Slide
the unit into the bracket
until you hear
a
click
sound.
Screwdriver
•
Remove CD mech
lock-screw.
•
Stick
hole block seal
for
hole
of
MethodS
M5x6
~
Mounting Frame
1.
Insert
this unit
directly
to the opening
of
the dashboard.
2.
Place
M5x6
cylindrical
screw through the
holes
of
the mounting frame
located
inside
the opening to
holes
of
the unit and fasten
the screws to
left
&
right.
Trim ring
installation
Attach the trim ring around the front
panel.
Take
care
of
the top
and
bottom of the trim
ring and mount it so that
all
the
hooks
are
locked.
_..Bottom
6) Removing the
Source
Unit
Disassemble trim ring
1 .
Push the trim ring to right
and
pull
out the
right part.
2.
Push
the trim ring to
left
and
pull
out the
left
part.
Disassemble the unit
1.
Switch off the power.
2. Remove the
panel.
3.
Remove the trim ring.
4.
Insert
the removal
keys straight back
until
they
lock,
then pull the unit out.
5.
Disconnect
all
the wires.
