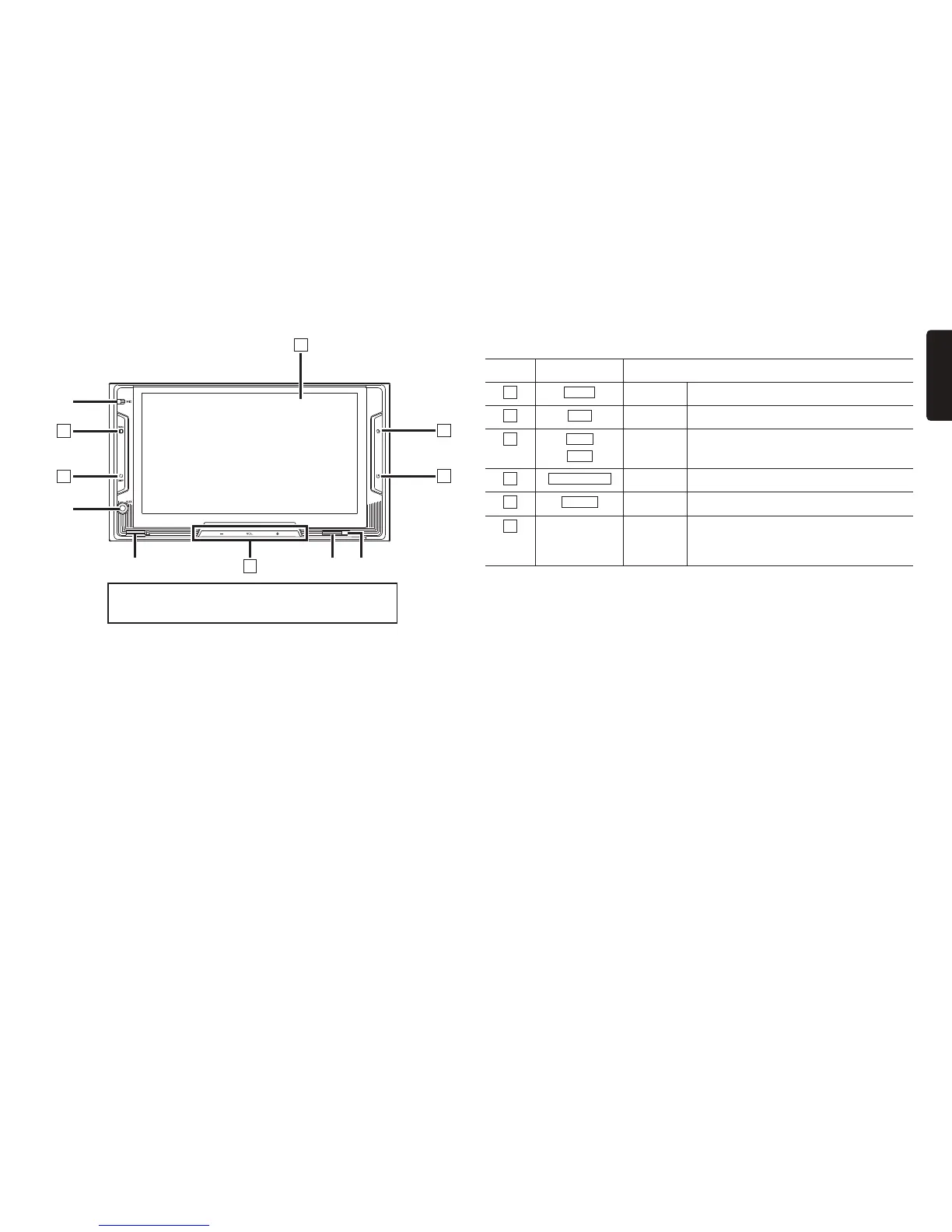

NX603/FX503 5

English

FX503

✽

Insert and remove the microSD card after turning off

the unit, because the microSD card might get damage.

✽

1 This is the built-in microphone. This is used as the microphone for the hands free function

when the unit is connected to a Bluetooth compatible cellphone by a wireless connection.

✽

2 This is the AUX terminal. Audio and video from external devices connected to this terminal can

be played when the audio mode is switched to AUX.

✽

3 This is where the microSD card is inserted to enjoy data in microSD cards.

✽

4 This is the remote control sensor. This receives the signal from the remote control (sold

separately).

✽

5 This is the Antitheft Indicator. This light blinks when the Antitheft Activation setting is set to “ON”

to indicate that the antitheft function is activated.

This document uses the following inline graphics and conventions to indicate operations

using the buttons on the operation panel.

Number Inline graphic Description of operation

Short press This displays the main menu screen.

DISP

Short press This switches to the audio screen.

VOL+

VOL-

Short press Use this to adjust the volume of the audio-

visual function.

Smart Access

Short press This starts up Smart Access.

POWER

Short press This turns off the screen.

— Touch This is the monitor and touch panel. This

functions as a touch panel by touching the

screen when it is displayed.

Clarion NX603 User Manual
