PN-2940S-A,
S-B,C,D,E,F
- 4 -
Main PWB
J1
CONNECTOR
19PIN
CD mechanism
MICOM
M30302MAP
IC9
EEPROM (2K)
BR93L56RFVM
IC7
P-ON1
10MHz
RESET
BD5227G
IC8
ACC
N-BUS
TX , RX , REQ
SYS ON REQ
VDD 3.3V IC4
J3
CONNECTOR
TH24
N-BUS
ACC9V Q3, Q4, Q5, D5
BUS BUFFER
CIRCUIT
Q8,Q13,Q15,Q16,Q17,
D7,D9,D11,D12
ACC-DET
D14, D15, Q22
SYS On Request
Q302,Q313, R352, TH301
+B
B/U-DET
BD5235G
IC6
VDDREF Q10, Q11
Sys On Req
OUT
ACC
POW-ON
Sys On Req
Control
Switch PWB
LED DRIVER
SERIAL/PARALEL
IC1, IC2
LED (RED)
D407 - 412
LED (ORG)
D401 - D406, D413 - D425
ILLUMI
CONTROL1
Q30, Q32
BU-
DET1
7.7V
KEY
LED-CNT
BUS
ILLUMI
CONTROL2
Q9,Q12,Q14,Q31
Control1
Control2
GND
/REQ
SCL
SDA
SPDIF
SYS-ACC
A-MUTE
B/U DET
RESET
SPDIF
/REQ
SCL
SDA
RESET
SYS-ACC
A-MUTE
SPDIF BUFFER
IC1, L4, Q6, Q7, L102
B/U FILTER
T1, C1
ACC4.1V IC5
POWER SUPPLY
UART
INT
KEY-INT
INT
J1
CONNECTOR
60PIN
DIMMER
PANEL SW
J1
CONNECTOR
40PIN
FPC
039-2977-00
LED (ORG)
D426, D427
EXPLODED VIEW / PARTS LIST
1 940-8180-00 ES-ASSY (PN-2940S-A) 1
940-8180-10 ES-ASSY (PN-2940S-B)
940-8180-20 ES-ASSY (PN-2940S-C)
940-8180-30 ES-ASSY (PN-2940S-D)
940-8180-42 ES-ASSY (PN-2940S-E)
940-8180-52 ES-ASSY (PN-2940S-F)
2 ----------- SWITCH PWB 1
3 013-6301-50 SWITCH 19
4 001-7093-92 LED(ORG) 23
5 001-7107-91 LED(RED) 6
6 074-1189-90 OUTLET SOCKET(40P) 1
7 073-0778-90 TERMINAL 1
8 016-7000-00 ROTARY ENCODER 1
9 345-6098-00 ILLUMI RUBBER A 1
10 345-6099-00 ILLUMI RUBBER B 1
11 345-6022-00 ILLUMI RUBBER C 1
12 345-6023-00 ILLUMI RUBBER D 1
13 382-8276-00 BUTTON(POWER) 1
14 335-8063-00 BUTTON HOLDER 1
15 380-5698-00 KNOB 1
16 335-8062-00 KNOB HOLDER 1
17 750-6844-00 SPRING 1
18 716-0778-51 WAVE SCREW(2 x 6) 12
19 714-2605-4B MACHINE SCREW(M2.5 x 6) 5
20 778-3006-51 SCREW(3 x 6) 3
21 311-1931-00 LOWER CASE 1
22 310-1841-00 UPPER CASE 1
23 309-0844-01 ES-PLATE 1
24 331-4305-00 MECH-BRKT(L) 1
25 331-4306-00 MECH-BRKT(R) 1
26 ----------- MAIN PWB 1
27 929-0383-80 CD-CHANGER-MODULE 1
28 331-4303-00 SIDE SPRING(L) 1
29 716-3570-00 REAR BOLT 1
30 345-5911-00 STOPPER 1
31 331-4302-00 CONNECTOR HOLDER 1
32 074-4011-24 OUTLET SOCKET 1
33 039-2977-00 FPC(WITHOUT COMPONENT) 1
34 714-2605-8B MACHINE SCREW(M2.6 x 5) 12
35 714-3006-4B MACHINE SCREW(M3 x 6) 2
36 716-3552-00 SCREW(M2.3 x 2.5) 6
37 716-0878-50 IT SCREW(M2.6 x 5) 5
38 714-2606-8H MACHINE SCREW(M2.6 x 6) 6
39 276-0322-00 SETPLATE (PN-2940S-A) 1
276-0322-01 SETPLATE (PN-2940S-B)
276-0322-02 SETPLATE (PN-2940S-C)
276-0322-03 SETPLATE (PN-2940S-D)
276-0322-04 SETPLATE (PN-2940S-E)
276-0322-05 SETPLATE (PN-2940S-F)
40 331-4304-00 SIDE SPRING(R) 1
41 331-4300-00 TR-HOLDER 1

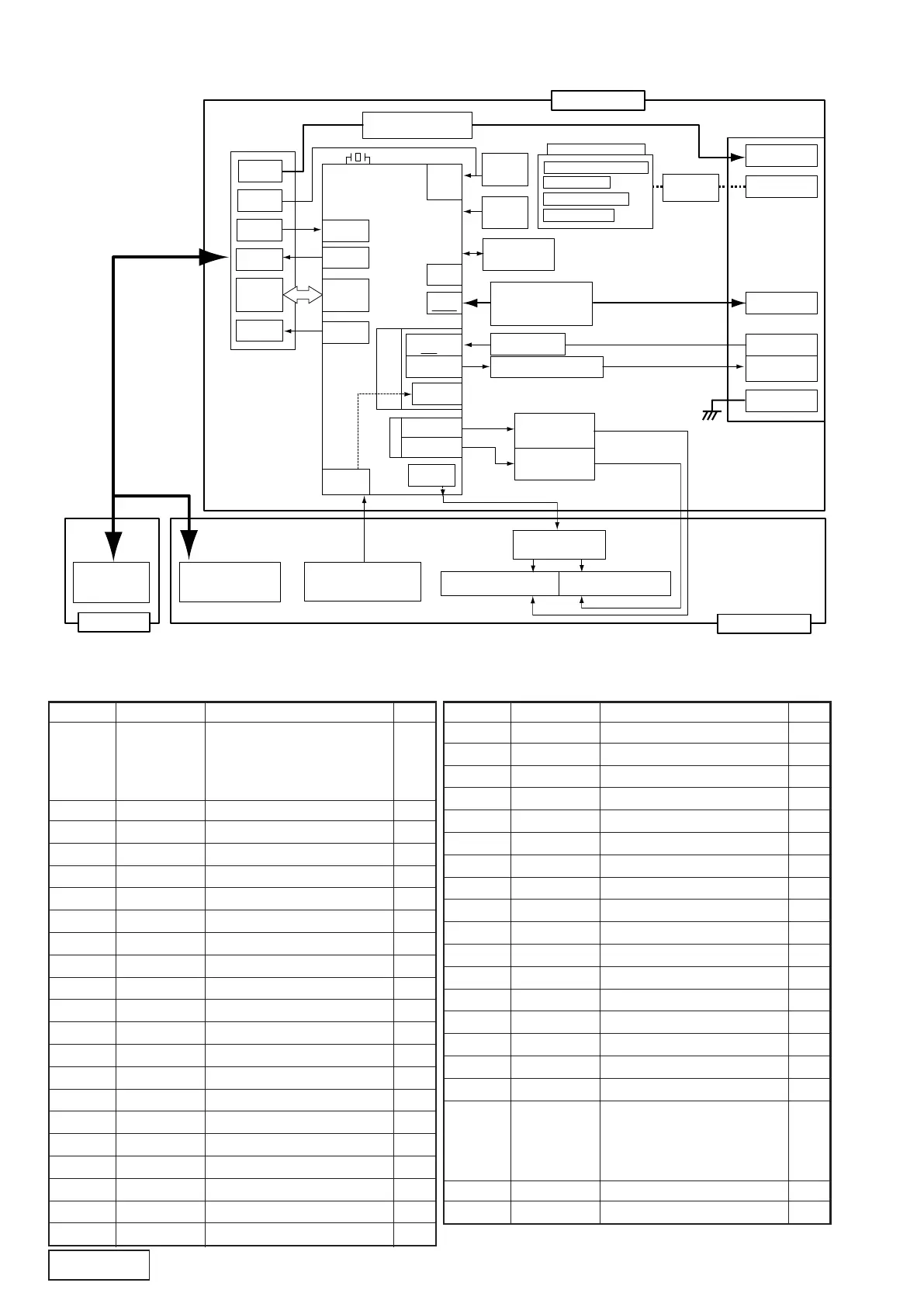

BLOCK DIAGRAM
Main section
NO. PART NO. DESCRIPTION Q'TYNO. PART NO. DESCRIPTION Q'TY
