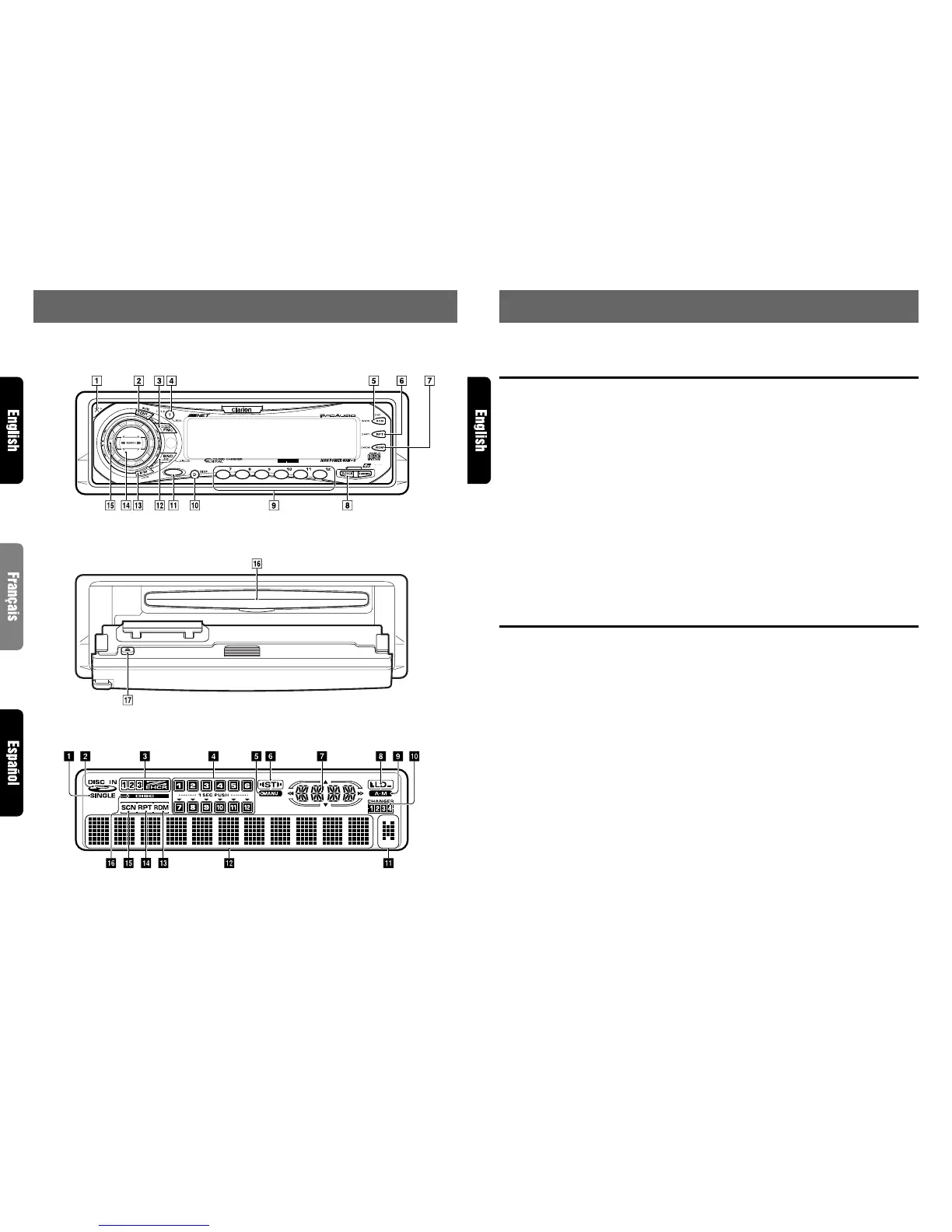

3. CONTROLS / LES COMMANDES / CONTROLES
Source unit / Appareil pilote / Unidad fuente
Note: Be sure to unfold this page and refer to the front diagrams as you read each chapter.
Remarque: Veuillez déplier cette page et vous référer aux schémas quand vous lisez chaque chapitre.
Nota: Cuando lea los capítulos, despliegue esta página y consulte los diagramas.
With the FLIP DOWN PANEL opened / Ouverture du PANNEAU RABATTABLE /
Apertura del PANEL ABATIBLE
Display / Afficheur / Visualizador
ISR
OPEN
123456
DRX7575z
4. NOMENCLATURE
Note:
• Be sure to read this chapter referring to the front diagrams of chapter “3. CONTROLS” on page 5 (unfold).
Names of Buttons
1 OPEN button
2 ENT (enter) button
Play/pause button
3 POWER button
FNC (function) button
4 TITLE button
ADJ (adjust) button
5 PS/AS (preset scan/auto store) button
SCN (scan) button
6 RPT (repeat) button
7 RDM (random) button
8 Z-EHCR (z-enhancer) button
9 Preset buttons (1 to 6)
Direct buttons (1 to 6) (7 to 12)
! DISP (display) button
" ISR (instant station recall) button
# BND (band) button
TOP button
$ A-M (audio mode) button
LOUD (loudness) button
% SEARCH button
& Rotary knob
( CD insertion slot
) Eject button
Display Items
1 Single disc indication
2 Disc in indication
3 Z-EHCR (z-enhancer) indication
4 Preset channel indication (1 to 6)
Disc number indication (1 to 12)
∗ The disc numbers corresponding to the discs
in the CD or MD changer light.
5 MANU (manual) indication
6 ST (stereo) indication
7 Function mode indication
∗ The names of modes being selected, etc. are
displayed.
8 LD (loudness) indication
9 A-M (audio mode) indication
! CD/MD changer mode indication
" Long title indication
∗ When the texts for CD or MD are more than
11 characters, this indication lights.
# Operation status indication
∗ The frequency, play time, clock, etc. are dis-
played.
$ RDM (random) indication
% RPT (repeat) indication
& SCN (scan) indication
( DISC indication

Clarion PROAUDIO DRX7575Z Specifications

FM Tuner

frequency range	87.9 MHz to 107.9 MHz
usable sensitivity	11 dBf
50dB quieting sensitivity	17 dBf
alternate channel selectivity	75 dB
stereo separation (1 kHz)	35 dB
frequency response (±3 dB)	30 Hz to 15 kHz

AM Tuner

frequency range	530 kHz to 1710 kHz
usable sensitivity	25 µV

CD Player

frequency response (±1 dB)	5 Hz to 20 kHz
signal to noise ratio (1 kHz)	100 dB
dynamic range (1 kHz)	95 dB
harmonic distortion	0.01%

Audio

maximum power output	160 W (40 W × 4 ch)
continuous average power output	14 W × 4, into 4 Ω, 20 Hz to 20 kHz, 1%THD
bass control action (30 Hz)	±15 dB
treble control action (10 kHz)	±10 dB
line output level (CD 1 kHz)	4 V

General

power supply voltage	14.4 V DC (10.8 to 15.6 V allowable)
current consumption	Less than 15 A
speaker impedance	4 Ω (4 Ω to 8 Ω allowable)
weight / source unit	3.75 lb. (1.7 kg)
weight / remote control unit	1 oz. (30 g) (including battery)
dimensions / source unit	7" (Width) × 2" (Height) × 6-1/8" (Depth)
dimensions / remote control unit	1-3/4" (Width) × 4-5/16" (Height) × 1-1/8" (Depth)
