8 DRX7575z
Inserting the Batteries
1. Turn the remote control unit over, then slide
the rear cover in the direction of the arrow.
2. Insert the AA (UM-3/1.5V) batteries that came
with the remote control unit facing in the di-
rections shown in the figure, then close the
rear cover.
Notes:
Using batteries improperly can cause them to ex-
plode. Take note of the following points:
When replacing batteries, replace both batteries
with new ones.
Do not short-circuit, disassemble or heat batteries.
Do not dispose of batteries into fire or water.
Dispose of spent batteries properly.

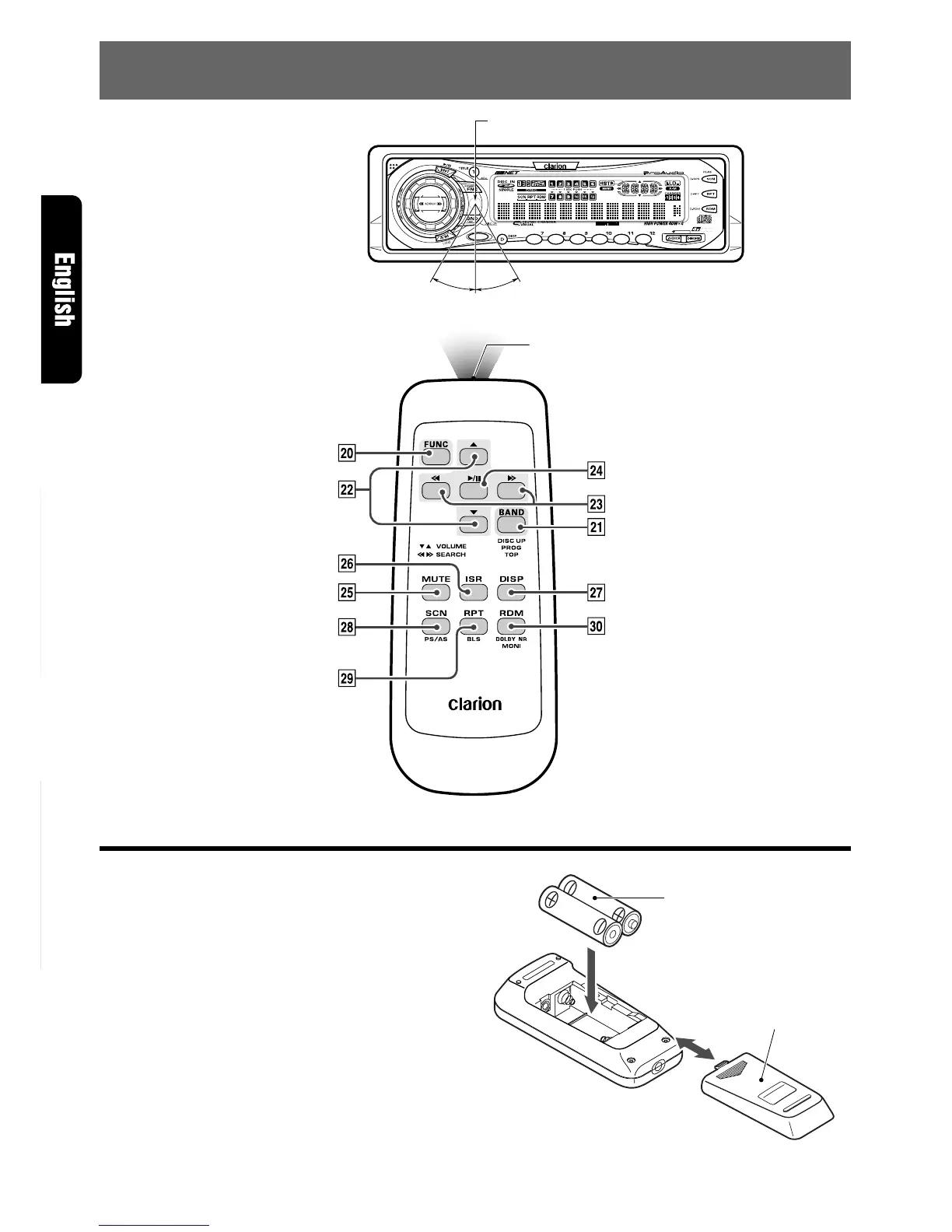

6. REMOTE CONTROL
Remote control unit
Rear side
AA (UM-3/1.5V)
Batteries
Rear cover
ISR
OPEN
123456
DRX7575z
Receiver for remote control unit
Signal transmitter
Operating range: 30° in all directions
