Clarion PROAUDIO DRX7575Z User Manual

DRX7575z 7
5. DCP
The control panel can be detached to prevent theft. When detaching the control panel, store it in the
DCP (DETACHABLE CONTROL PANEL) case to prevent scratches.
We recommend taking the DCP with you when leaving the car.

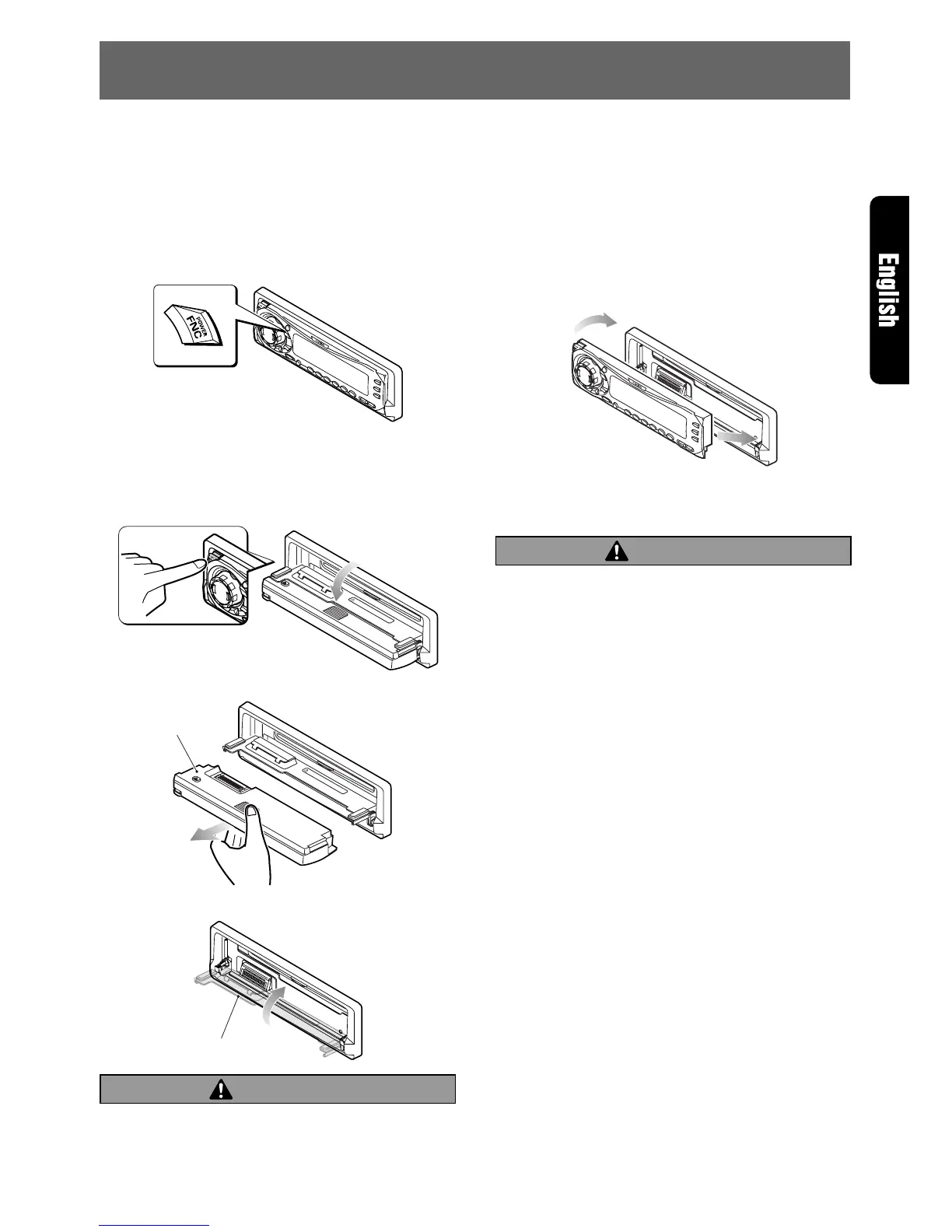

Attaching the DCP
1. Insert the right side of the DCP into the source
unit.
2. Insert the left side of the DCP into the source
unit.
2.
1.
CAUTION
• The DCP can easily be damaged by shocks.
After removing it, be careful not to drop it
or subject it to strong shocks.
• If the FLIP DOWN PANEL is kept open, the
DCP may drop due to vibration of the car.
This results in damage to the DCP. So close
the FLIP DOWN PANEL or remove the DCP
to store into the case.
• The connector connecting the source unit
and the DCP is an extremely important part.
Be careful not to damage it by pressing on
it with fingernails, screwdrivers, etc.
Note:
• If the DCP is dirty, wipe off the dirt with a soft, dry
cloth only.
Removing the DCP
1. Hold down POWER button 3 for 1 second or
longer to turn off the power.
2. Deeply push in OPEN button 1 to unlock the
FLIP DOWN PANEL.
∗ If the FLIP DOWN PANEL does not open fully,
gently open it with your hand.
3. Pull the DCP toward you and remove it.
DCP
4. Close the HOLD FLAP.
HOLD FLAP
CAUTION
Be sure to close the HOLD FLAP for safety
when removing the DCP.

Clarion PROAUDIO DRX7575Z Specifications

FM Tuner

frequency range	87.9 MHz to 107.9 MHz
usable sensitivity	11 dBf
50dB quieting sensitivity	17 dBf
alternate channel selectivity	75 dB
stereo separation (1 kHz)	35 dB
frequency response (±3 dB)	30 Hz to 15 kHz

AM Tuner

frequency range	530 kHz to 1710 kHz
usable sensitivity	25 µV

CD Player

frequency response (±1 dB)	5 Hz to 20 kHz
signal to noise ratio (1 kHz)	100 dB
dynamic range (1 kHz)	95 dB
harmonic distortion	0.01%

Audio

maximum power output	160 W (40 W × 4 ch)
continuous average power output	14 W × 4, into 4 Ω, 20 Hz to 20 kHz, 1%THD
bass control action (30 Hz)	±15 dB
treble control action (10 kHz)	±10 dB
line output level (CD 1 kHz)	4 V

General

power supply voltage	14.4 V DC (10.8 to 15.6 V allowable)
current consumption	Less than 15 A
speaker impedance	4 Ω (4 Ω to 8 Ω allowable)
weight / source unit	3.75 lb. (1.7 kg)
weight / remote control unit	1 oz. (30 g) (including battery)
dimensions / source unit	7" (Width) × 2" (Height) × 6-1/8" (Depth)
dimensions / remote control unit	1-3/4" (Width) × 4-5/16" (Height) × 1-1/8" (Depth)
