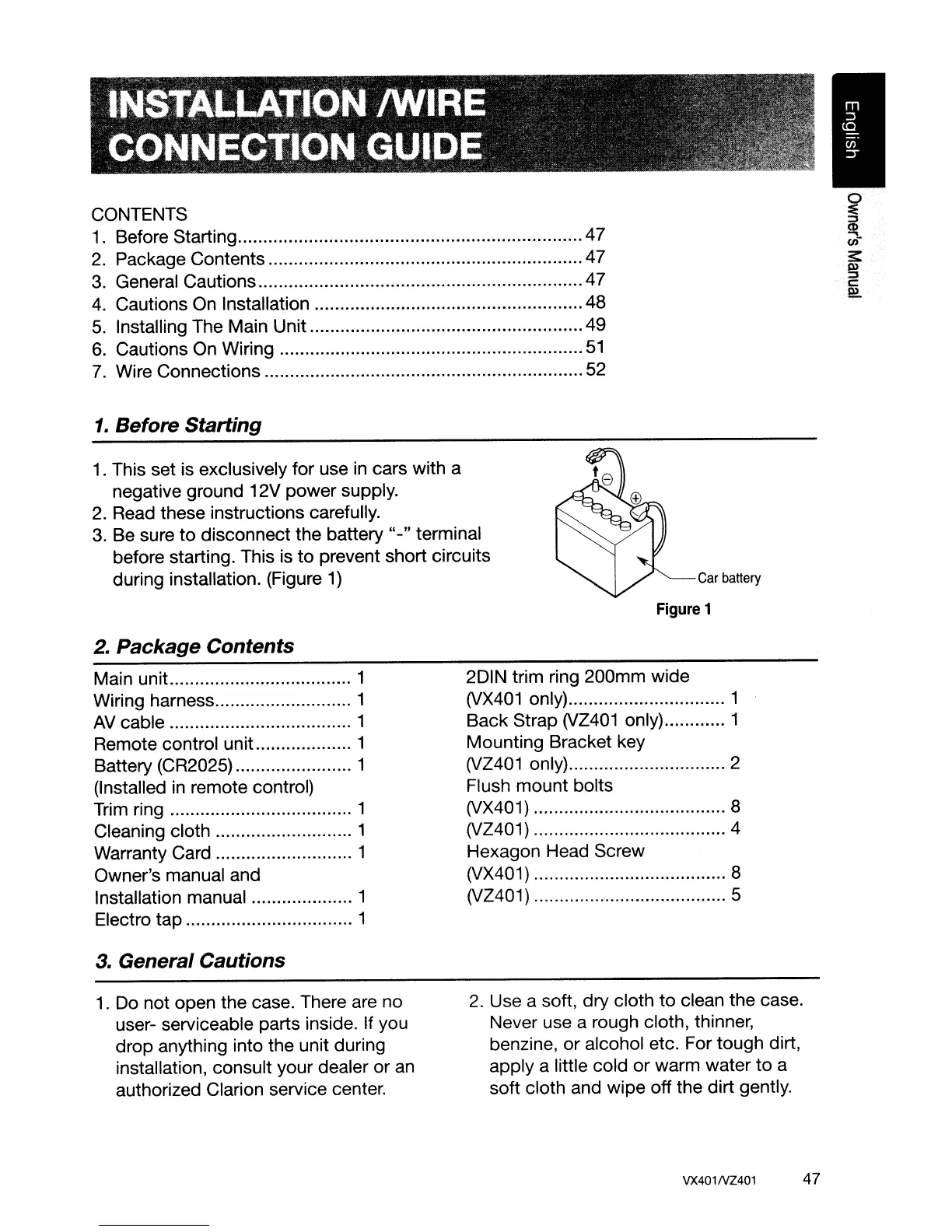

CONTENTS
1.
Before Starting 47
2.
Package Contents 47
3.
General Cautions 47
4.
Cautions
On
Installation 48
5.
Installing The Main Unit 49
6.
Cautions
On
Wiring
51
7.
Wire Connections 52
1.
Before Starting
1.
This set is exclusively for use
in
cars with a
negative ground 12V power supply.
2.
Read these instructions carefully.
3.
Be sure
to
disconnect the battery
"-"
terminal
before starting. This is
to
prevent short circuits
during installation. (Figure
1)
2. Package Contents
Car
battery
Figure
1
Main unit 1
Wiring harness 1
AV
cable 1
Remote control unit.. 1
Battery (CR2025) 1
(Installed
in
remote control)
Trim
ring 1
Cleaning cloth 1
Warranty Card 1
Owner's manual and
Installation manual 1
Electro tap 1
3.
General Cautions
1.
Do not open the case. There are no
user- serviceable parts inside. If you
drop anything into the unit during
installation, consult your dealer or
an
authorized Clarion service center.
2DIN trim ring 200mm wide
(VX401
only) 1
Back Strap
(VZ401
only) 1
Mounting Bracket key
(VZ401
only) 2
Flush mount bolts
(VX401) 8
(VZ401) 4
Hexagon Head Screw
(VX401) 8
(VZ401) 5
2.
Use a soft, dry cloth to clean the case.
Never use a rough cloth, thinner,
benzine, or alcohol etc. For tough dirt,
apply a little cold or warm water
to
a
soft cloth and wipe off the dirt gently.
VX401NZ401 47
