Max. 8 mm (M5 screw)
4.
If you have to
do
any work on the car
body, such as drilling holes, consult
your car dealer beforehand.
5.
Use the enclosed screws for
installation. Using other screws can
cause damage. (Figure
4)
Chassis
a.7'"'7.'1o.,
Damage
Chassis
4.

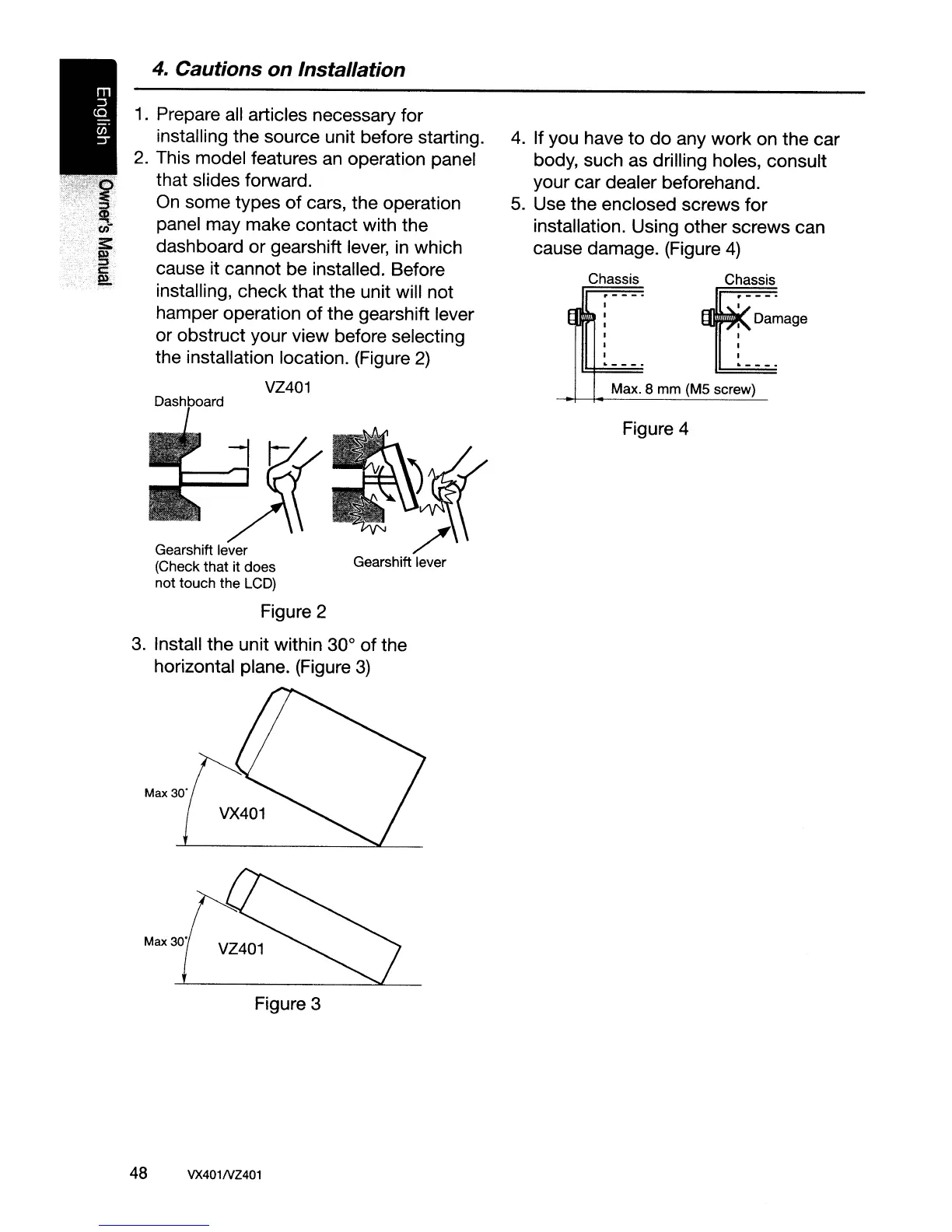

Cautions on Installation
Dashboard
1.
Prepare all articles necessary for
installing the source unit before starting.
2.
This model features
an
operation panel
that slides forward.
On
some types
of
cars, the operation
panel may make contact with the
dashboard or gearshift lever, in which
cause it cannot be installed. Before
installing, check that the unit will not
hamper operation
of
the gearshift lever
or obstruct your view before selecting
the installation location. (Figure
2)
VZ401
Gearshift lever
(Check that it does
not touch the
LCD)
Figure 2
3.
Install the unit within 30°
of
the
horizontal plane. (Figure
3)
Figure 4
Figure 3
48 VX401NZ401
