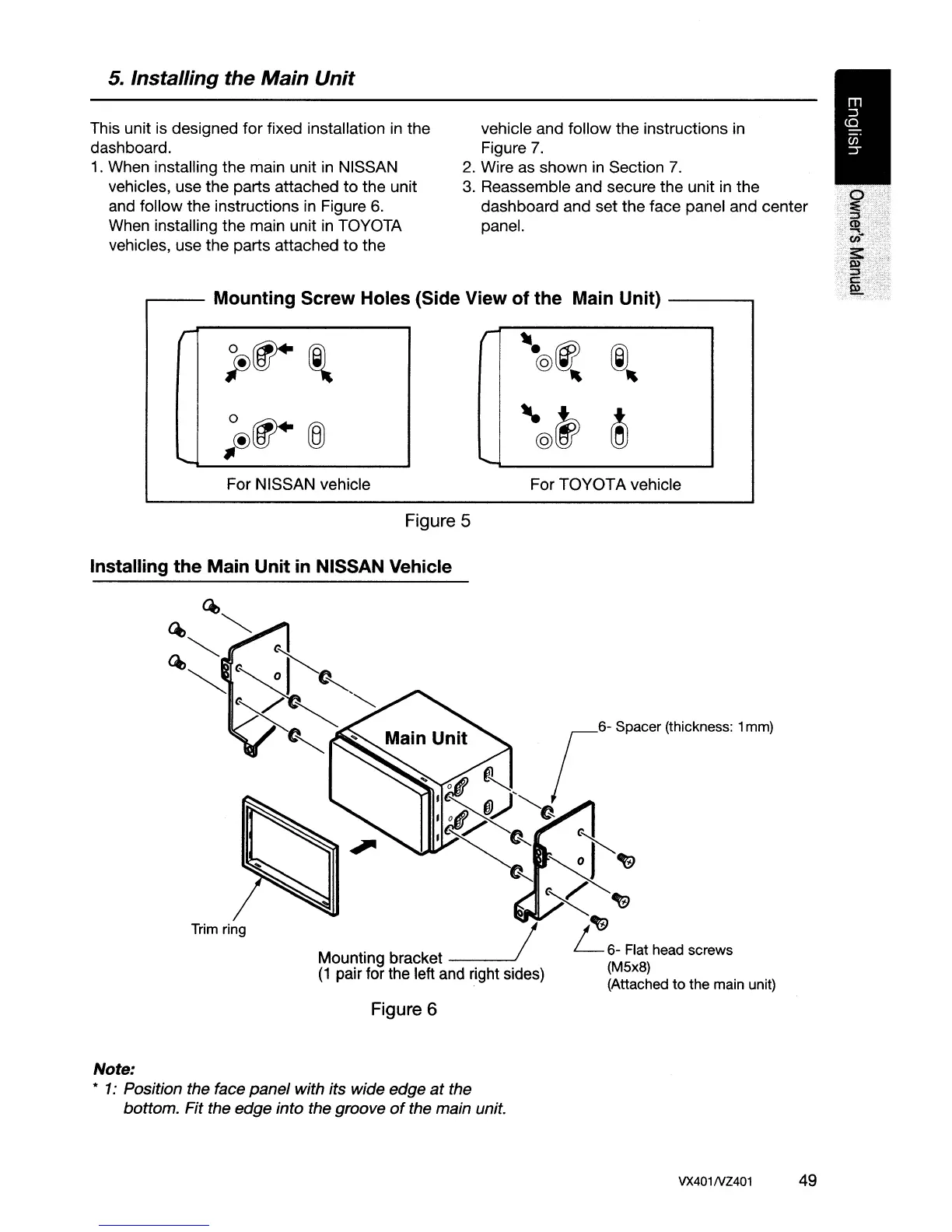

Mounting Screw Holes (Side View of the Main Unit)
----,
5.
Installing the Main Unit
This unit is designed for fixed installation
in
the
dashboard.
1.
When installing the main unit
in
NISSAN
vehicles, use the parts attached
to
the unit
and follow the instructions
in
Figure
6.
When installing the main unit
in
TOYOTA
vehicles, use the parts attached
to
the
vehicle and follow the instructions
in
Figure
7.
2.
Wire as shown
in
Section
7.
3.
Reassemble and secure the unit
in
the
dashboard and set the face panel and center
panel.
r
~r~
r
~@~
~
" "
~r®
~~
~
~
.......
For NISSAN vehicle For TOYOTA vehicle
Figure 5
Installing the Main Unit
in
NISSAN Vehicle
Trim ring
Figure 6
Note:
•
1:
Position the face panel with its wide edge
at
the
bottom. Fit the edge into the groove
of
the main unit.
VX401NZ401 49
