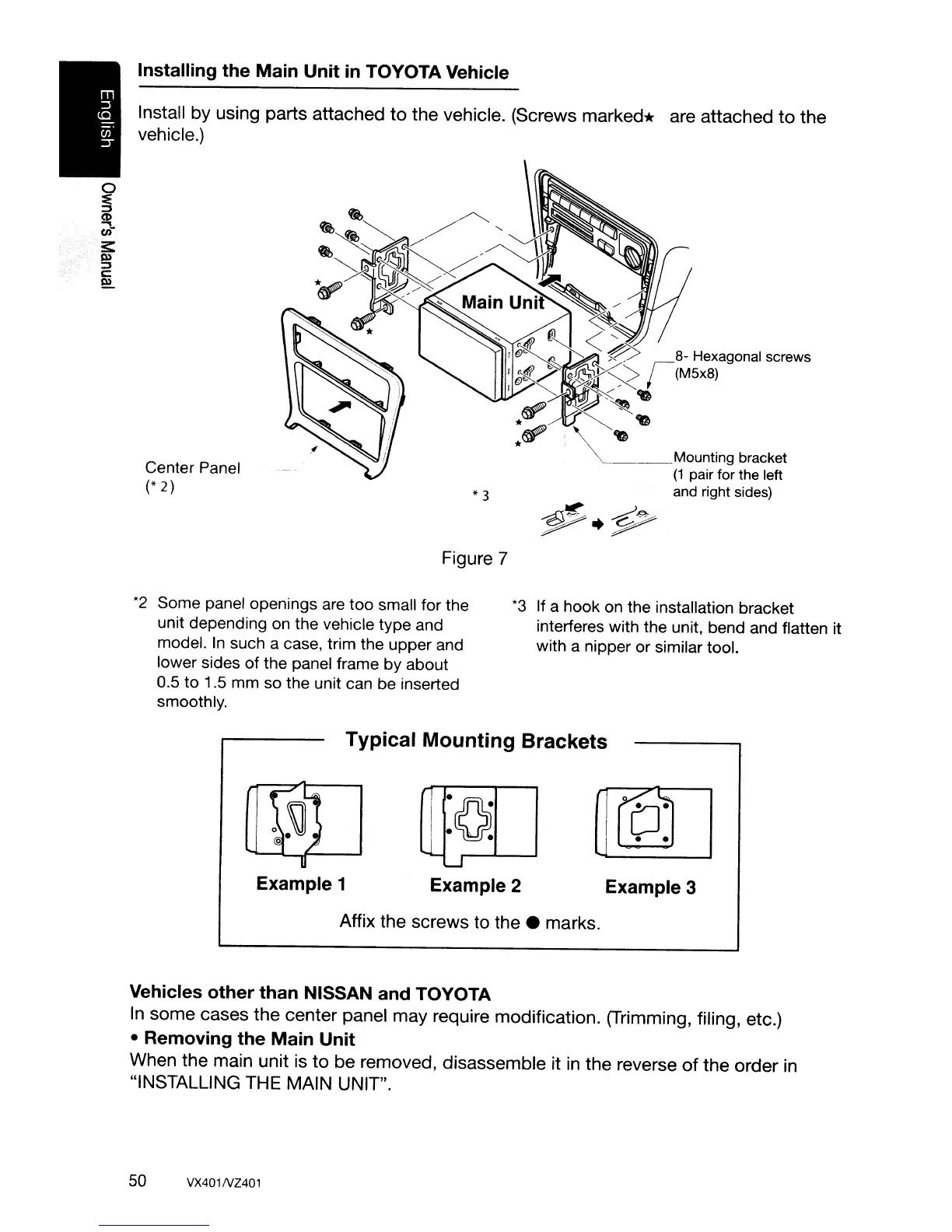

Installing the Main Unit
in
TOYOTA Vehicle
___
Mounting bracket
(1
pair for the left
and right sides)
*3
Center Panel
(*
2)
Install by using parts attached
to
the vehicle. (Screws
marked*
are attached
to
the
vehicle.)
Figure 7
*2
Some panel openings are
too
small for the
unit depending on the vehicle
type
and
model.
In
such a case, trim the
upper
and
lower sides
of
the
panel frame
by
about
0.5
to
1.5
mm
so
the unit can be inserted
smoothly.
*3 If a
hook
on the installation bracket
interferes with the unit, bend and flatten
it
with a nipper
or
similar tool.
Typical Mounting Brackets
Example 1
....
u
Example 2 Example 3
Affix the screws to
the.
marks.
Vehicles other than NISSAN and TOYOTA
In
some cases the center panel may require modification. (Trimming, filing, etc.)
• Removing the Main Unit
When the main unit is
to
be removed, disassemble it
in
the reverse
of
the order
in
"INSTALLING THE MAIN UNIT".
50 VX401NZ401
