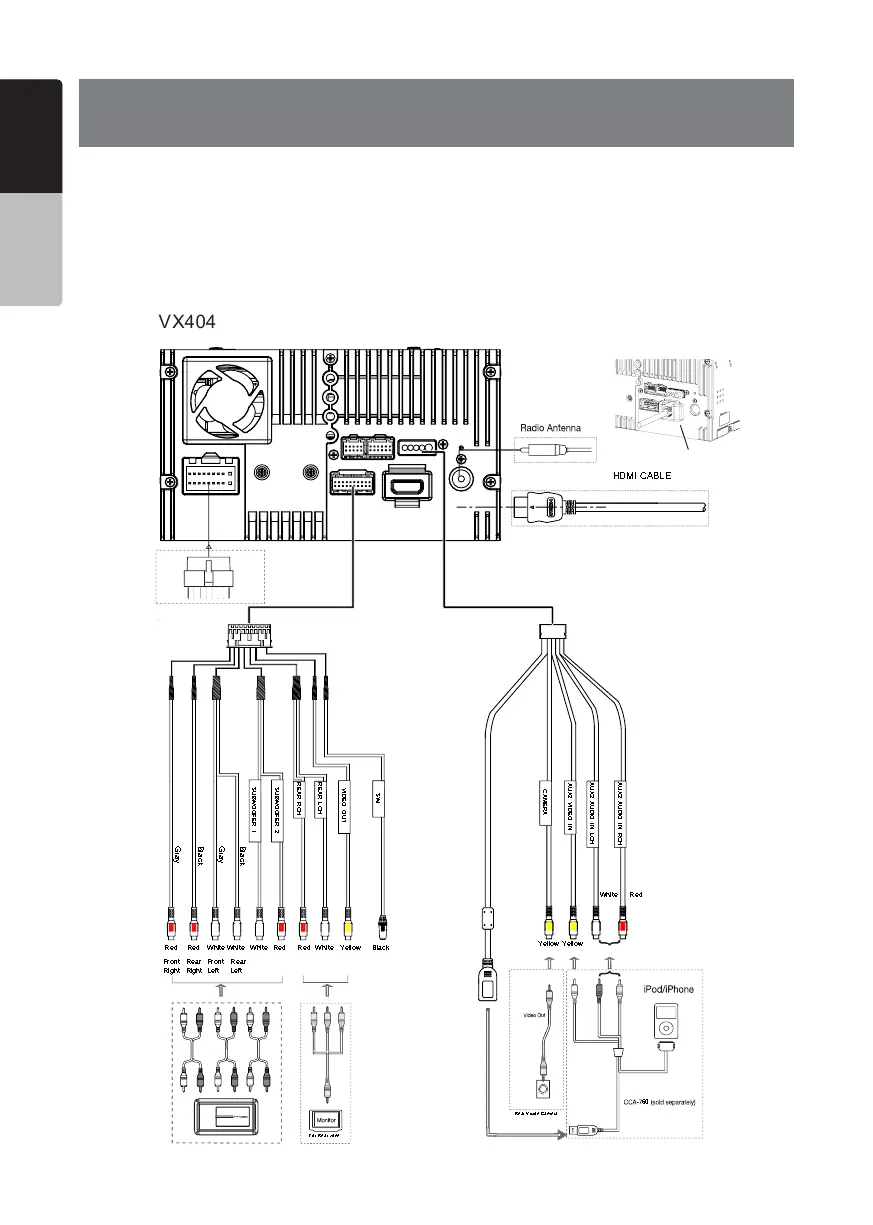

24. WIRE CONNECTION GUIDE
Note:
• Before installing, be sure to disconnect the negative cable of the car battery.
• In the optional devices, the RCA cables and the Connector cables are separately-sold
items.
• When connect the HDMI cable, be sure to x with the HDMI cable holder.
VX404
For Rear zone
Rear Vision Camera
HDMI CABLE
Black
Red
RedRed Red
White
WhiteWhite White Red White
Yellow Yellow
Yellow
SUBWOOFER 2
REAR RCH
REAR LCH
VIDEO OUT
SWI
CAMERA
AUX2 VIDEO IN
AUX2 AUDIO IN LCH AUX2 AUDIO IN RCH
SUBWOOFER 1
50
Front
Right
Rear
Right
Front
Left
Rear
Left
Gray Black Gray Black
Refer to
page 55
HDMI cable holder
