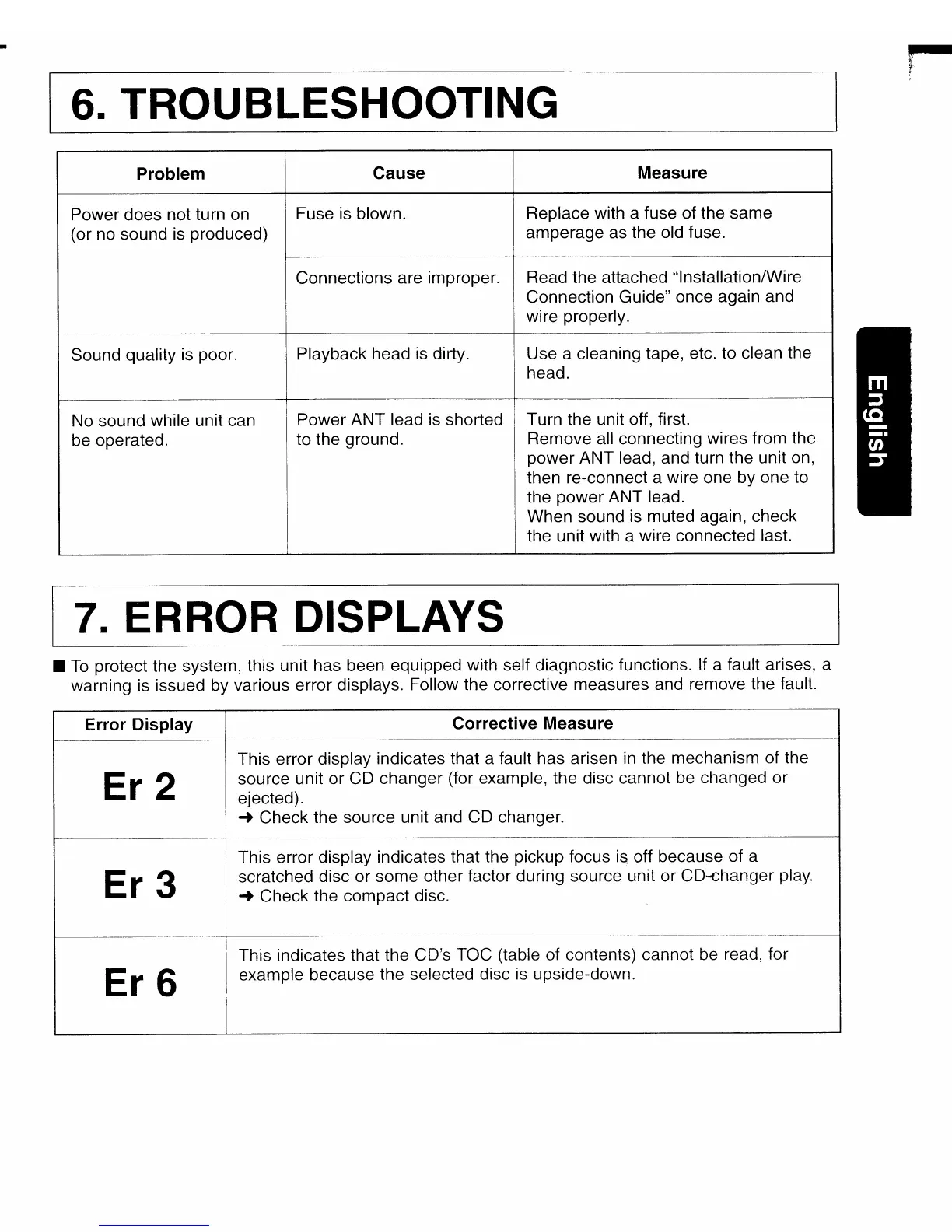

6. TROUBLESHOOTING
Problem
Cause Measure
Power does not tu rn on
Fuse is blown.
Replace with a fuse of the same
(or no sound is produced)
amperage as the old fuse.
Connections are improper. Read the attached "Installation/Wire
Connection Guide" once again and
wire properly.
Sound quality is poor.
Playback head is dirty. Use a cleaning tape, etc. to clean the
head.
No sound while unit can
Power ANT lead
is shorted Turn the unit off, first.
be operated.
to the ground. Remove all connecting wires from the
power ANT lead, and turn the unit on,
then re-connect a wire one by one to
the power ANT lead.
When sound is muted again, check
the unit with a wire connected last.
7. ERROR DISPLAYS
• To protect the system, this unit has been equipped with self diagnostic functions. If a fault arises, a
warning
is issued by various error displays. Follow the corrective measures and remove the fault.
Error Display
Corrective Measure
This error display indicates that a fault has arisen in the mechanism of the
Er
2
source unit or CD changer (for example, the disc cannot be changed or
ejected).
~ Check the source unit and CD changer.
This error display indicates that the pickup focus
is, off because of a
Er
3
scratched disc or some other factor during source unit or CD-changer play.
~ Check the compact disc.
1-------------
-_ .... __ . __ ._. -
-
--,._--~-~---,- -~-------
---------- ---------
I
This indicates that the CD's TOC (table of contents) cannot be read, for
Er
6
example because the selected disc is upside-down.
I
I
XA311
11
