Clarion XN3210 User Manual

XN3210/XN3410 13
English
Owner’s Manual
CH3 Speaker
C
C
CH1
Speaker
Subwoofer
CH2
Speaker
CH4 Speaker
4 Ω BRIDGED
FUSE
+ CH1 –
GND REM +12V
30A 30A
+ CH2 –
4 Ω BRIDGED
+ CH3 – + CH4 –
L

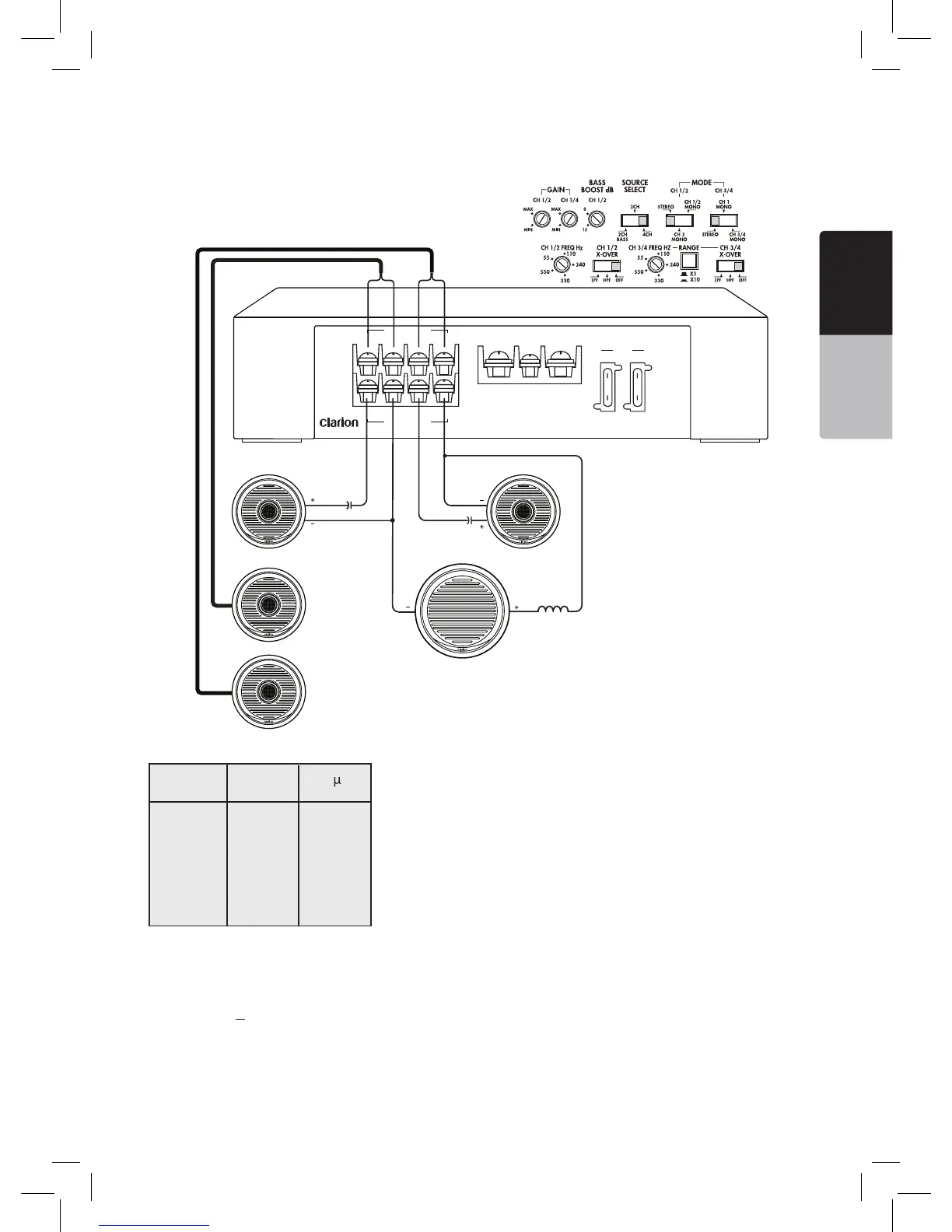

Fig. 8
Mixed Mode System On CH3/CH4, Full Range Speakers On CH1/CH2
The amplifier can be configured for a mixed-mode operation on either
channels 1/2 or 3/4 amplifier sections. The table provides component
values to create a 6dB per octave crossover at specified frequencies. Use components
that have a + 5% tolerance and capacitors rated at 100V.
NOTE: Choose the same frequency for both LP and HP crossovers. Do not overlap
frequencies, as this may damage the amplifier.
NOTE: Chart values based on 4 Ohm speakers.
FREQ (Hz)
80
100
125
150
200
L (mH)
8.0
6.4
5.1
4.2
3.2
C ( F)
497
398
318
265
199
XN3210_3410 manual_060410 R2.ind13 13 9/3/2010 8:49:28 AM
