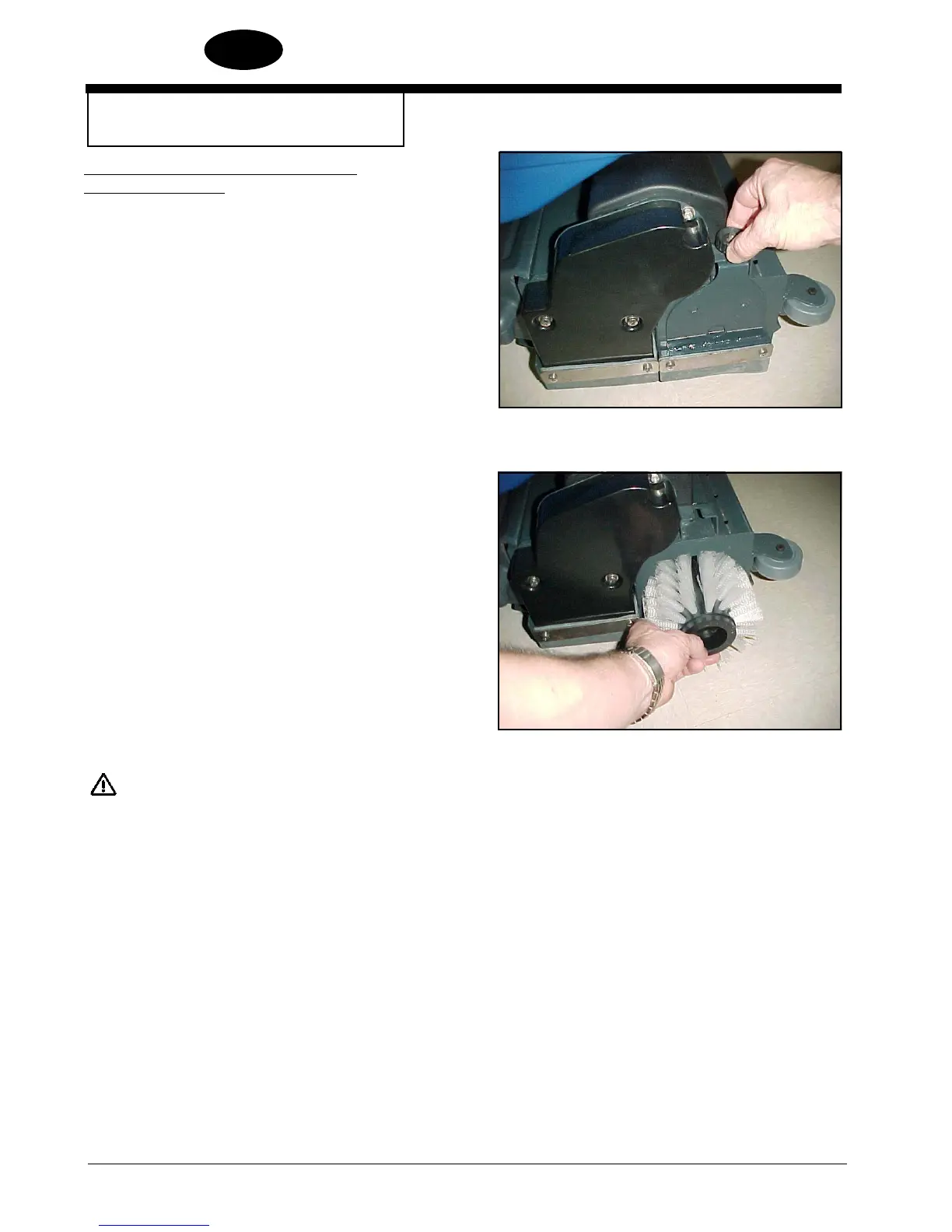

Figure 14
Figure 15
HOW TO PREPARE THE MACHINE
FOR OPERATION
How To Change Or Reverse Bristle Direction
On Cylindrical Machine
To install or reverse bristle direction on the machine, follow this pro-
cedure:
1. Turn the key switch “ON”.
2. Put the brush head assembly in the “UP” position.
3. Turn the key switch “OFF”.
4. Go to the front of the machine and loosen thumb screw on
brush door. See fi gure 14.
5. Lower door approximately 1/2 inch and remove brush door.
6. Remove brush. See fi gure 15.
7. Inspect brush condition. If damaged or worn, replace it. Oth-
erwise, turn brush end for end periodically to reverse bristle
direction for better life.
8. Slide brush onto driver or opposite side and rotate slowly until
drive lugs are lined up with brush slots. Push brush all the
way in.
9. Install brush door assembly into brush.
10. Raise door and tighten thumb screw.
11 Repeat for the other brush.
DANGER: Operating a machine that is not com-
pletely or fully assembled could result in
injury or property damage. Do not oper-
ate this machine unless it is completely
assembled. Inspect the machine care-
fully before operation.
