-6- FORM NO. 70403B Clarke
®
American Sanders Operator's Manual (EN) - OBS-18/18DC HDTR

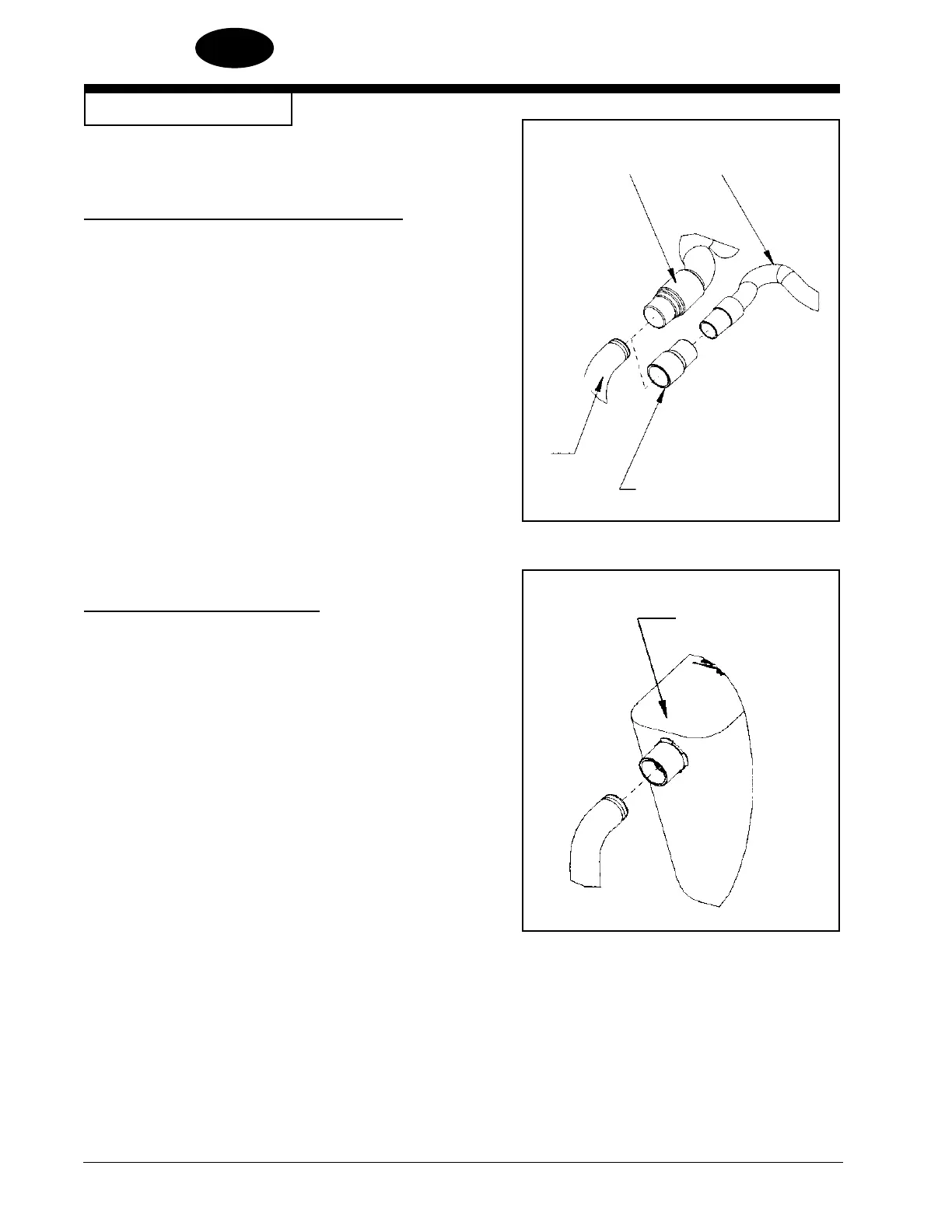

Figure 4
Figure 5
Install the dust bag by
pressing the end onto the
exhaust tube until the ring
locks into the groove.
A
2" Hose from
vacuum system
(not included)
1.5" Hose from
vacuum system
(not included)
D
B
C
Exhaust Tube
(30563A) 2" Tube x 1.5" hose adaptor
Machine Setup
This sanding machine is designed to be operated with a remote vacuum
dust collection system or with the included dust bag.
Preparing Remote Vacuum Dust Collection Systems
To prepare the machine for remote vacuum dust collection systems that
have a 2” hose end, follow this procedure:
1. Install 2” hose end (fi gure 4, A) directly into the exhaust tube
(fi gure 4, B).
2. The exhaust tube can be rotated for optimum convenience.
To prepare the machine for remote vacuum dust collection systems that
have a 1 ½” hose end, follow this procedure:
1. Install the 2” x 1½” hose end adaptor (Part No. 30563A) (fi gure 4,
C) over the exhaust tube (fi gure 4, B).
2. Insert 1 ½” hose end (fi gure 4, D) into the adaptor (fi gure 4, C).
NOTE: Start the remote vacuum collection system before opera-
tion.
Preparing to use the included dust bag
To prepare the machine for use with the included dust bag (Part No.
53741A), follow this procedure:
1. Install the dust bag by pressing the end onto the exhaust tube
until the ring locks into the groove (fi gure 5). This is best done
by pressing on the back of the bag opening with the palm of your
hand.
2. The exhaust tube can be rotated for optimum convenience.
3. To remove the dust bag from the exhaust tube, pry up the end
of the bag opening to partially release the internal rib from the
groove, then pull.
4. To empty the dust bag, unzip the disposal fl ap and force contents
out by inverting the bag.
NOTE: For best results, empty frequently. Follow all warnings
posted in this manual and on the dust bag.
