ALIGNING THE LOWER BLADE GUIDE
The lower blade guide needs to be re-adjusted after any blade change or
tracking adjustment.
• This task may be easier if the table is tilted for better access.

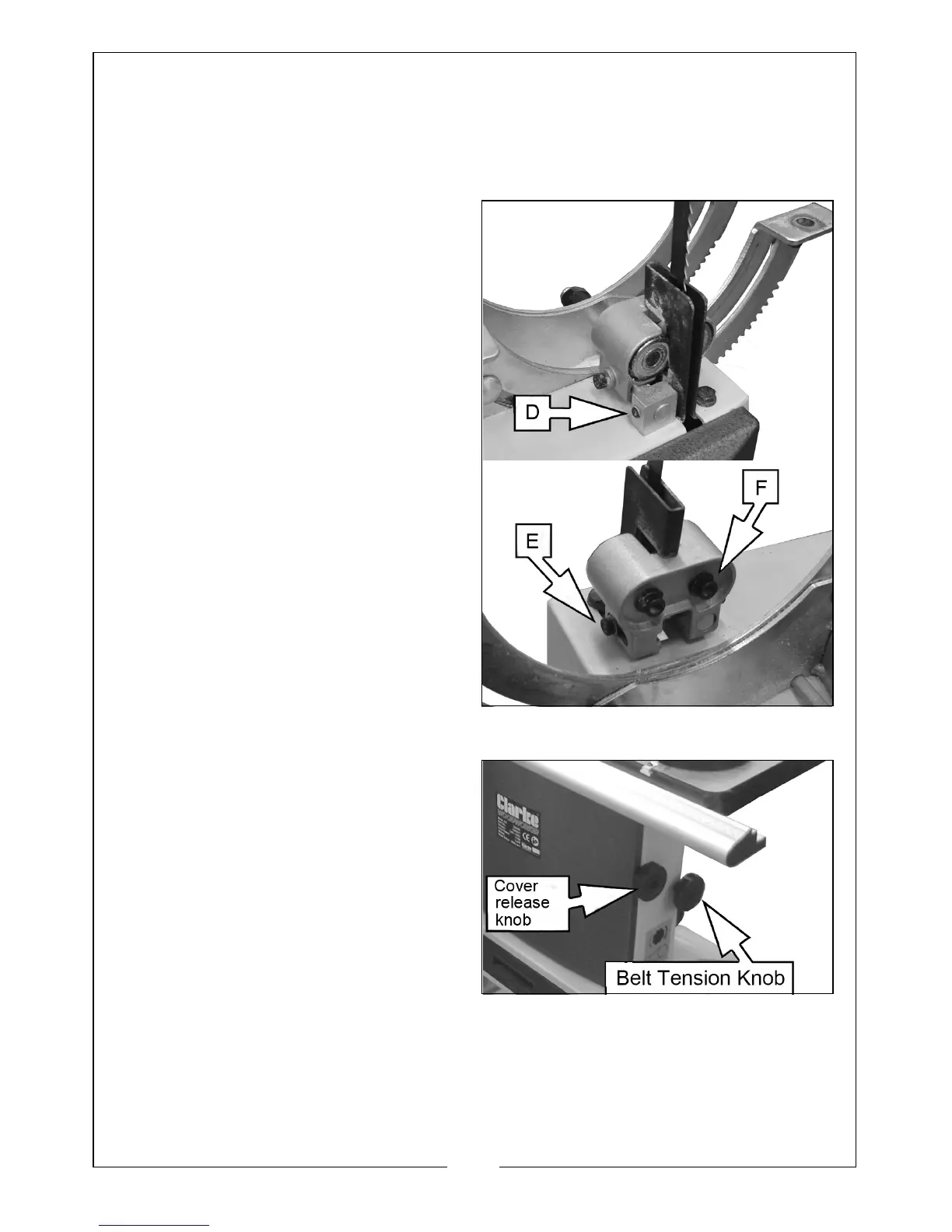

1. Loosen the screw (D), and move
the entire lower blade guide.
Adjust the guide bearing to a
position of 1 or 2 mm from the
back of the blade. Re-tighten the
set-screw.
2. Loosen the socket-head bolt (E),
and adjust the thrust bearing to a
position of 0.5 mm from the rear of
the blade. Re-tighten the bolt (E).
3. Loosen the socket head bolts (F),
and adjust the guide bearings to
a position of 0.5 mm from the sides
of the blade. Re-tighten the
socket head bolt (F).
CUTTING SPEED ADJUSTMENT
1. Open the lower cover by twisting
the cover release knob.
2. Slacken the driving belt by turning
the belt tension knob.
