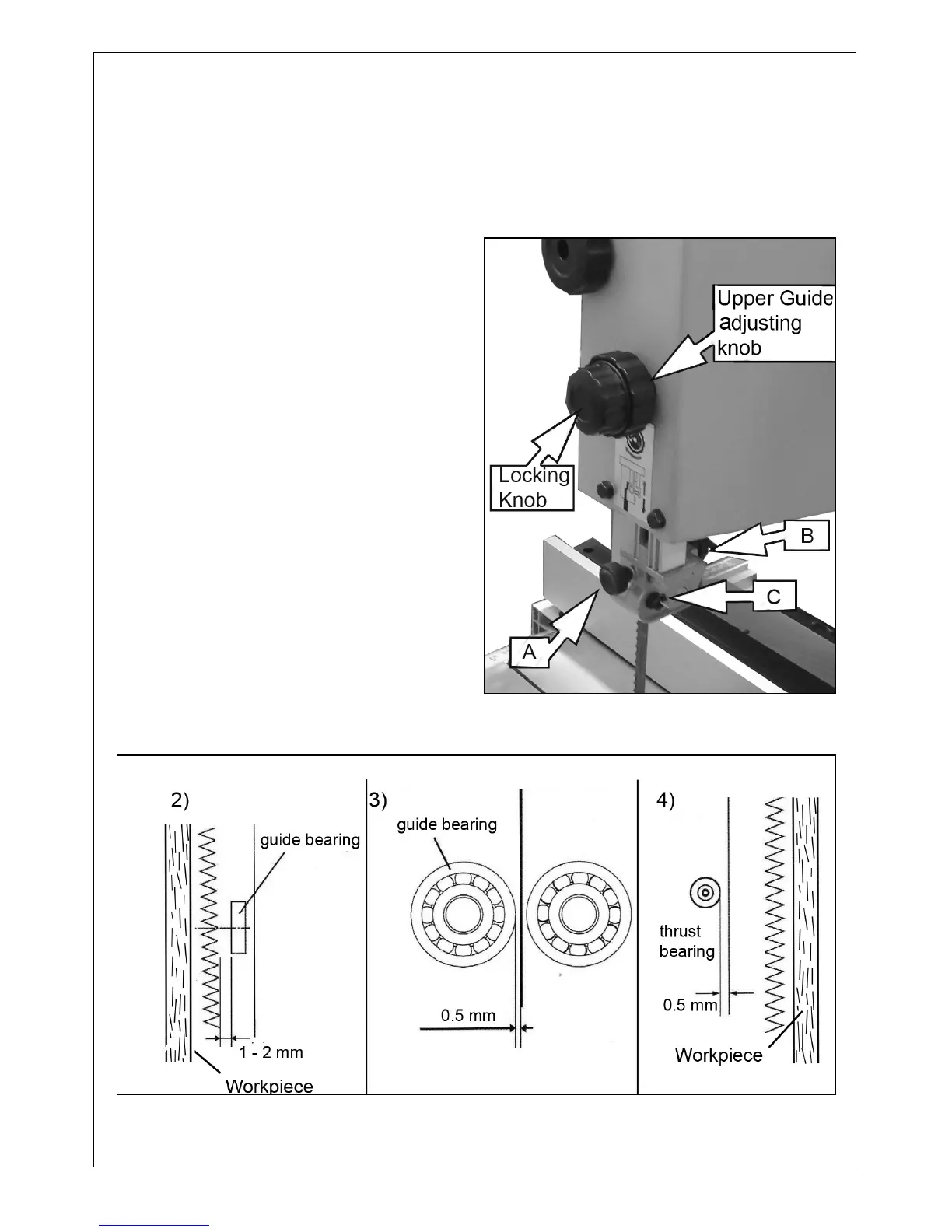

UPPER BLADE GUIDE ADJUSTMENT
GUIDE HEIGHT
The height of the blade guide needs to be adjusted prior to every cutting
operation to accommodate the height of the workpiece.
The upper blade guide should be set approx 3 mm above the workpiece.
1. Set the upper blade guide with
the adjusting knob to the desired
height by loosening the locking
knob and re-tightening after
adjustment.
GUIDE BEARING SETTING
2. Loosen the knob, (A) and adjust
the blade guide assembly so that
the guide bearing is positioned 1
or 2 mm from the back of the
blade. Re-tighten the knob (A).
3. Loosen the bolt (C) and adjust the
guide bearing to a position 0.5
mm away from the blade. Re-
tighten the bolt (C).
4. Loosen the knob, (B) and adjust
the thrust bearing to a position, 0.5
mm from the rear of the blade.
Re-tighten the knob (B).
