Clear-Com Eclipse HX-Median User Manual

User Guide| Eclipse HX-Median
Page 107
 G.722 or G.711 64 kbit/s Audio Encoding.
 Tx Clock locally generated.
 Rx Clock Line Recovered.

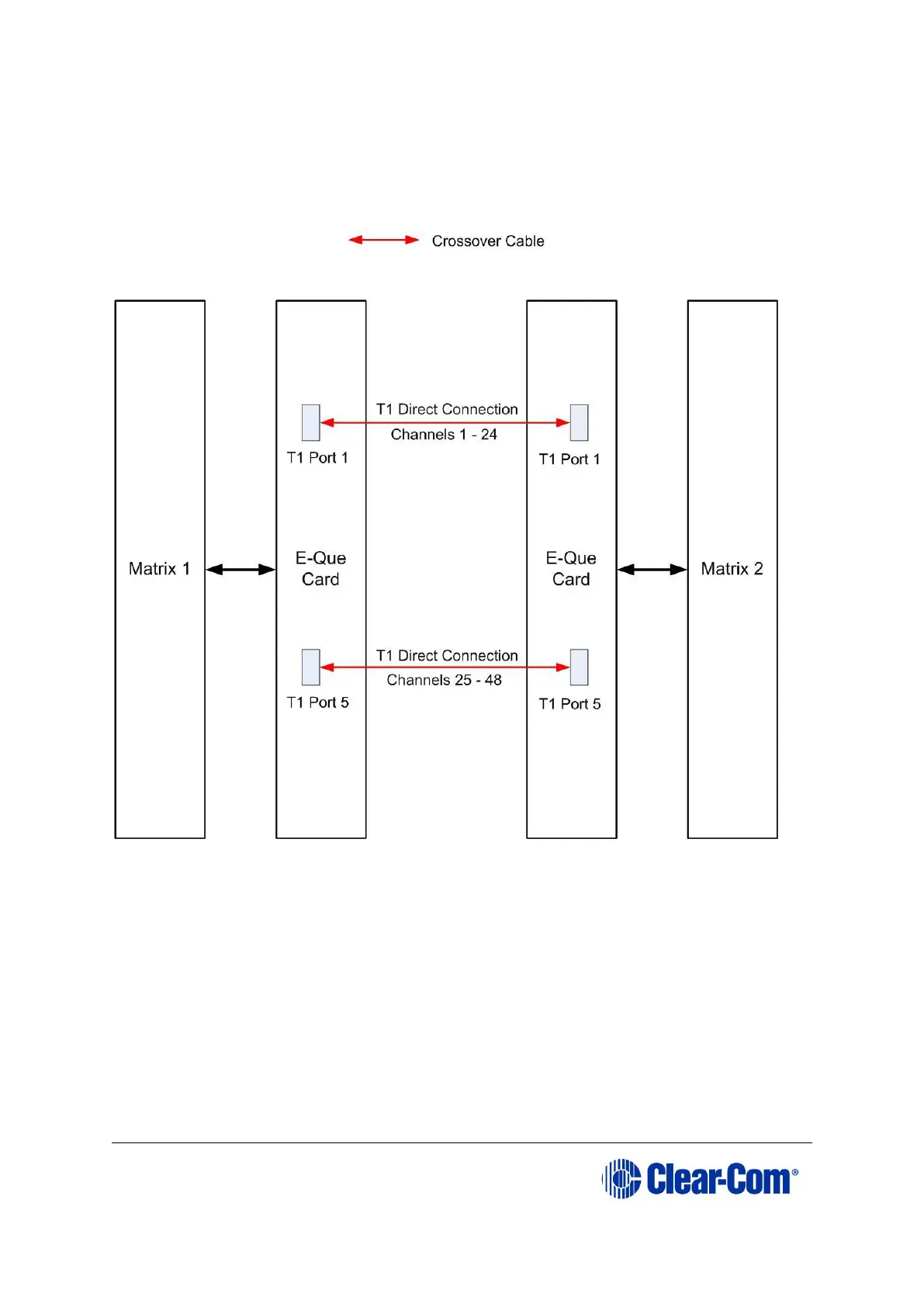

Figure 8-9: Matrix to Matrix T1 Trunking
T1 trunking between matrices can also be achieved over an E1 network as
shown in Figure 8-10: T1 Trunking using an E1 Network.
In this case T1 ports 1 and 5 of the E-QUE rear card are connected using
standard straight-through CAT5 cables rather than crossover CAT5 cables.

Clear-Com Eclipse HX-Median Specifications

General

Brand	Clear-Com
Model	Eclipse HX-Median
Category	Intercom System
Language	English
