User Guide| KB-702/KB-702GM/KB-802-GM-IM
Speaker
Program Level
Off On
A
B
Channel Select
KB-702GM
Call
Talk
Sidetone
Headset
Panel Mic
VOX
Headset
Volume
Microphone
2-Channel
Speaker Station
6
7
3
4
9
2
8
1211
10
5
1

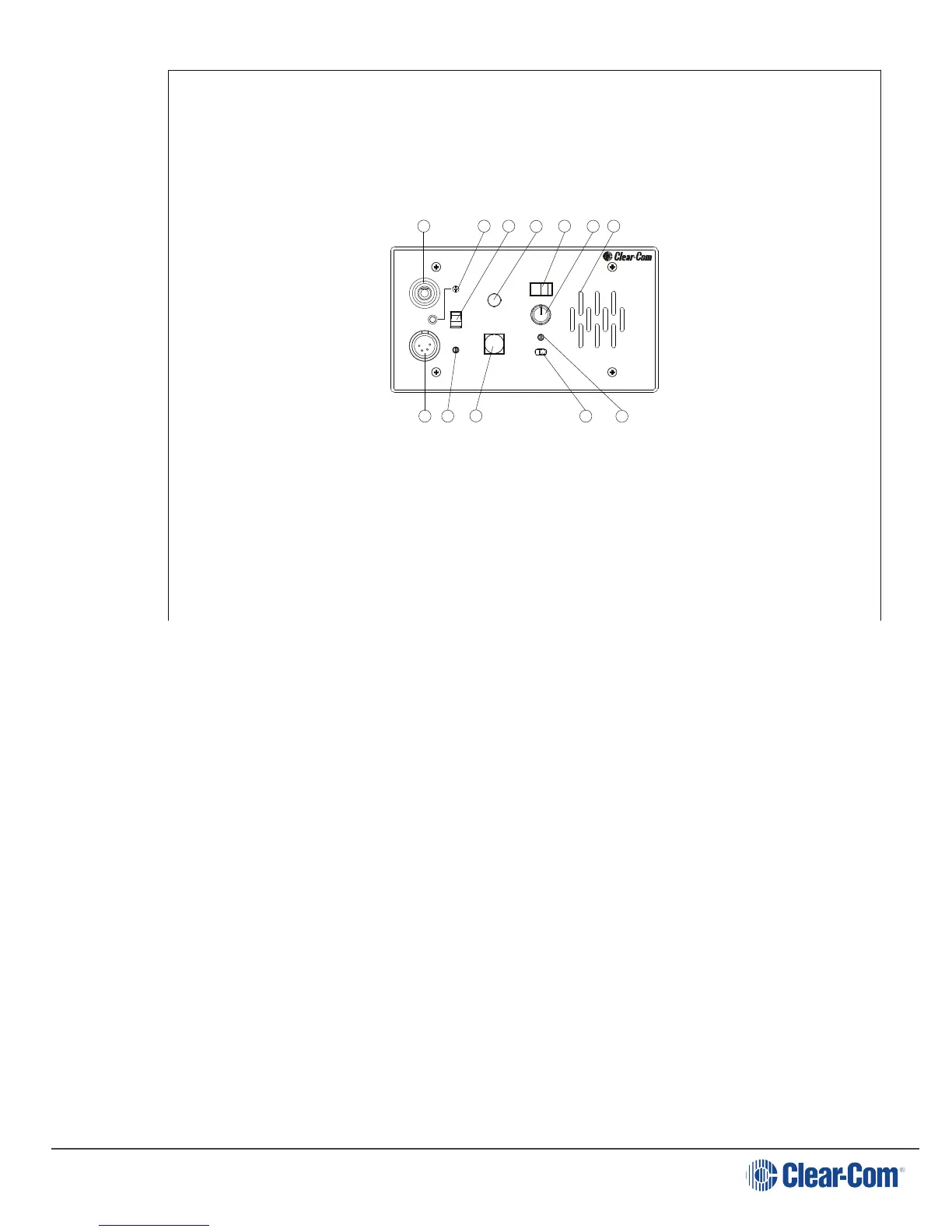

1. Talk Button and Indicator: The talk button activates the microphone feed to
the selected intercom channel. It has a dual action (momentary or latching)
depending upon how the button is pressed. If desired, the latching function can
be defeated using an internal option switch. The following describes the various
functions of this button.
l MOMENTARY: Press and hold the talk button while you are speaking. Release
it when you are finished. The button lights amber when the talk function is
active and blue when it is inactive.
l LATCHING: Press the button quickly to latch the talk function. Press the
button again to turn off the talk function.
l VOX INDICATION: On the KB-702GM/KB-802GM-IM, when the VOX feature is
enabled, the talk button illuminates amber to indicate an active talk, and the
VOX light illuminates amber to indicate that the panel microphone is in use.
This will automatically dip the speaker.
2. Call Button and Light: Pressing the call button will send a call signal on the
selected channel. All the call lights on that channel will then flash. Call signals
Page 11
