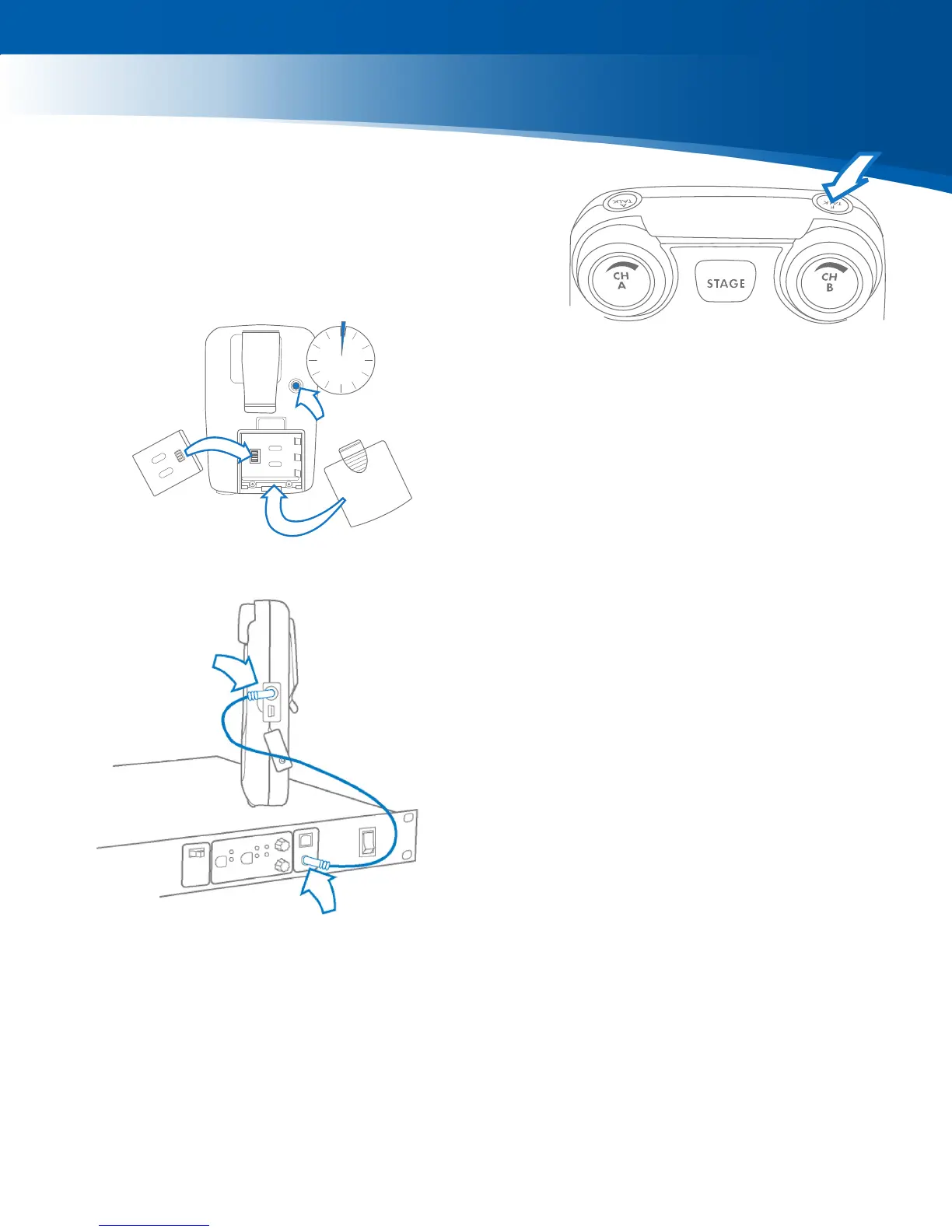

● Slide the battery door off by pressing down and back.
● Install the battery or AA batteries (x3) and replace the battery door.
● Press and hold the ON/OFF button for two seconds; the BeltStation
will vibrate as it powers up.
● Power the BeltStation OFF by pressing and holding the ON/OFF
button for four seconds.
● Plug a headset into each BeltStation.
● To set Mic Gain, Press MENU and scroll down to Set Controls.
● Scroll to Mic Gain and Press ENTER.
● Set the Mic Gain for the headset you are using; speak loudly into
the microphone and adjust the setting so that the blue TALK LED
ashes red at your loudest point and then adjust down slightly.
Press ENTER to save.
● Select the desired communication channel by pressing the A or B
channel selector.
● Adjust the headset listening volume by turning the A or B rotary
control.
● Press the TALK button to talk to others on the selected channel
(the blue ashing LED will remain lit when talk is enabled on that
channel).*
● Conrm the desired talk channel and talk status by observing the
BeltStation LCD screen.
● Select the correct intercom type on the front of the BaseStation.
» Intercom type select switch A&B controls intercom
channels A and B.
» CLEAR-COM is used for Clear-Com and Clear-Com
compatible 2-Wire systems.
» RTS is used for RTS and RTS compatible systems.
» BAL is used for Telex AudioCom & AudioCom compatible
systems.
● Connect 3-PIN XLR cables to the back of the BaseStation for the
appropriate channel.
● Press the left SEL button to select an intercom channel (A or
B); press the right SEL button twice to select 2-Wire operation.
● Use the IN and OUT rotary controls to set the IN (from 2-Wire to
BaseStation and OUT (from BaseStation to 2-Wire) levels.
● Perform Auto Null from the BaseStation.*
● Connect RJ-45 cables to the back of the BaseStation for the
appropriate channel. Note: The intercom type select switches
do not apply to 4-Wire operation.*
● Press the left SEL button twice to select an intercom channel
(A or B).
● Press the right SEL button to select 4-Wire operation.
● Use the IN and OUT rotary controls to set the IN (from 4-Wire to
BaseStation and OUT (from BaseStation to 4-Wire) levels.
*Refer to the Tempest Owner’s Manual for detailed system
information.
Power ON the BeltStation
Pair BeltStations to the BaseStations
Start Communicating
Connecting to External 2-Wire
Intercom Systems
Connecting to External 4-Wire
Intercom Systems
2 sec
POWER ON
● Conrm the BaseStation is powered ON.
● Conrm the BeltStation is powered OFF.
● Connect the 3.5mm data pairing cable from the BaseStation to the
BeltStation.
● Power ON the BeltStation while observing the BeltStation LCD
screen; the BeltStation will vibrate and “Pairing Complete” will appear
momentarily on the LCD screen if pairing was successful.
● The BeltStation will return to the operational screen and log into
the BaseStation.
● The BeltStation will appear in the rst available slot on the LCD
screen.
● Repeat for each BeltStation.
Note: BeltStations are named to their default setting name. They can
be renamed.
QuickStart Guide
7
5
