Now you can set the bearing upper part carefully onto the bearing.
To avoid damages make sure you slide the bearing upper part slowly and carefully on the polished
ceramic shaft.

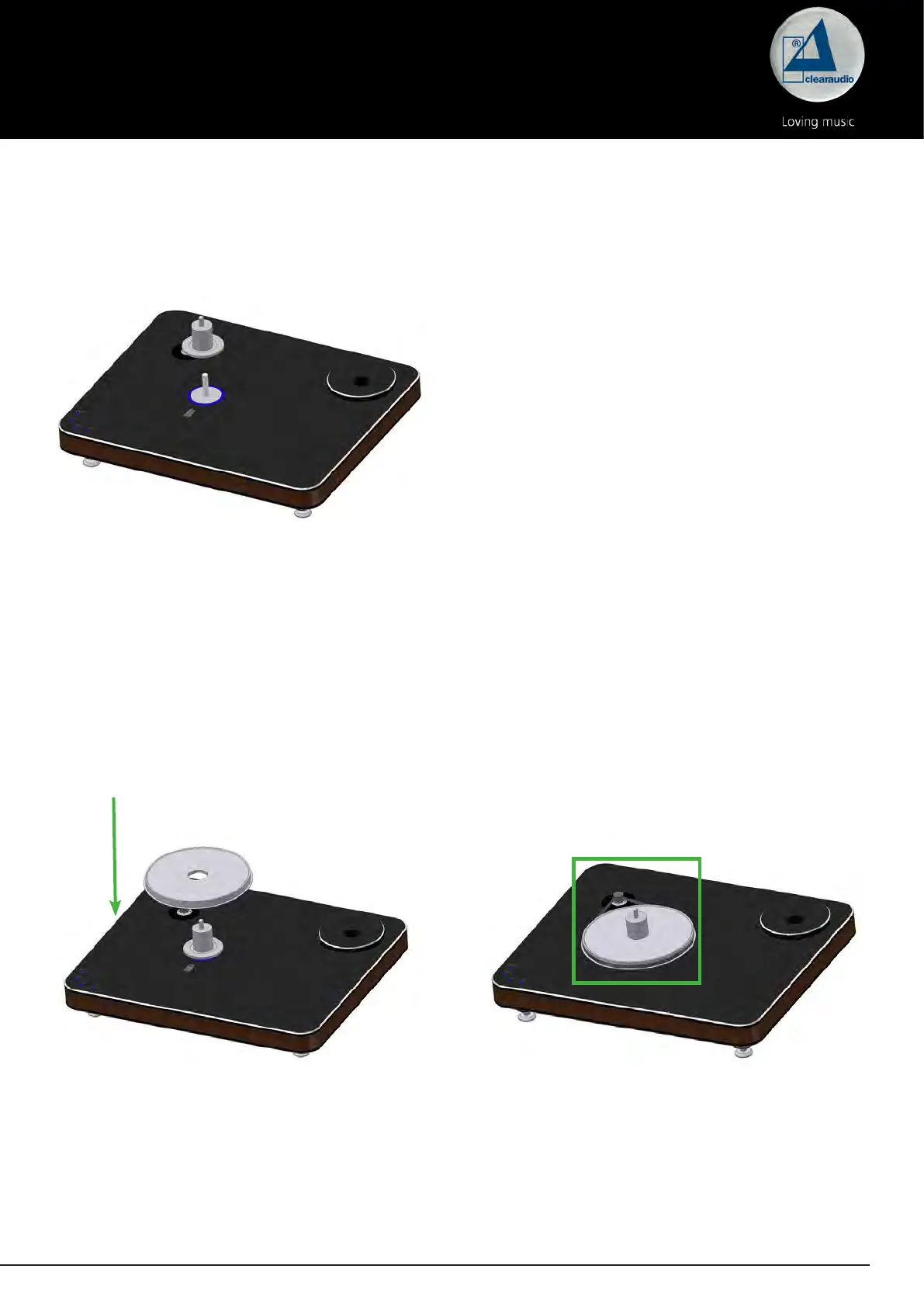

Pic. 6: Fitting the bearing upper part
2.5
Now you can set the sub-platter carefully onto the bearing.
First remove the security mat on the backside of the sub-platter (security tape for OSC - graduated
collar (Optical Speed Control)).
To avoid any damage, make sure you slide the sub-platter slowly and carefully onto the bearing.
After that, take the included belt and place it around the motor and the sub-platter.
At this point the sub-platter will be higher than the pulley. This is normal, as the CMB requires the
weight of the platter to fully engage it.
Pic. 7: Setting the sub-platter
Pic. 7.1: Placing the belt
