In s t a l l a t I o n Gu I d e 11

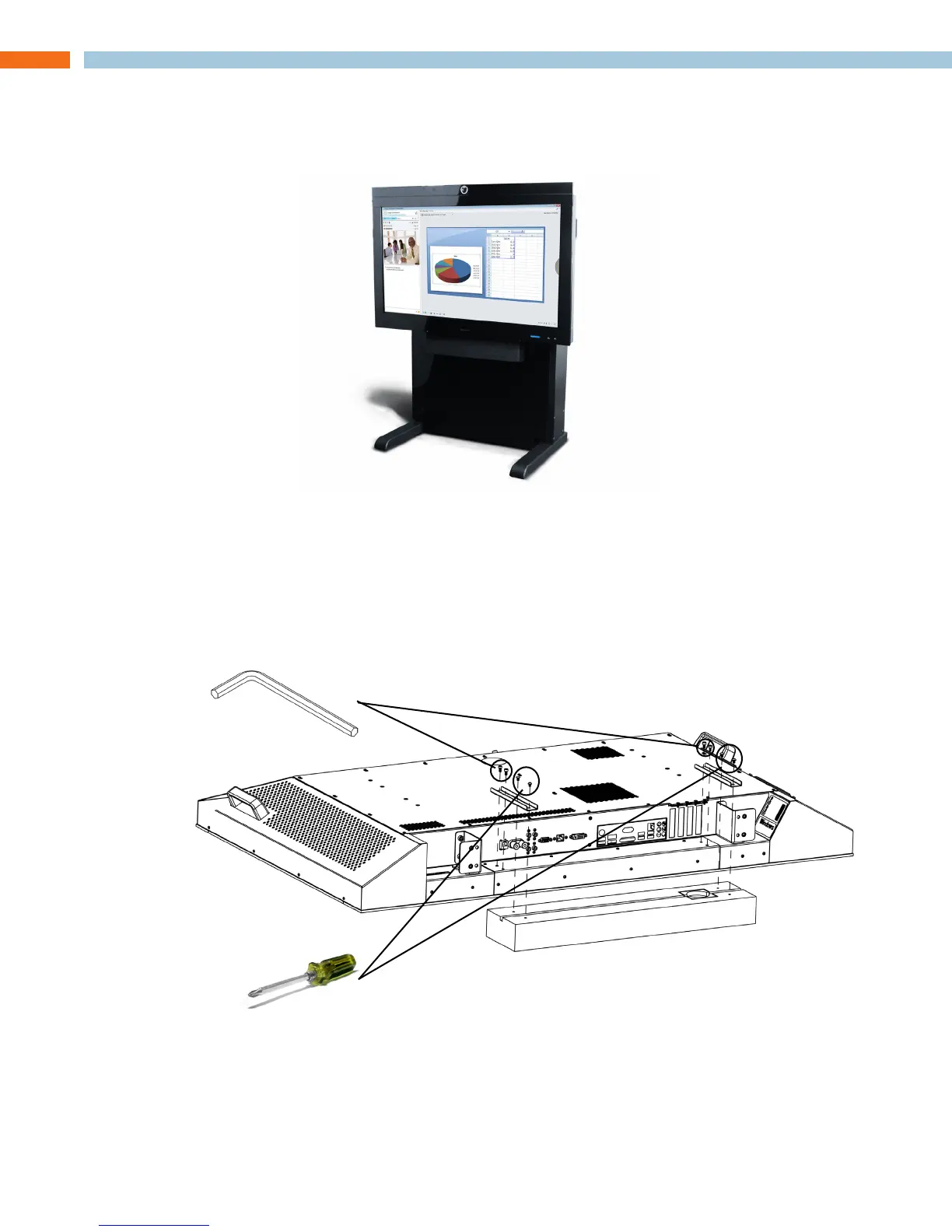

MEDIA STAND ASSEMBLY OVERVIEW
Refer to Collaborate Media Stand Assembly Guide for detailed information on assembling the
Collaborate Media Stand and mounting the Collaborate Console onto it.
so u n d B a r In s t a l l a t I o n
Using the Long Soundbar Mounting Bracket, follow the mounting instructions for installing the
ClearOne Soundbar in the Single Foot Stand Assembly section of this manual for mounting the
ClearOne Soundbar to the Collaborate Media Stand.
For installing the monitor onto the Media stand it is recommended to mount the bracket and speak-
er first, then attach the speaker wires for the Collaborate Console before installing the monitor onto
the Media stand.
hd ca m e r a In s t a l l a t I o n
Follow the mounting instructions for installing the HD Camera in the Single Foot Stand Assembly
section of this manual for mounting the camera onto the Collaborate Media Stand.
*Product shown with optional Camera Bezel.
3 mm
