Clevo D900T - Mainboard Overview - Bottom (Key Parts)

Introduction
1 - 10 Mainboard Overview - Bottom (Key Parts)
1.Introduction

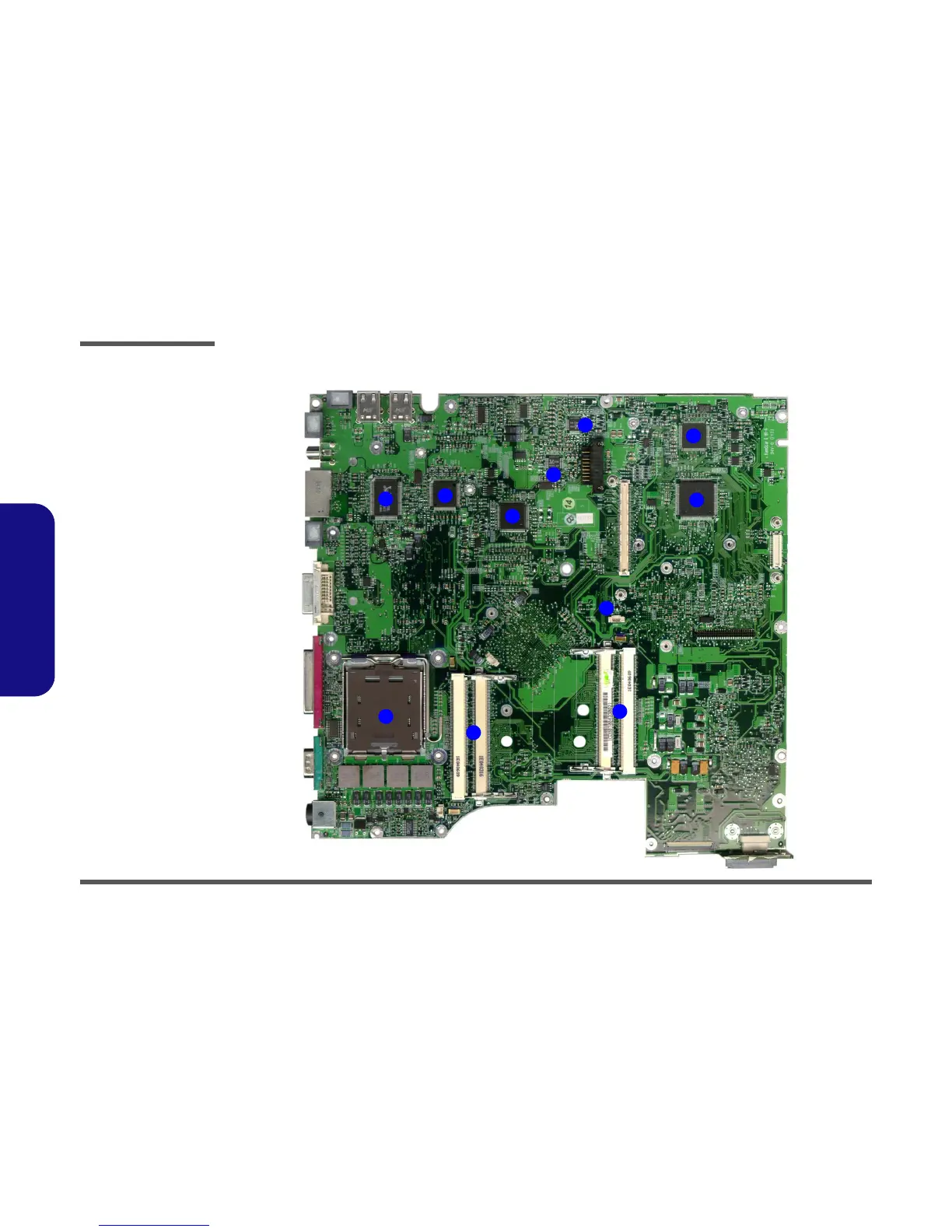

Mainboard Overview - Bottom (Key Parts)
Figure 1 - 6
Mainboard Bottom
Key Parts
1. LGA775 CPU
Socket (no CPU
installed)
2. Memory Slots (no
memory installed)
3. Card Bus
PCI-1410
4. LPC H8
5. Audio Codec
6. NS87393 LPC SIO
7. 1394a
TSB43AB22
8. GigaLAN
RTL8110SBL
1
2
3
5
4
7
2
5
6
7
8
